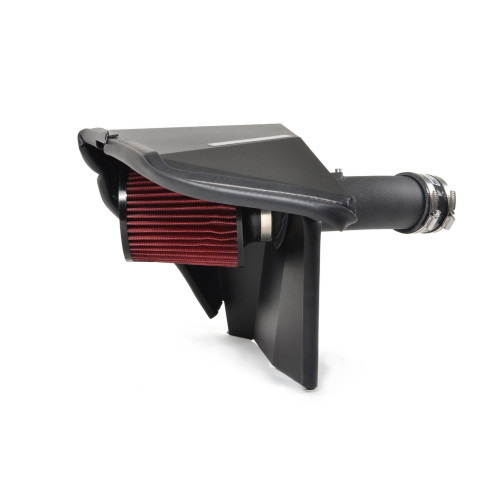

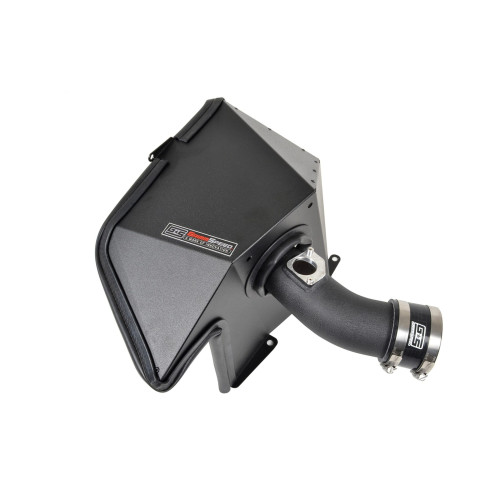

GRIMMSPEED INTAKE SYSTEM - 04-07 WRX/STI, 02-05 WRX, 04-08 FORESTER XT

Finally a GD intake with the looks to match its performance.

It’s no secret that GrimmSpeed intakes feature performance and aesthetics that lead the pack.  With years of design theories and knowledge gained from our successful intake program, we have developed solutions that increase power and are very easy to install and tune.  The only thing we were missing was an intake system for early models, and after nearly two years of development and testing we are extremely proud to offer what we feel is the best intake for your 2002-2007 Subaru WRX and STI, and 2004-2008 Subaru Forester XT.

Quick Specs

Hybrid Cold Air/Short Ram Design - Combining the advantages and eliminating the negatives of both traditional intake designs

Air straightener – A key component for accurate and consistent MAF sensor readings.

Custom reusable high flow air filter - Integrated velocity stack entrance smooths incoming air

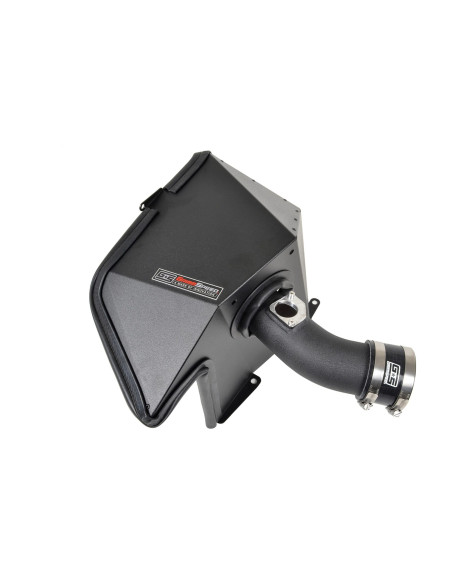

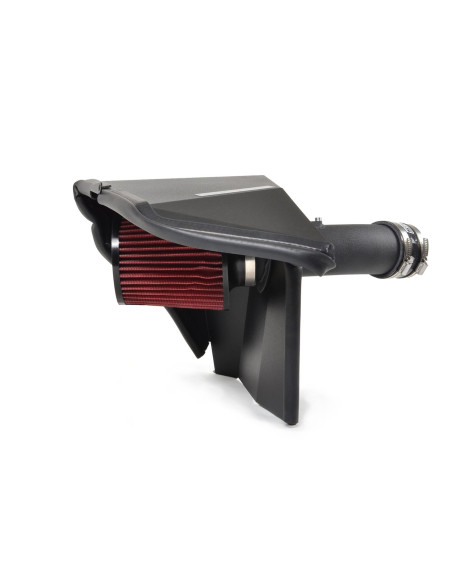

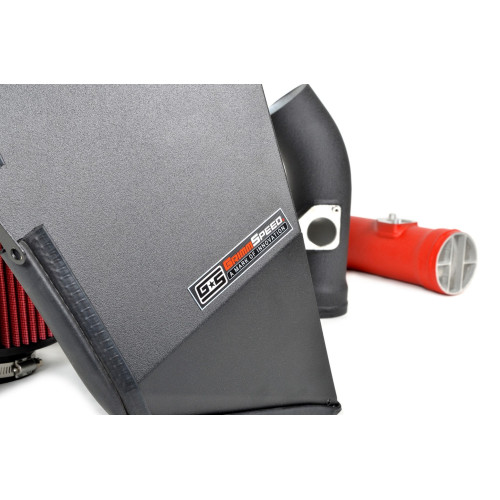

StealthBox Heatshield – Our signature heatshield design which provides cool air while hiding ugly components

Made in the USA - Right here in Minnesota, in fact

40 min Installation - Extremely simple with our written and video guides

Design

Our design requirements for this intake are similar to our others: the intake should reduce as much restriction as possible, it should be easy to tune and accurately measure incoming airflow, it should properly filter out potentially harmful particles, and it should look like something you’re proud to have in your engine bay.

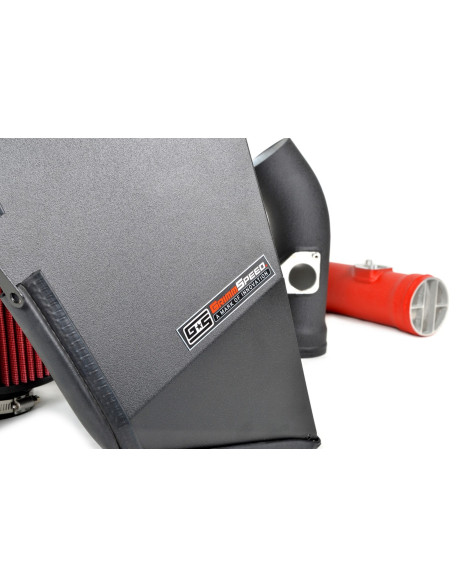

We designed this intake to meet these goals by using only minimal bend angle and pipe length which helps to decrease restriction.  Additionally, our low restriction washable air filter helps here too, while still filtering particles down to 5 microns.  We have also incorporated an air straightener into our design, an invaluable feature that was not utilized on the OEM airbox until later models.  Finally, we have continued our “StealthBox” heatshield design, utilizing it to not only keep hot air away from the air filter, but to cover up unsightly components such as the ABS pump.

Less obvious features of this intake include the location of the air filter.  Specifically that we made sure that the filter is not close enough to the ground such that water/hydrolocking is a concern.  The heatshield also contains provisions to mount the factory clips that hold the two coolant hoses that would traditionally mount to the OEM airbox. This keeps them out of the way and maintains a clean aesthetic.  The design of the heatshield also acts to hide the power steering pump reservoir, but does not hinder inspection or filling.  Overall what is accomplished is a true hybrid of traditional Cold Air Intakes and Short Ram Intakes, with all the advantages and none of the compromises.

This engineering study from our 08-14 design above illustrates the importance of understanding how air moves within the entire intake system. The figure shows how the GrimmSpeed intake design compares to other intake designs with respect to MAF placement and how that affects airflow readings. Since the MAF sensor samples the velocity of incoming air to measure flow in the center of the tube, having an accurate velocity profile at the sensor is the only way to accurately measure airflow.  Even though the diameter of our intake is the same as the OEM airbox that alone does not guarantee accurate readings.  The position and clocking of the MAF with respect to the entire system is also very important.  All of these seemingly small details end up being extremely important to how the intake affects how the incoming air is measured by the ECU.

Materials

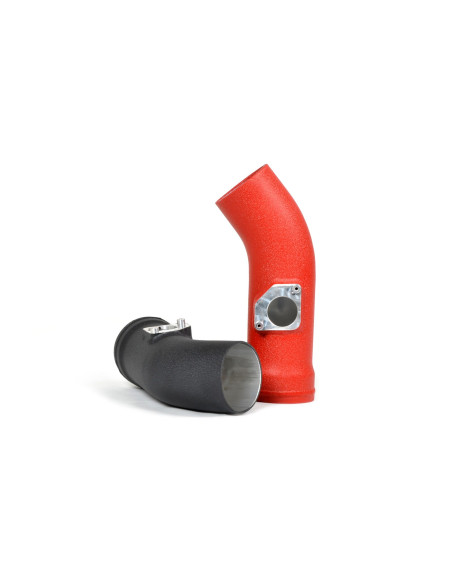

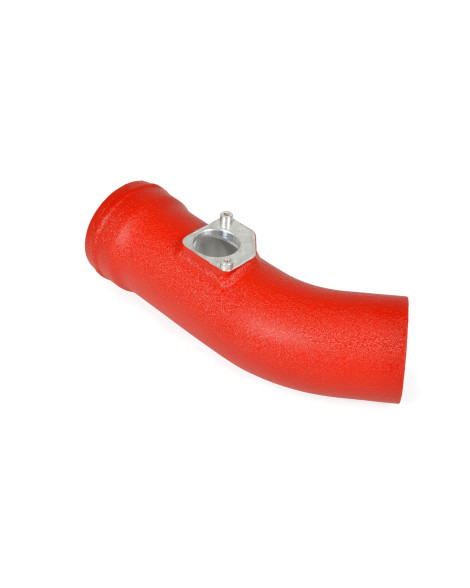

In true GrimmSpeed fashion, no corners were cut in the fabrication of each and every one of these intakes. The aluminum heat shield is laser cut, CNC bent and riveted together before receiving a heavy duty black texture powdercoat. MAF flanges are CNC machined from 6061 aluminum and the intake tube is fabricated from 5052 aluminum and CNC bent.  The air straightener is laser cut from 6061 aluminum as well, and tumbled before the entire assembly is TIG welded by our expert welders. After welding, each tube receives our heavy duty wrinkle powdercoat and is inspected and cleaned to ensure maximum performance and reliability.

Performance and Tuning

At GrimmSpeed we love tuners and we like to make sure they love us back. Our intakes are notoriously easy to tune, and this one is no different.  The consistency of the airflow through the MAF sensor makes this intake very predictable and is as easy to tune as the stock airbox. While pro-tuning is always recommended, the Cobb OTS AccessPort Maps can sometimes provide a safe temporary alternative based on your vehicle and level of modification.

Dyno testing was completed on a 2006 WRX, equipped with a GrimmSpeed 3-Port EBCS, Catted Downpipe, EWG Up Pipe and TMIC, being force fed by a VF39 on 91 octane.

We used a testing methodology to show a difference between how a change to only the intake affects the power output, boost, and air to fuel ratios.  The car was first equipped with a Cobb OTS Stage 2 tune and was modified only for the VF39 and external wastegate.  The airbox was OEM, but with a K&N drop in filter.  The tune was then verified and ran multiple times for a boost target of 18psi and an AFR of 11:1.  Next, we installed the GrimmSpeed intake and performed a dyno pull.  As expected, the tune was a little too rich, so the tuner adjusted fueling to compensate.  The goal was to make the exact same AFR as our OEM airbox pulls, and the tuner accomplished this in only three total pulls on the dyno.

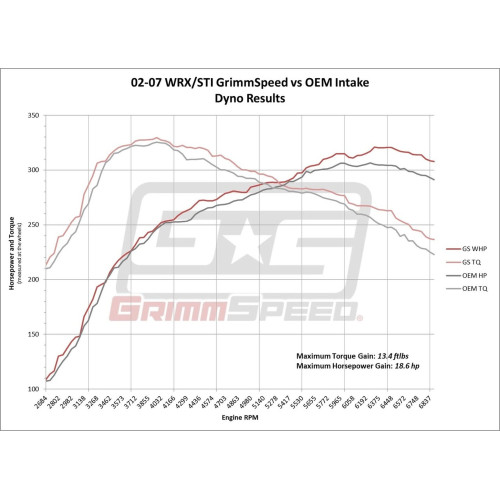

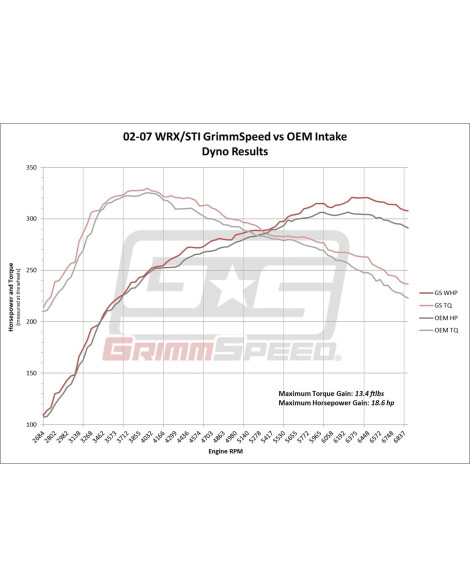

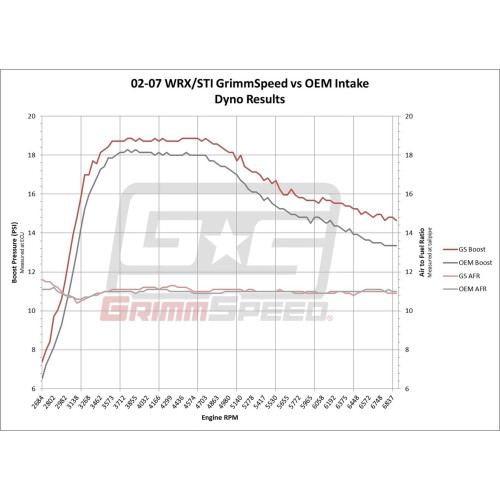

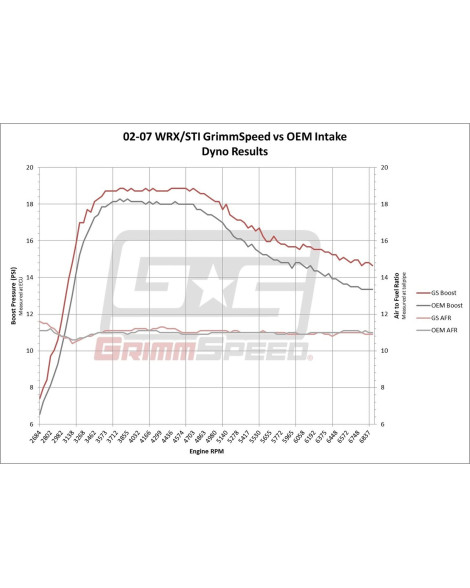

The result of this pull, with absolutely no changes to the map other than adjustments to match AFR, was an increase in horsepower and torque nearly everywhere in the entire RPM range.  There are maximum gains of over 13 ftlbs and 18 hp, as shown in the chart to the left.  The chart on the right demonstrates that the design of the GrimmSpeed intake system has decreased restriction over the stock system (even with an aftermarket drop in filter).  This chart shows that while the AFRs for the pull are exactly the same, the gains in peak boost have increased by almost .75psi.  Even more important is the increased boost at redline of 1.5psi.  An increase in boost from only the intake change means that it has removed that much restriction from the intake system.  Just looking at the boost curve shows that these relatively small turbos start to run out of breath at higher RPMs, and that the much needed increase in boost that the GrimmSpeed intake creates results in a substantial power gain all the way to redline.

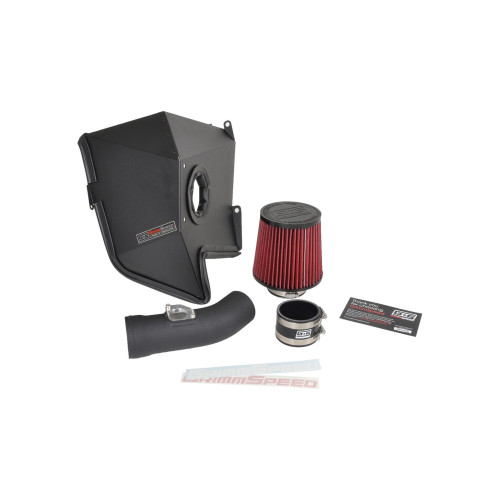

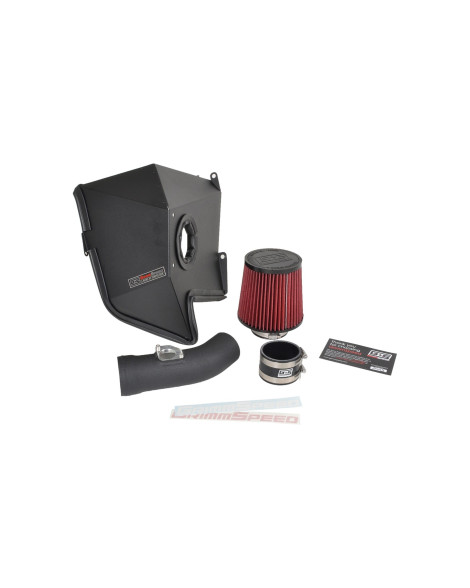

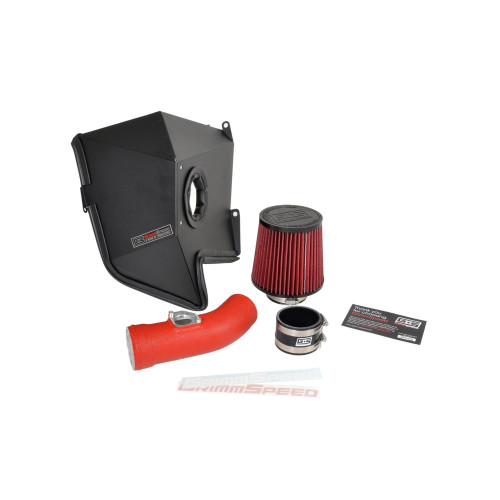

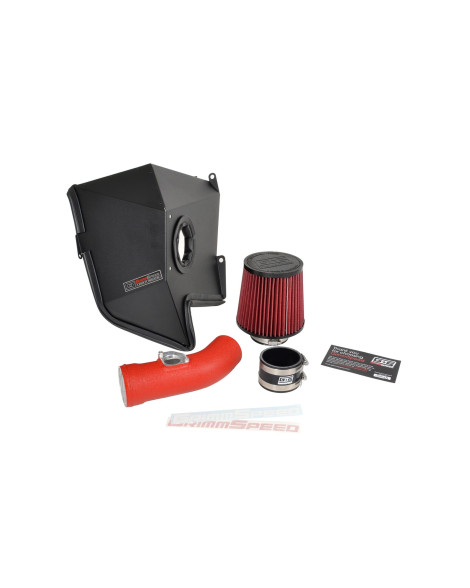

Includes everything

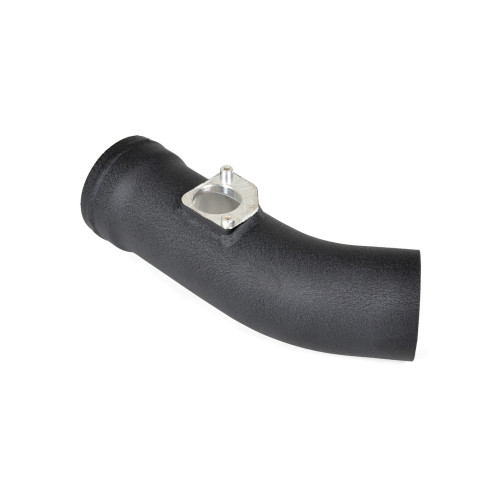

1x Intake Tube

1x High-flow Dry Filter

1x Silicone Hose Coupler

1x Heat Shield Assembly

3x Hose Clamps

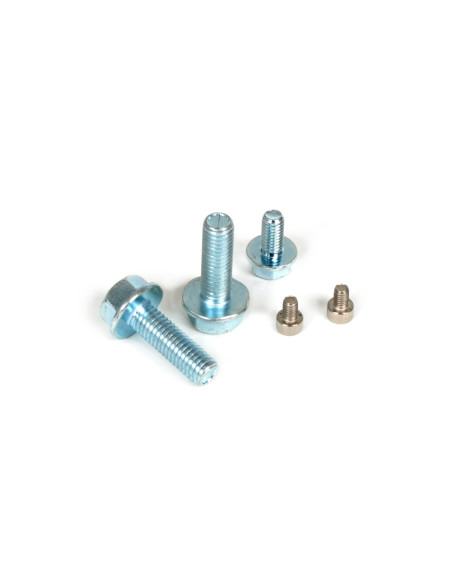

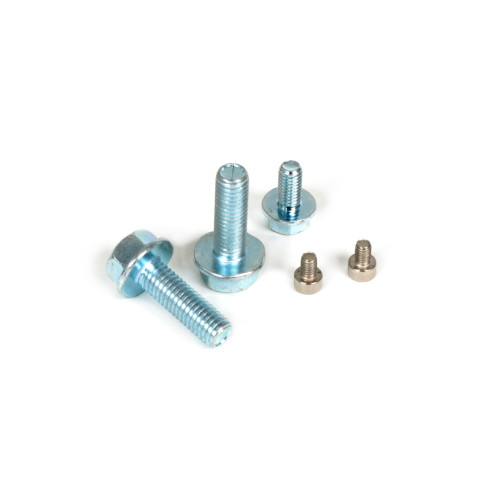

2x MAF Flange Screws

3x Precut Rubber Sealing Strip

3x Airbox to Chassis Bolts

Fitment

2002-2007 Subaru WRX

2004-2007 Subaru STI

2004-2008 Subaru Forester XT

Part Numbers

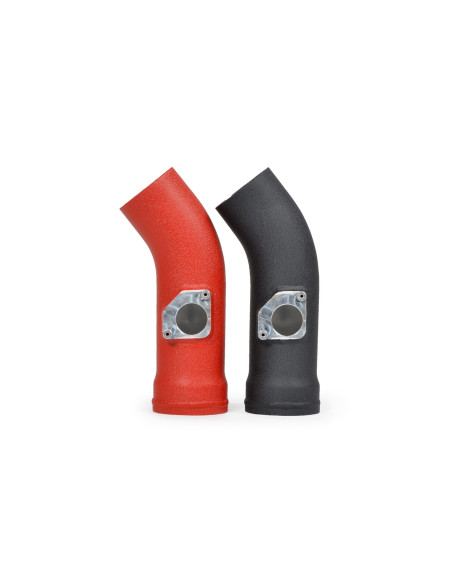

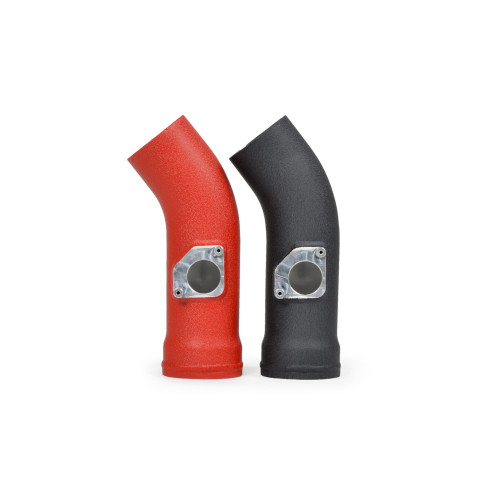

060074 - Intake 02-07 WRX/STI, 04-08 FXT - Black

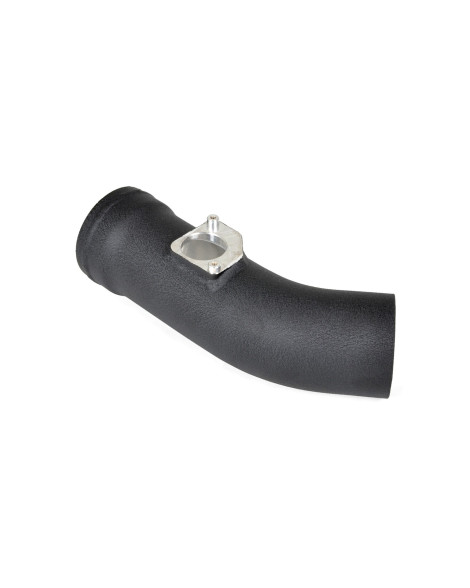

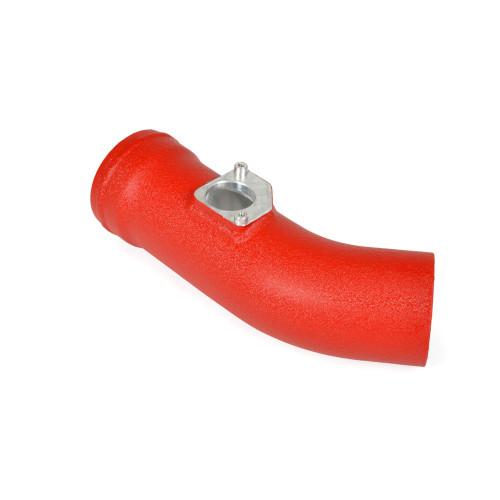

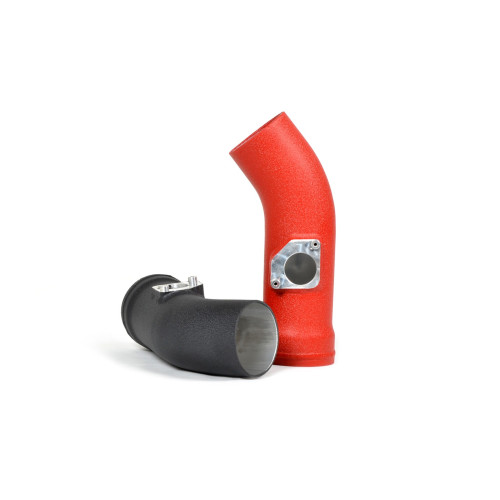

060075 - Intake 02-07 WRX/STI, 04-08 FXT – Red

Install Video
