Tomei Expreme Ti Full Titanium Muffler Cat-Back Exhaust for Subaru WRX/STI GDB E-G JDM - TB6090-SB01B

MORE POWER, LESS WEIGHT, DRAMATIC CHANGE FOR IMPREZA GDB

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.

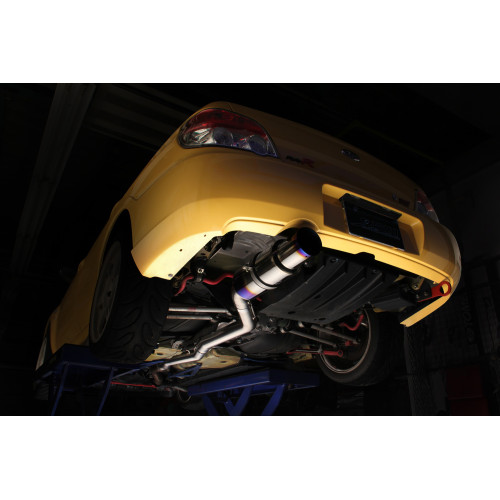

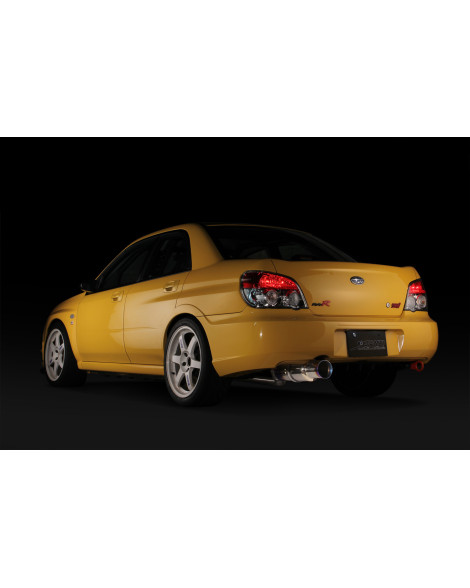

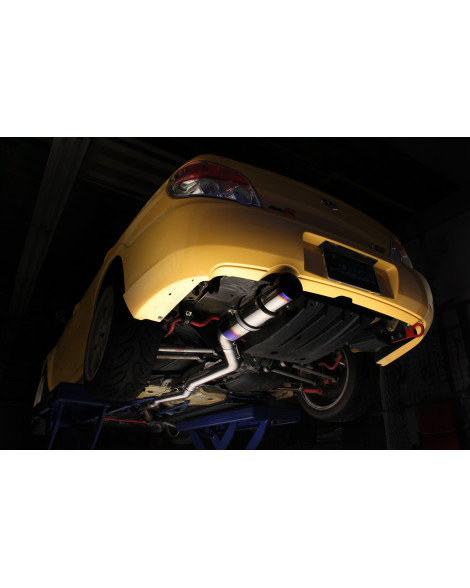

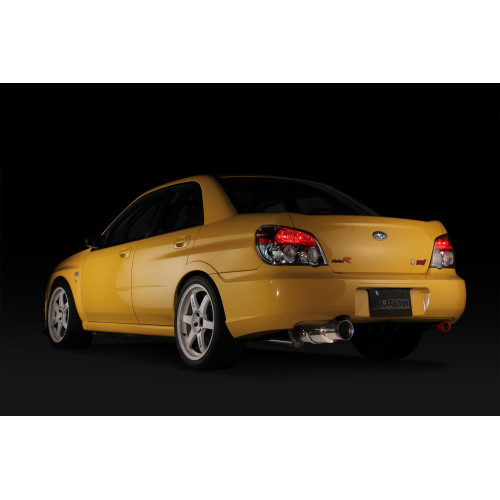

GDB APPLIED G in pictures 2 & 3.

Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.

MATERIAL TITANIUM

MAIN PIPE DIAMETER 80

MAIN PIPE THICKNESS 1mm

SILENCER DIAMETER 152

SILENCER THICKNESS 1mm

EXIT DIAMETER 115

EXIT THICKNESS 1mm

FLANGE THICKNESS 2mm

WEIGHT 5.1kg

10.4kg (22.93 lbs) WEIGHT DROP!

RACING LAYOUT

In order to achieve the best performance possible from this product. We have designed the layout of this exhaust system to be as straight as possible. By minimising bends and the angle of the bends, we were able to maximise the exhaust gas flow efficiency.

3 SECTION PIPE ASSEMBLY

The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.

HIGH DURABLE GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.

HIGH QUALITY

Only the racing layout muffler design in full Titanium can produce the exhilarating race sound that is second to none.

BEST VALUE & PERFORMANCE

The design targets were strictly for performance use and for the best value for money for our end users.

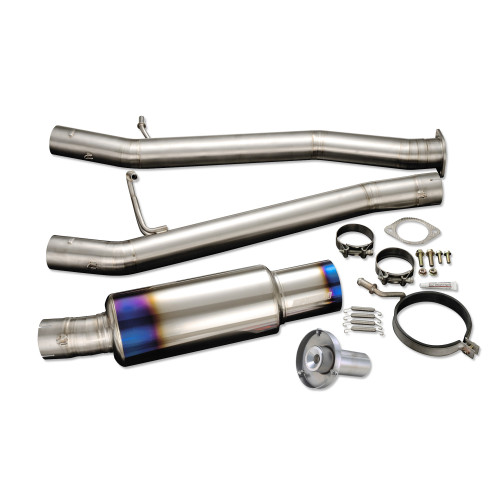

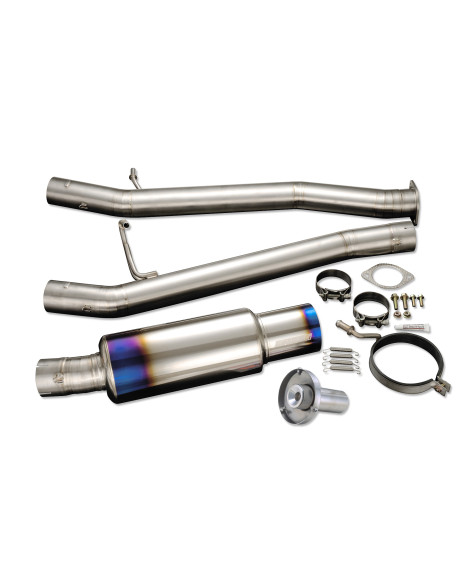

KIT CONTENTS

MAIN PIPE A (1)

MAIN PIPE B (1)

SILENCER ASSY (1)

STD FRONT PIPE GASKET t=4 (1) * 1

STD FRONT PIPE FLANGE BOLT M8 L=35 (2) * 1

STD FRONT PIPE FLANGE NUT M8 (2) * 1

AFTERMARKET FRONT PIPE GASKET t=2 (1) * 1

AFTERMARKET FRONT PIPE FLANGE BOLT M10 L=35 (2) * 1

AFTERMARKET FRONT PIPE FLANGE NUT M10 (2) * 1

CLAMP BAND (2)

SPRING (4)

SILENCER BAND (1)

SILENCER BAND RUBBER (1)

FLANGE BOLT M8 L=25 (1)

FLANGE NUT M8 (1)

FLANGE BOLT M8 L=55 (2) * 2

FLANGE NUT M8 (2)* 2

SOUND REDUCER ver.2(1)

BOLT SMOOTH PASTE (1)

* 1 Excluded from the JDM kit.

* 2 Excluding from the USDM kit.

Additional bolt holes may be required when using the sound reducer ver.2 .

GDB E/F/G for JDM Part No. TB6090-SB01B
