Whiteline F&R Sway Bar Package for Mazda 3 MPS Mazdaspeed 06-14

Engineered to 'Activate More Grip', BMK001 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 27mm 2 point adjustable front sway bar and 27mm 2 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.

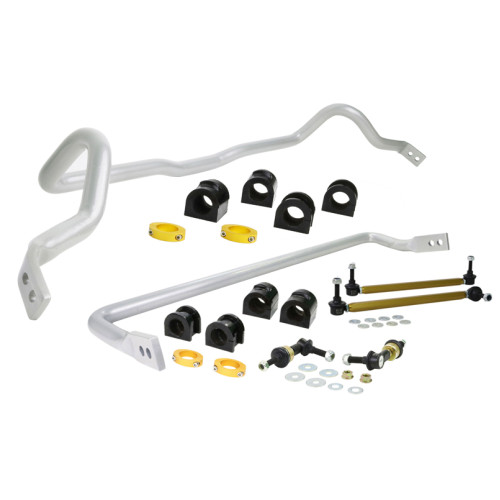

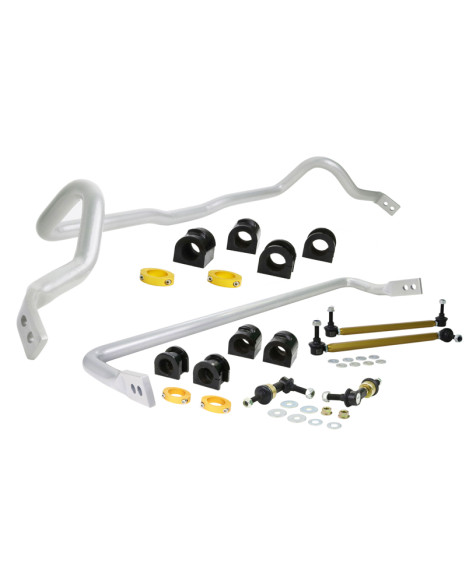

Kit Contents:

2 Sway Bars, 2 Links, 8 Bushings, 4 Lateral Locks, 16 Washers, 2 Nuts

Contents

Kit Contains;

BMF57Z, BMR88Z, KLC151 and KLC185 - essential to 'Activate more grip'

Front Sway bar - 27mm 2 point adjustable

Rear Sway bar - 27mm 2 point adjustable

Front Sway bar - link kit

Rear Sway bar - link kit

Upgrading the sway bars on your vehicle will;

Minimising excess body roll

Dramatically improving handling performance

Tyre life

Steering response

Braking stability and response

No compromise to ride quality, NVH or comfort of the vehicle

We recommend fitting this kit as a complete handling upgrade.

Features

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.

PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.

Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Protective E-Coat coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Featuring premium anodized alloy materials, providing a long-lasting protective barrier to corrosion and wear but they look great too.

Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Sway bars are principally designed to reduce body roll or sway while cornering.

Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.

Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.

Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.

DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.

Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.

By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.

Manufactured from high quality alloy and include heavy duty steel ball joints ensuring maximum strength and durability.

Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.

Heavy duty ball joint ensures optimum durability & steering predictability.

This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

Kit Specifications

Diam(mm) Frt=27 Rr=27

Diam(in) Frt=1 3/32" Rr=1 3/32"

Diam(in) decimal Frt=1.062 Rr=1.062"

Material Solid Spring Steel

Adjustment Frt=2 point adjustable & Rr=2 point adjustable

Incl Front Links Yes

Incl Rear Links Yes

Notes Sway bar vehicle kit includes front & rear sway bars and links

BMK001

Vehicle Applications

BMK001 is suitable for the following vehicles.

MAZDA MAZDA3 MPS 2006-2014 - MAZDA3 BK/BL MPS
