Kit Contents

Includes everything necessary for installation!

Manual Paddle Valve Control System 27666

Front kit 75546 (75547 M3 series)

Rear kit 75646

Detailed instruction manual

And don't forget Air Lift's 1 year warranty and excellent customer support!

Part Number: 77747 (M3 models)

Front Kit

Includes the following items:

Pair of front air-over struts w/ 30-level damping adjustment

Red anodised aluminium adjustable camber plates

Braided stainless steel leader hoses

Damping adjuster knob

Height adjustment wrench

1/4" & 3/8" PTC fittings

All mounting hardware

Detailed instruction manual

Part Number: 75547 (M3 models)

Rear Kit

Includes the following items:

Pair of rear air-over shocks w/ 30-level damping adjustment

Red anodised aluminium upper mounts

Braided stainless steel leader hoses

Damping adjuster knob

Height adjustment wrench

1/4" & 3/8" PTC fittings

All mounting hardware

Detailed instruction manual

Part Number: 75647 (All models)

Performance Data

Front drop 100mm/3.9”

Rear drop 100mm/3.9"

High rate progressive air springs

Large range of damping adjustment

Racetrack tuned handling

Superior ride quality

Easy install

Tech Specification

30-level adjustable damping

Monotone, threaded-body front struts, rear shocks

Adjustable camber plates

Bright red anodised aluminium end caps

Black chromed steel strut bodies

Black powder-coated lower mounts

Model Fitment

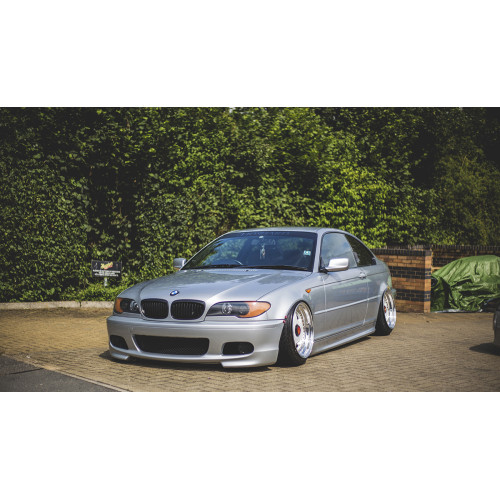

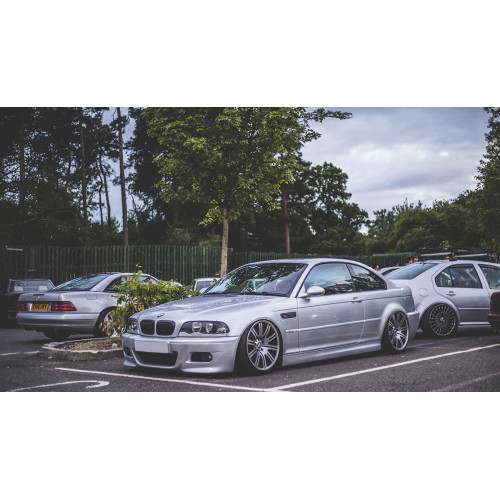

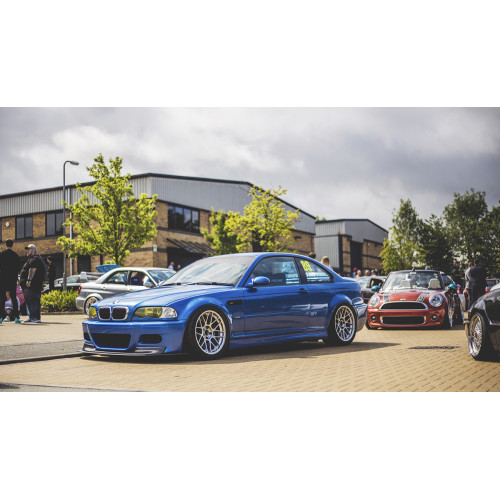

All worldwide 2WD e46 Chassis Vehicles 1999-2006 Models:

M3 E46– All Models
