Pedders Lowered Suspension Kit. Vauxhall Monaro CV8 803216

Pedders Lowered Suspension Kit. Vauxhall Monaro CV8

Lower your car for improved feel, handling and a more aggressive stance.

This Pedders suspension kit is for those that are wanting an improvement in both handling, looks and performance that replaces the standard springs and dampers with performance items.

The ride height of the car is lowered for a more aggressive stance. Ride and handling is improved. In particular, the "detached" from the road feel is banished for greater confidence. Note that this kit is not adjustable in terms of ride height and damping. If you’re looking for that great lowered look on your vehicle whilst still retaining good levels of comfort, you can’t go past Pedders SportsRyder Suspension Kit

The Pedders Lowered Suspension kit will lower your car by approx. 20--25mm. Please note, at the front this is relative to your car when new. The top mounts on Monaro are prone to deformation which in extreme cases can allow the front to come down by up to 15mm. We strongly recommend replacing the top mount when replacing the suspension, so please take note of the actual installed heights quoted below.

This kit is supplied with urethane spring spacers for the rear. This allows you to “trim” your rear ride height to achieve exactly the stance you are looking for relative to the front.

This kit utilises our “black” shocks and retains excellent levels of ride comfort.

For those looking for a greater lowering, and a firmer ride, please consider our Super Low kit, 803217.

Key features

Individually shock dyno tested as a complete suspension system mated to your existing O.E. hardware for quality assurance & performance.

The Pedders Lowered Suspension Kit 803216 kit will lower your CV8 Monaro by approximately 20-25mm.

Pedders SportsRyder gas struts are made from heavy duty twin-tube gas construction technology & heavy duty reinforced double welded mountings for long term durability.

The complete kit is a system designed and valved to work together. You will experience dynamic sports ride & handling that is suitable for daily driving as well as performance driving without a harsh ride.

All backed by our 2 Year / 25,000 mile warranty.

Vehicle Height Information

Front: 595mm with 18 inch wheels

Rear: 20-25mm lower than standard.

Notes: Heights should be measured as shown in the secondary picture.

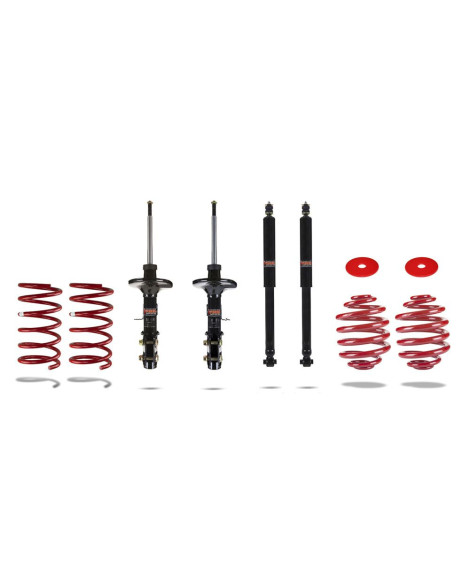

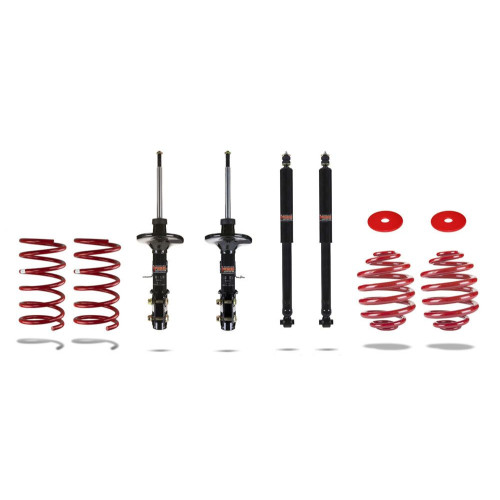

Contents of Kit 803216 (Pedders Part Numbers)

2151L x 1 - Front Spring Left

2151R x 1 - Front Spring Right

2643 x 2 - Rear Spring

8985L x 1 – Front Shock Left

8985R x 1 – Front Shock Right

8137 x 2 – Rear Shock

EP386/10 x 2 – Urethane Spring Spacer

Confirmed Applications

Holden      Monaro     2001-on, V2(VX), VZ, CV6 & CV8

Vauxhall    Monaro     2004 CV8

Vauxhall    Monaro     2005 CV8

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
