Pedders 1.75 Inch Lift Kit. Comfort Ride. With Assembled Foam Cell Struts. Isuzu D-Max 803408

Improved looks, and ground clearance.

Are you looking to raise your D-Max? Looking for more ground clearance?

Then Pedders Suspension have the solution for you.

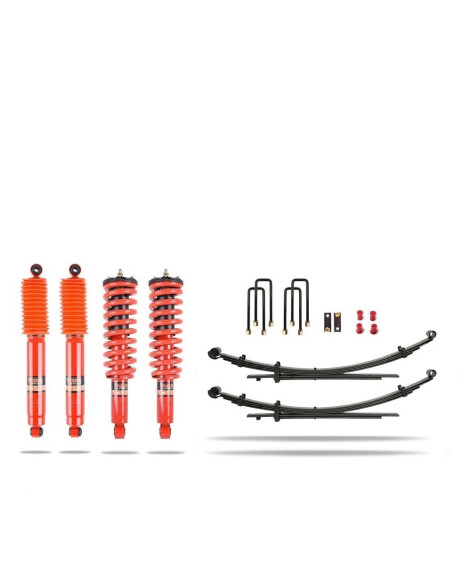

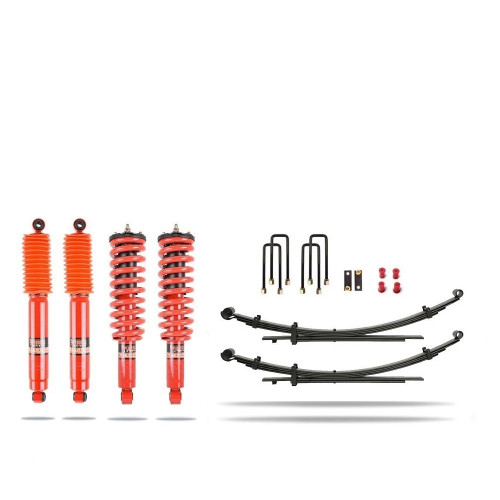

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Premium Lift kit is designed primarily to raise the vehicle and provide the best possible ride on vehicles that do not normally carry a great deal of weight. If you regularly carry heavy loads or tow a trailer, then consider one of our other kits. The exceptional compliance this kit offers alsao makes it very capable in off road conditions as well.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Excellent ride comfort

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: Approx 35mm higher than standard

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

Contents of Kit 803408 (Pedders Part Numbers)

807228 x 2 - Pedders Foam Cell Ezifit Front Strut

263102 x 2 - Pedders Rear Spring

151242 x 2 - Pedders Trakryder Foam Cell Rear Shock

EP8407 x 1 – Pedders Urethane Leading Eye Bushes

EP84003 x 1 - Pedders Urethane Lower Shackle Bushes

434008 x 4 - Pedders U bolt.

Confirmed Applications

Isuzu D Max        2021-on 4WD (UK & EU Markets) 1.9lt 4cyl TD

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
