Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts. Isuzu D-Max 803244

Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts. Isuzu D-Max

Improved load carrying, towing ability and ground clearance.

Do you use your D-Max for load carrying and/or towing?

hen Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our first level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your D-Max currently sits low at the rear when towing or load carrying, and you operate in this condition all the time, then this kit offers a significant improvement compared to the standard vehicle.

This kit is for those who run their vehicle heavily laden all the time. Operation of the vehicle unladen with this kit is not recommended and will result in a less than desirable ride. Pedders recommend a MINIMUM of 300kg load in the rear at all times. Bear in mind however that an average canopy and tow bar will be 130-150Kgs.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Heavy Duty Kit

40mm Lift

Improved load carrying and towing

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 800mm with 18 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

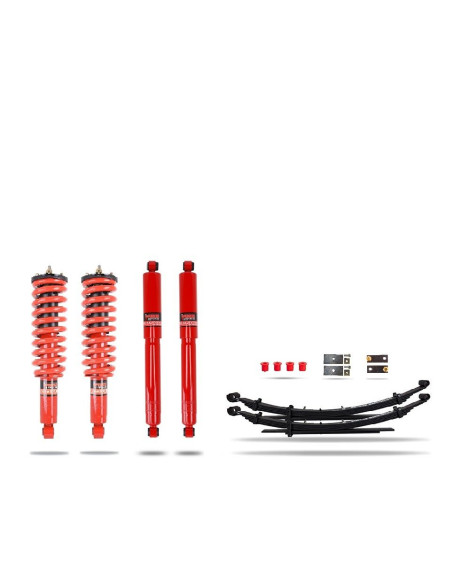

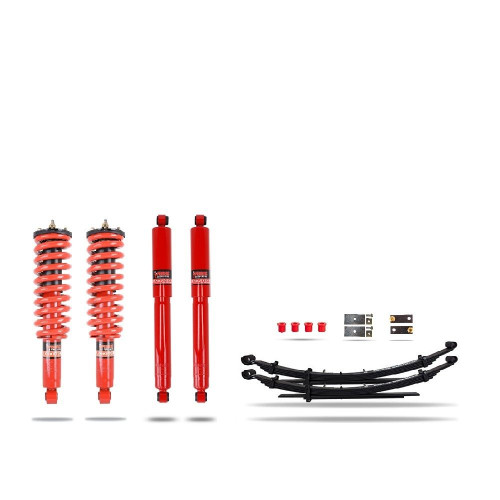

Contents of Kit 803244 (Pedders Part Numbers)

807212 x 1 - Pedders Foam Cell Ezifit Front Strut

264002 x 2 - Pedders Heavy Duty Rear Spring

153231 x 2 - Pedders Trakryder Foam Cell Rear Shock

EP8407 x 1 – Pedders Urethane Leading Eye Bushes

EP84003 x 1 - Pedders Urethane Lower Shackle Bushes

4382 x 4 - Pedders U bolt.

Confirmed Applications

Isuzu D Max        2012-17 2WD Hi-Ride

Isuzu D Max        2012-17 4WD 2.5TD

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
