Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts & Additional Airbags. Isuzu D-Max 803245

Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts & Additional Airbags. Isuzu D-Max

Improved load carrying and towing ability and ground clearance.

Do you use your D-Max for load carrying and/or towing?

Then Pedders Suspension have the solution for you.

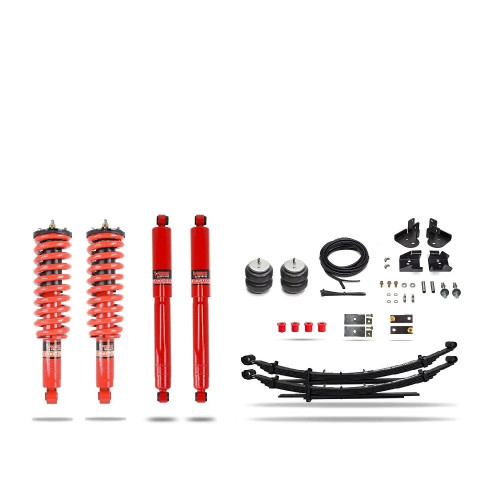

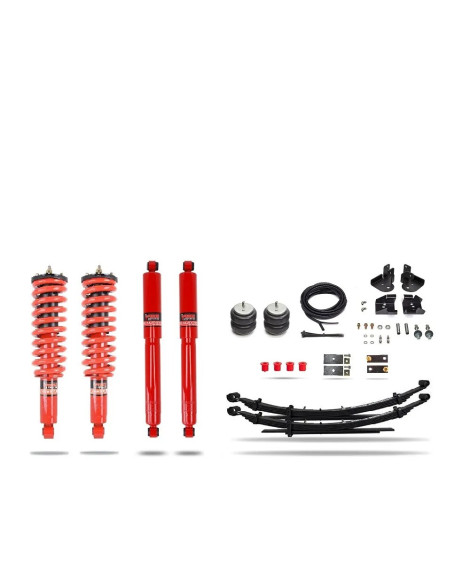

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them. Additionally I has supplementary air bags.

This kit is our second level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your D-Max currently sits low at the rear when towing or load carrying, but you still also operate in the unladen condition, then this kit offers a significant improvement compared to the standard vehicle.

This kit is for those who subject there vehicle to significant changes in load on a regular basis, and for whom the fully laden condition is greater than our Heavy Duty kit 803244 can accommodate and where a stiffer rear spring would introduce an unacceptably harsh ride in the unladen state..

Typical applications are vehicle used by window cleaners with a large water tank installed which will vary from empty to full.

This kit improves the load carrying ability compared to the standard D-Max Ranger rear spring whilst still allowing operation in the unladen state. However, our rear spring, combined with our specially valved shock, allows us to retain a level of ride comfort unladen comparable to the standard vehicle. For more information on how we achieve this, please see our technical pages.

Whilst the rear spring in this kit is heavier duty than the standard spring there is a limit to what in can support. To assist with this, this kit comes with supplementary air bags. These are installed between the rear leaf springs and the chassis rails. The kit as supplied requires these to be inflated with an airline (the same as used to inflate your tyres) when heavily laden in order raise the rear of the vehicle to an acceptable height. An “on board” air option is available by purchasing our kit 499000.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, consider or Extra Heavy Duty kit 803248.

After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Heavy Duty Kit

Improved load carrying and towing

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

Air Assist air bag system

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 840mm with 17 inch wheels

Rear: Approx. 40mm higher than standard.

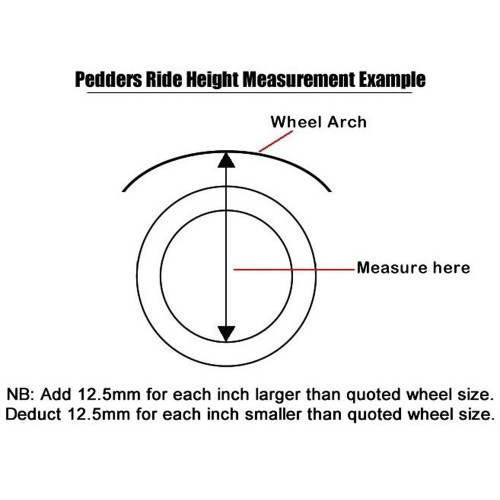

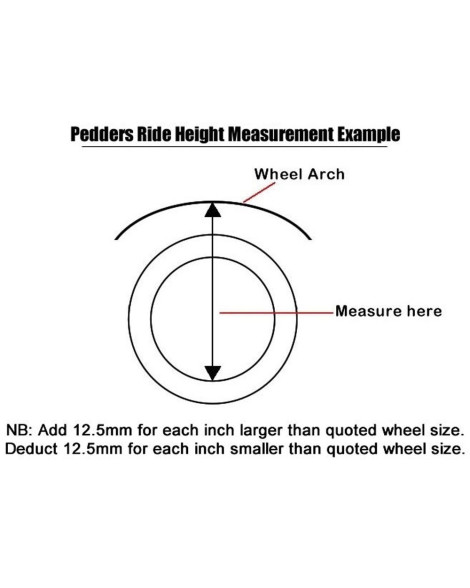

Notes: Heights should be measured as shown in the secondary picture.

Contents of Kit 803245 (Pedders Part Numbers)

807212 x 1 - Pedders Foam Cell Ezifit Front Strut

264002 x 2 - Pedders Heavy Duty Rear Spring

153231 x 2 - Pedders Trakryder Foam Cell Rear Shock

EP8407 x 1 – Pedders Urethane Leading Eye Bushes

EP84003 x 1 - Pedders Urethane Lower Shackle Bushes

4382 x 4 - Pedders U bolt.

494084 x 1 – Pedders Air Assist System

Confirmed Applications

Isuzu D Max        2012-17 2WD Hi-Ride

Isuzu D Max        2012-17 4WD 2.5TD

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
