Pedders 1.75 Inch Lift Kit. Isuzu D-Max 803112

Improved looks and ground clearance.

Are you looking to raise your D-Max?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Entry level Lift kit, and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 35mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 800mm with 17 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

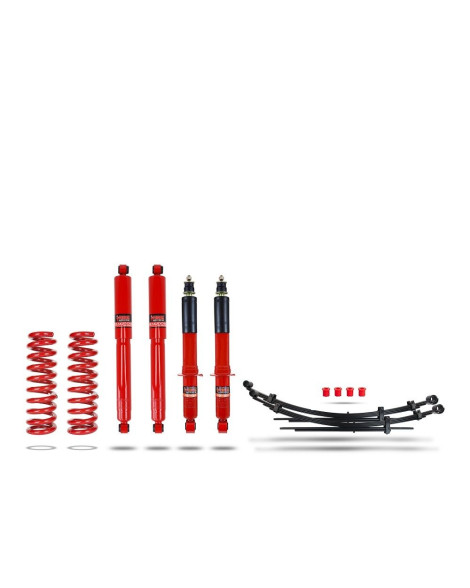

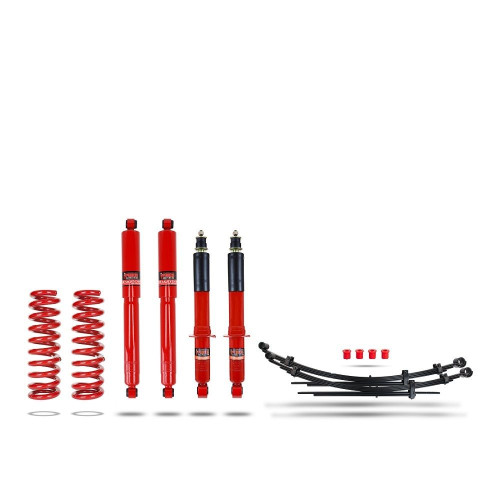

Contents of Kit 803112 (Pedders Part Numbers)

144340 x 2 - Pedders Trakryder Front Shock

280071 x 2 - Pedders Front Spring

263002 x 2 - Pedders Heavy Duty Rear Spring

151231 x 2 - Pedders Trakryder Rear Shock

EP8407 x 1 – Pedders Urethane Leading Eye Bushes

EP84003 x 1 - Pedders Urethane Lower Shackle Bushes

4382 x 4 - Pedders U bolt.

Confirmed Applications

Isuzu D Max        2012-17 2WD Hi-Ride

Isuzu D Max        2012-17 4WD 2.5TD

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
