Xtreme Stage 1 Clutch Kit 220ft/lbs for Mitsubishi Colt Ralliart CZT 2004-2012 KMI22015-1A

Specifications

Flywheel Step (mm) Flat

Clutch Disc Diameter (mm) 215

Clutch Disc Spline Count 28

Clutch Disc Spline Diameter (mm) 22

Disc Type Sprung

Friction Material Organic

Stage 1

Recommended Use Street

Clamping Force % Increase 28%

Torque (Nm) Inc FOS 300

Torque (ftlbs) Inc FOS 220

Spline Grease Included Yes

Transport Weight (kg) 9.1

Confirmed Applications

MITSUBISHI COLT CZC VI 2006.05-2009.07 1.5 Turbo (Z23) 4G15T 1468 Petrol 110 kW 150 BHP (2006.05 - 2009.07)

MITSUBISHI COLT VI 2004.09-2006.02 1.5 (Z27) 4G15 (16V) 1468 Petrol 72 kW 98 BHP (2004.09 - 2006.02)

MITSUBISHI COLT VI 2005.03-2012.06 1.5 CZT 4G15T 1468 Petrol 110 kW 150 BHP (2005.03 - 2012.06)

MITSUBISHI COLT VI 2006.09-2012.06 1.5 Ralliart (Z23) 4G15T 1468 Petrol 113 kW 154 BHP (2006.09 - 2012.06)

MITSUBISHI COLT VI 2010.02-2012.06 1.5 Ralliart R 1468 Petrol 132 kW 180 BHP (2010.02 - 2012.06)

MITSUBISHI COLT VI 2010.02-2012.06 1.5 Ralliart R 4G15T 1468 Petrol 120 kW 163 BHP (2010.02 - 2012.06)

SMART FORFOUR (454) 2005.05-2006.06 1.5 BRABUS (454.034) M 122.950 1468 Petrol 130 kW 177 BHP (2005.05 - 2006.06)

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 300Nm

Clamp load 700kg Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

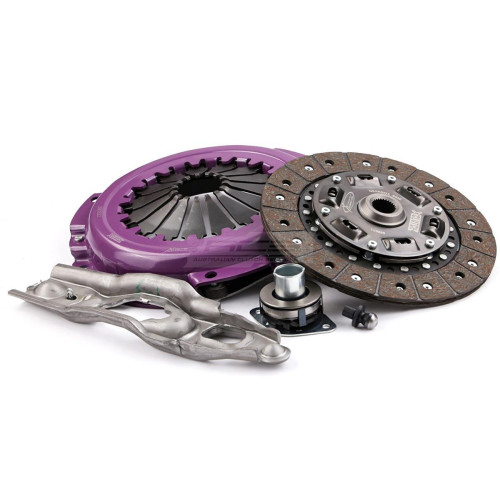

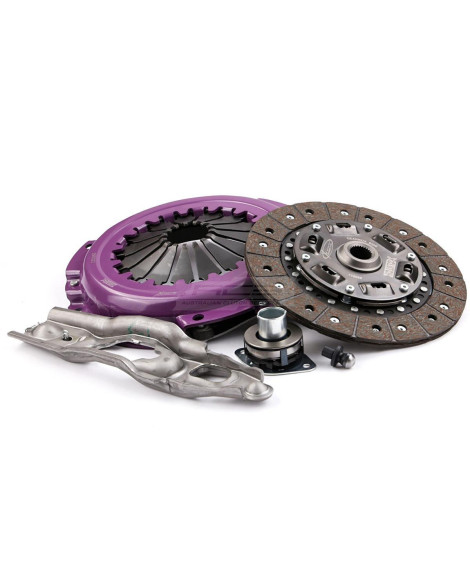

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
