Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Mitsubishi L200 803188

Improved load carrying and towing ability and ground clearance.

Do you use your L200 for load carrying and/or towing?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our heavy duty kit and is designed primarily to and improve its load carrying and towing ability. If your L200 currently sits low at the rear when towing or load carrying, then this kit offer a significant improvement compared to the standard vehicle.

This kit improves the load carrying ability compared to the standard L200 rear spring. Pedders recommend that the vehicle has a minimum of 200kg load at all times. Operation of the vehicle completely unladen will result in a less than desirable level of ride comfort.

This kit will raise the rear of the vehicle by approx. 20mm (see actual dimensions below) allowing better ground clearance. For those carrying very heavy loads, please also consider our Extra heavy duty options, 803189 and 803266. If you are looking for increased ride height, please consider our lift kit 803267.

These components replace the original items. No other modifications to the vehicle are necessary.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Improved load carrying and towing

Sintered Iron Piston Shocks with Large 45mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: N/A Rear: Approx 20mm higher than standard. Notes: Heights should be measured as shown in the secondary picture.

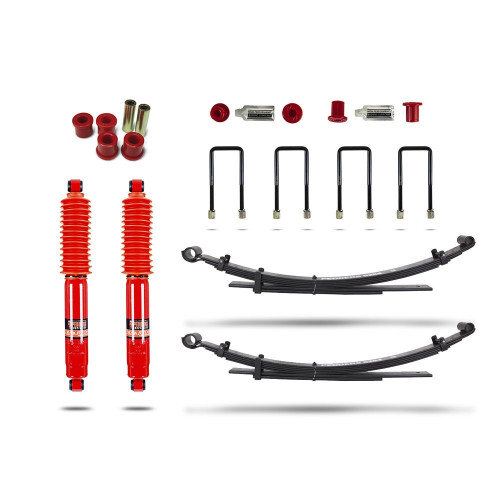

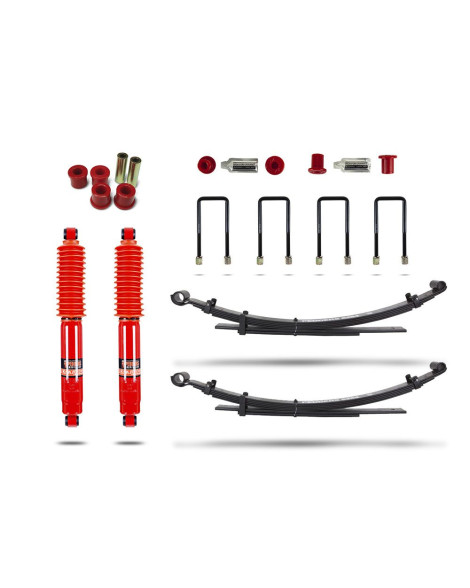

Contents of Kit 803188 (Pedders Part Numbers)

6233 x 2 - Pedders Heavy Duty Rear Spring

9546 x 2 - Pedders Trakryder Foam Cell Rear Shock

EP8327 x 1 - Pedders Urethane Leading Eye Bushes

EP192 x 1- Pedders Urethane Lower Shackle Bushes

4395 x 4 - Pedders U bolt

Confirmed Applications

Mitsubishi L200 2WD 2006-2009 ML (Coil over Frt)

Mitsubishi L200 2WD 2008-2015 MN

Mitsubishi L200 4WD 2006- 2009 ML (Coil over Frt)

Mitsubishi L200 4WD 2009-2015 MN

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
