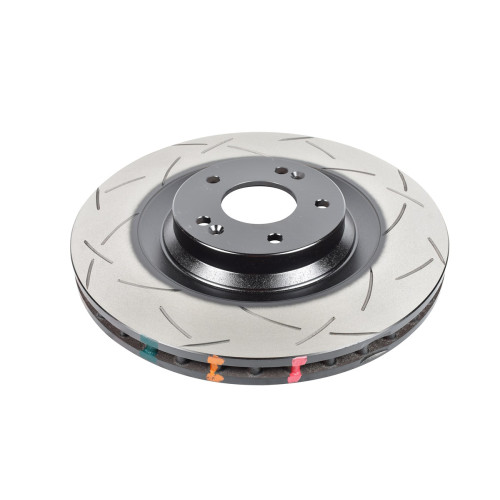

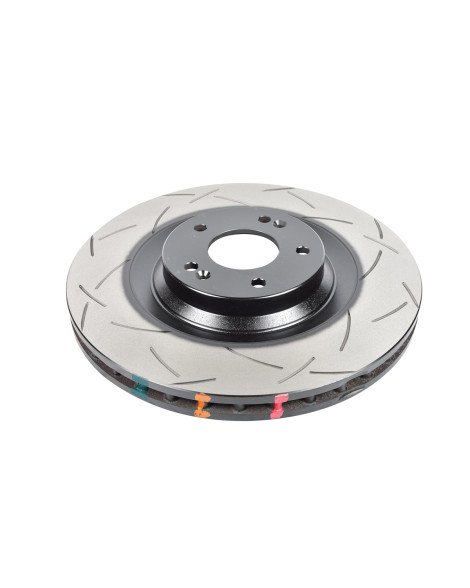

DBA Front T3 4000 Series Grooved Brake Discs for Hyundai i30 N PD 2017+ DBA43146S

DBA43146S - 4000 series - T3

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 disc per axle (Left or Right)

Technical Information

BRAKE DISCS

Diameter [mm]: 345

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 69

Minimum Thickness [mm]: 28

Thickness [mm]: 30

Height [mm]: 52.3

Stage: Stage 4

Total Weight [kg]: 12

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
