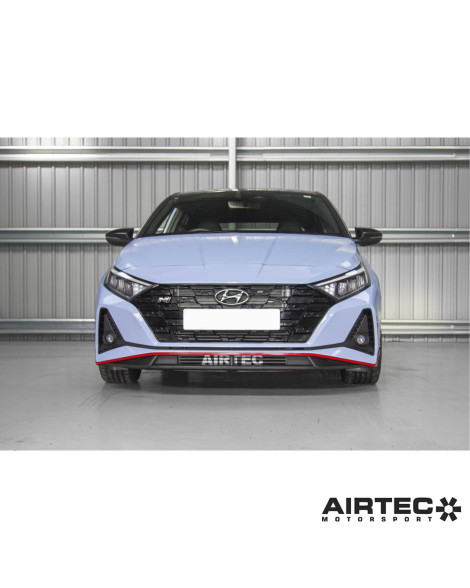

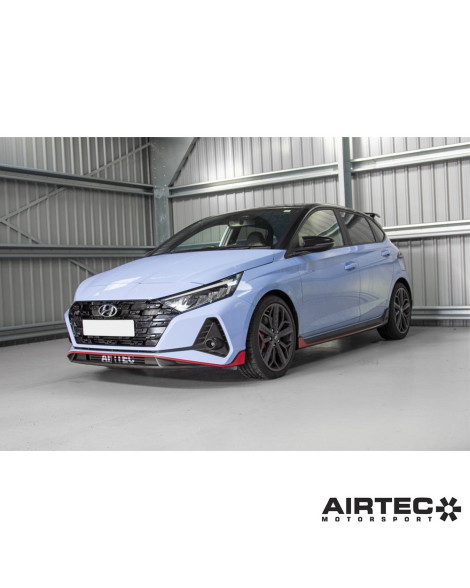

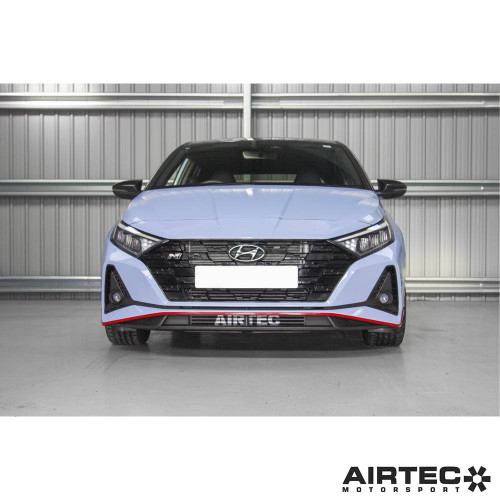

AIRTEC MOTORSPORT FRONT MOUNT INTERCOOLER FOR HYUNDAI I20N

As part of our expanding Hyundai platform product range, AIRTEC Motorsport is proud to launch our intercooler kit for the i20N suitable for track or fast road use.

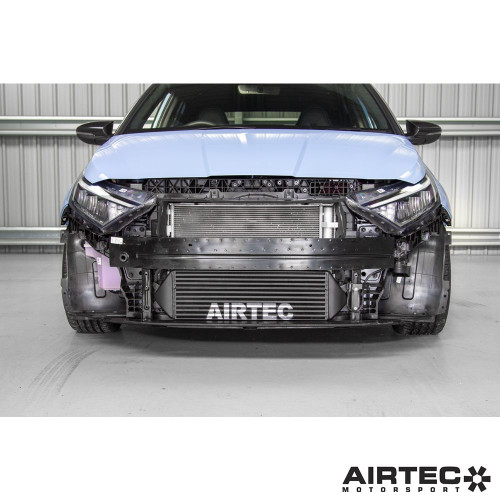

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

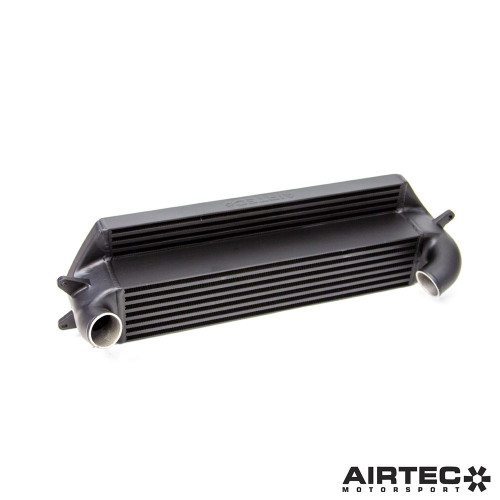

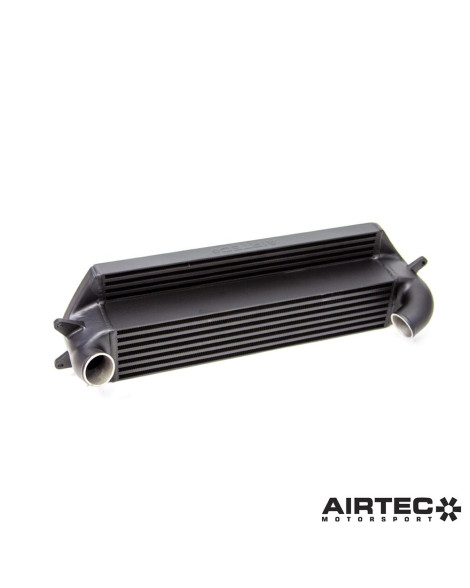

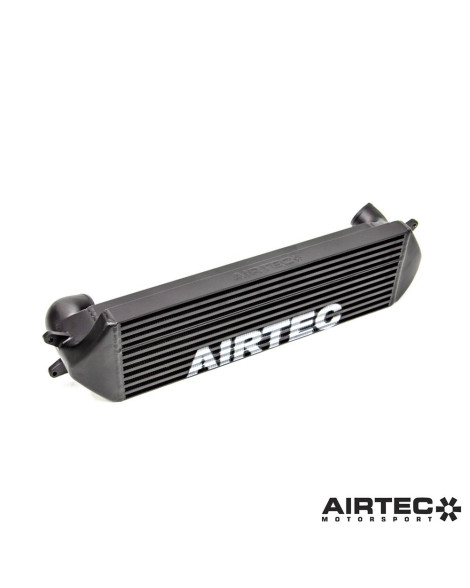

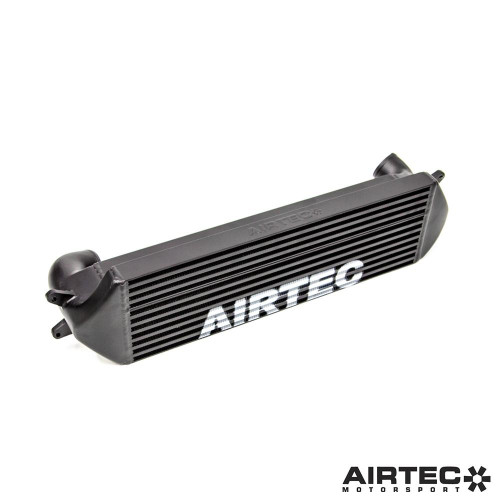

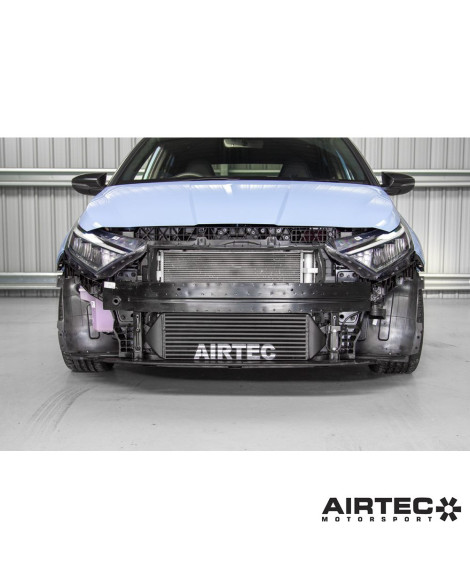

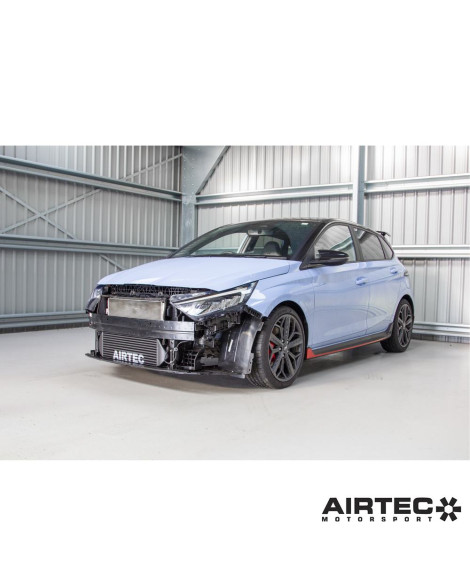

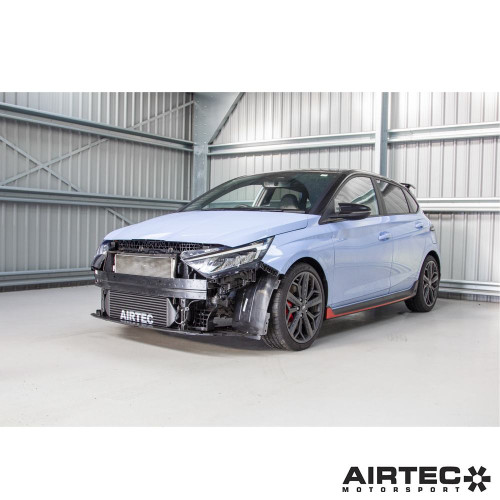

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a stepped core design that is taller and measures up to 130mm in depth. This offers a massive 71% increase in overall capacity in comparison to the original intercooler, as well as a 55% increase in frontal area over standard, which allows it to make the most of the air flow provided.

The inlet and outlet size of the intercooler also increases from 50mm to 63mm in diameter to further improve flow and can be used with the original pipework or our AIRTEC Motorsport larger diameter cold side boost pipe.

Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

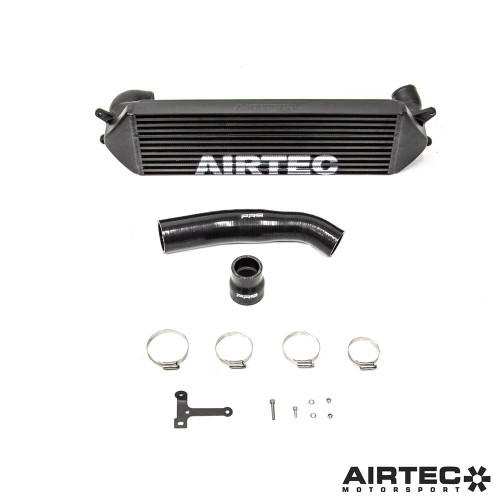

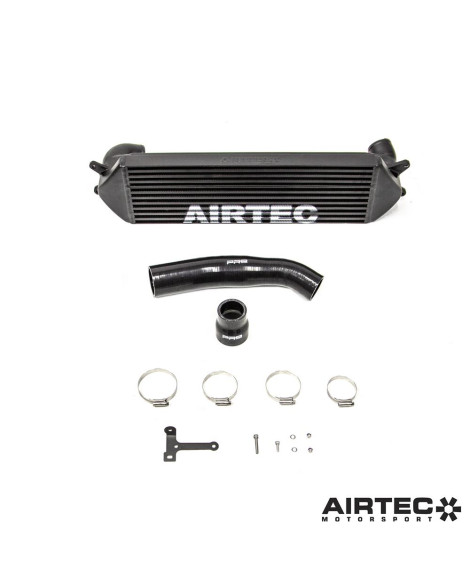

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement and comes with Pro Hoses silicone connectors/reducers, all fixtures and fittings, as well as detailed fitting instructions.

Dimensions:

OEM Intercooler

Width: 600mm

Height: 123mm

Depth: 90mm

Capacity: 6.6 litres

Front area: 7,380cm²

AIRTEC Motorsport Intercooler

Width: 600mm

Height: 190mm

Depth: 130/90mm stepped

Capacity: 11.3 litres

Front area: 11,4000cm²

Features:

Huge increase in cooling ability

Reduced charge temperatures

71% increase in capacity compared to original intercooler

55% increase in frontal area compared to original intercooler

High-flow, moulded one-piece cast end tanks

Internal air diverter

Larger inlet and outlets

Powder coated black finish

All fittings and fixtures included

Detailed fitting guide included

AIRTEC Part No: ATINTHYU4

VIP Motorsport is an official UK Stockist of Airtec Motorsport products. Some Airtec intercoolers are built to order and have a lead time of up to two working weeks. Contact us for an ETA.
