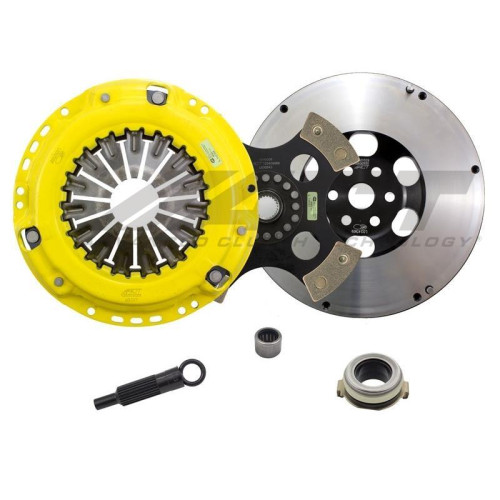

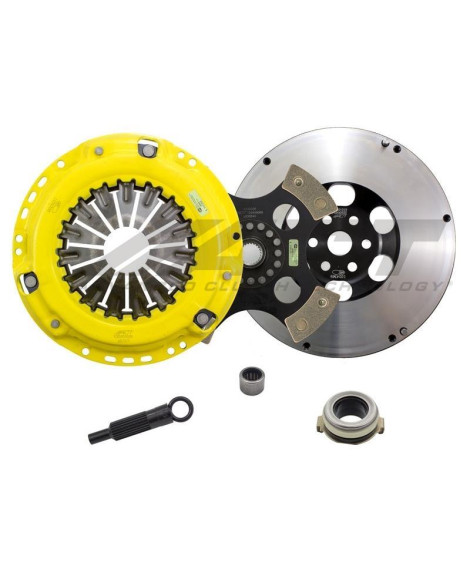

ZX4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for race use only;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Specifications

Warranty  12 Months

Product Weight (lbs.) 28.7

Disc Type  Race Disc

Tooth Quantity 112

Pressure Plate Type   Heavy Duty

Input Shaft Diameter (Inches)     1

Torque Capacity Over OE  88%

Torque Capacity (ft/lbs.)     530

Disc Diameter (mm)  240

Disc Diameter (Inches)        9.4

Spline Count      23

ItemCodeDesc   HD/Race Rigid 4 Pad

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
