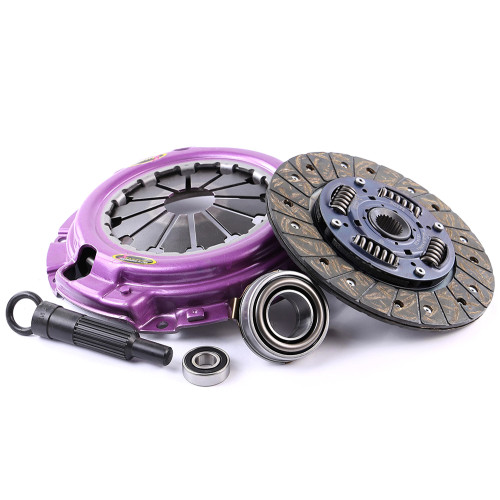

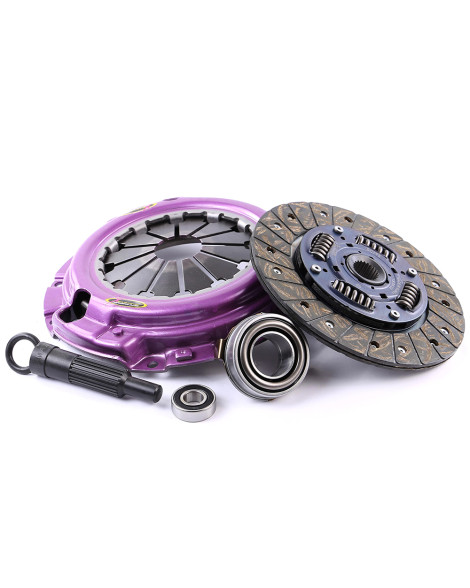

Xtreme Stage 1 Clutch Kit for Mazda MX-5 NA / NB 1.6L KMZ20002-1A

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 210Nm

Clamp load 630kg 50% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Flywheel Step (mm) +0.5

Clutch Disc Diameter (mm) 200

Clutch Disc Spline Count 22

Clutch Disc Spline Diameter (mm) 24.5

Disc Type Sprung

Friction Material Organic

Stage 1

Recommended Use Street

Clamping Force % Increase 50%

Torque (Nm) Inc FOS 210

Torque (ftlbs) Inc FOS 150

Spigot Bush/Bearing Included YES

Aligning Tool Included YES

Spline Grease Included YES

Transport Weight (kg) 5.2

CONFIRMED APPLICATIONS

MAZDA MX-5 I (NA) 1990.05-1994.01 1.6 (NA6C) B64F 1597 Petrol 85 kW 115 BHP (1990.05 - 1994.01)

MAZDA MX-5 II (NB) 1998.05 - 2005.10 1.6 16V (NB6C) B6MC, B6MU 1597 Petrol 81 kW 110BHP (1998.05 - 2005.10)

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
