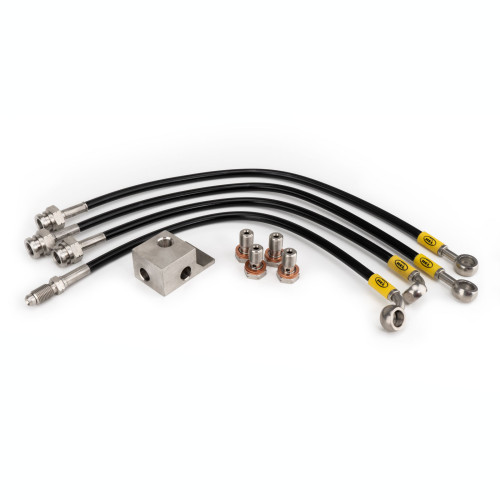

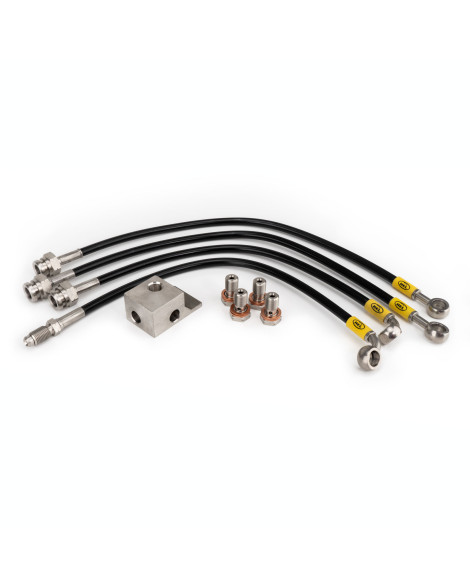

HEL Braided Brake Lines for Mazda MX-5 NA/NB All Models excluding Sport with Factory Big Brakes (1989-2005)

Part Number: MAZ-4-098

Line Colour

Choose the colour of the protective wipe-clean PVC coating that's bonded to the stainless steel braided line.

Images are for illustration purposes only. You'll receive an item suitable for your application.

The difference between winning and losing is a very fine line...

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line - Which is why HEL Performance only supply very fine lines.

Each HEL Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose.

With our extensive automotive listings the complete kit will be manufactured to exact specifications, guaranteeing the look, the quality and the performance you demand.

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

Choose your colour and click 'add to basket' to order your brake lines.

What's Stopping You?

OEM Replacements

Like for like replacements for the standard flexible brake hoses on your vehicle.

What's Included

Stainless steel braided brake lines

Natural plain stainless steel banjo bolts (if the fittings require them)

Copper crush washers (if the fittings require them)

Lifetime warranty keyring fob

Installation leaflet

Specifications

Line inner material PTFE

Line outer material Stainless steel (303/304) and protective PVC cover

Fittings material Stainless steel (303/304)

Temperature range -70°C to 260°C (-94°F to 500°F)

Inside diameter 3.5mm (0.138")

Outside diameter 7.5mm (0.295")

Maximum working pressure 290 Bar (4206 PSI)

Burst pressure 870 Bar (12618 PSI)

Minimum bend radius 38mm (1.496")

VIP Motorsport is an official UK Dealer of HEL Performance in the UK. All HEL Brake Hoses are made to order so please allow a lead time of 7 Days. Image may not be accurate to kit received.
