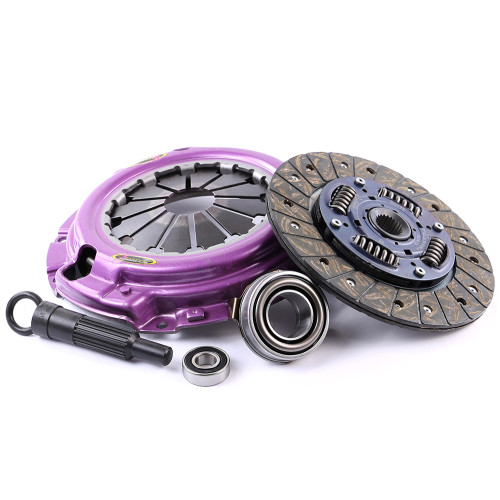

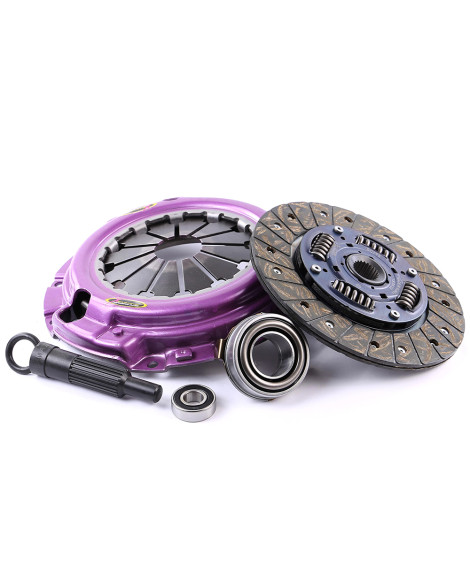

Xtreme Stage 1 Organic Extra HD Clutch Kit for Mazda MX-5 NA / NB 1.6L 89-05 KMZ20002-1AX

Confirmed Applications

MAZDA MX-5 I (NA) 1990.05-1994.01 1.6 (NA6C) B64F 1597 Petrol 85 kW 115 BHP (1990.05 - 1994.01)

MAZDA MX-5 II (NB) 1998.05 - 2005.10 1.6 16V (NB6C) B6MC, B6MU 1597 Petrol 81 kW 110BHP (1998.05 - 2005.10)

Specifications

Flywheel Step (mm)    +0.5

Clutch Disc Diameter (mm) 200

Clutch Disc Spline Count     22

Clutch Disc Spline Diameter (mm)        24.5

Disc Type  Sprung

Friction Material         Organic

Stage         1

Recommended Use    Street

Torque (Nm) Inc FOS  270

Torque (ftlbs) Inc FOS 200

Spigot Bush/Bearing Included     Yes

Aligning Tool Included        Yes

Spline Grease Included       Yes

Note Extra HD

Transport Weight (kg) 5.6

Xtreme Stage 1

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
