Xtreme Stage 2 Clutch Kit 330ft/lbs for Mazda MX-5 NB 1.8L 98-05 KMZ22015-1C

Specifications

Flywheel Step (mm) -20

Clutch Disc Diameter (mm) 225

Clutch Disc Spline Count 22

Clutch Disc Spline Diameter (mm) 24.5

Disc Type Sprung

Friction Material Ceramic

Stage 2

Recommended Use Performance Street

Clamping Force % Increase 40%

Torque (Nm) Inc FOS 450

Torque (ftlbs) Inc FOS 330

Spigot Bush/Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Transport Weight (kg) 5.3

CONFIRMED APPLICATIONS

MAZDA MX-5 II (NB) 1998.01-2002.07 1.8 (NB8C) BP6J, BP5A 1839 Petrol 103 kW 140 BHP (1998.01 - 2002.07)

MAZDA MX-5 II (NB) 1998.05-2005.10 1.8 16V (NB8C) BP6J, BP5A 1840 Petrol 103 kW 140 BHP (1998.05 - 2005.10)

MAZDA MX-5 II (NB) 2000.11-2005.10 1.8 16V (NB8C) BP6J 1840 Petrol 102 kW 139 BHP (2000.11 - 2005.10)

MAZDA MX-5 II (NB) 2000.11-2005.10 1.8 16V (NB8C) BP-ZE, BP6J 1840 Petrol 107 kW 146 BHP (2000.11 - 2005.10)

MAZDA MX-5 II (NB) 2002.01-2002.10 1.8 i Turbo BP8K 1840 Petrol 157 kW 214 BHP (2002.01 - 2002.10)

MAZDA MX-5 II (NB) 2002.04-2005.10 1.8 i (NB8C) BP4W 1840 Petrol 113 kW 154 BHP (2002.04 - 2005.10)

MAZDA MX-5 II (NB) 2002.04-2005.10 1.8 i Turbo BP Turbo, BP8K 1840 Petrol 136 kW 185 BHP (2002.04 - 2005.10)

Xtreme Performance - Cushioned Ceramic kit /-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 450Nm

Clamp load 700Kg 40% Increased over standard

Cushioned Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

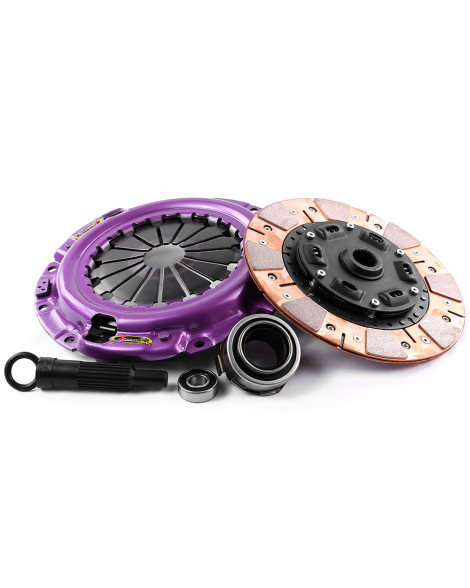

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
