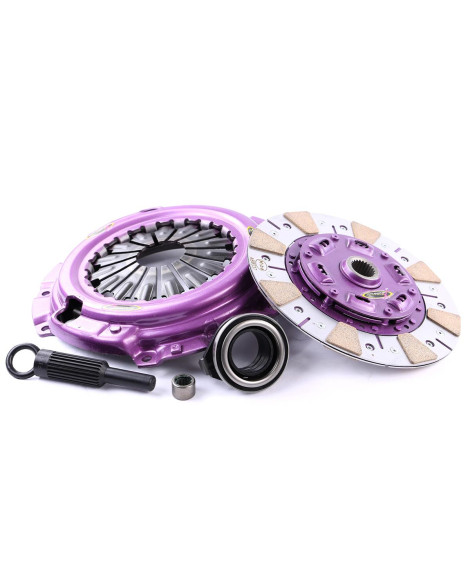

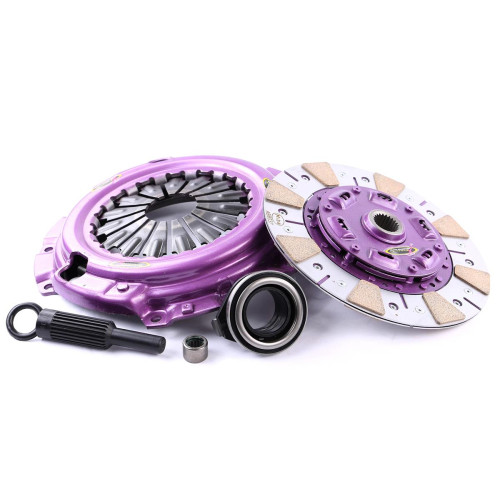

Xtreme Stage 2 Clutch Kit 370ft/lbs for Mazda MX-5 NC MK3 2.0L 6-Speed 2005-2015 KMZ23017-1C

Specifications

Flywheel Step (mm) -7.5

Clutch Disc Diameter (mm) 225

Clutch Disc Spline Count 23

Clutch Disc Spline Diameter (mm) 26.2

Disc Type Sprung

Friction Material Ceramic

Stage 2

Recommended Use Performance Street

Clamping Force % Increase 25%

Torque (Nm) Inc FOS 500

Torque (ftlbs) Inc FOS 370

Spigot Bush/Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Transport Weight (kg) 6.6

CONFIRMED APPLICATIONS

MAZDA MX-5 III (NC) 2005.07-2014.12 2.0 (NC18) LFG7, LFY7, LFG8, LFZD 1999 Petrol 118 kW 160 BHP (2005.07 - 2014.12) 6-Speed Models ONLY

Xtreme Performance - Cushioned Ceramic kit /-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 500Nm

Clamp load 900Kg Increased over standard

Cushioned Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
