ACT TC1-XTSS - XT/Perf Street Sprung

Specifications

Item Description XT/Perf Street Sprung

Product Weight (lbs.) 12.9

Torque Capacity (ft/lbs.)     310

Torque Capacity Over OE    74%

Disc Material     Organic

Clutch Disc Diameter (Inches)     8.3

Clutch Disc Diameter (Millimeters)      212

Input Shaft Diameter (inches)     0.9375

Pressure Plate Type   Xtreme

Confirmed Applications

GEO Prizm GSi 90-4/91 DOHC, 1.6L 212mm NOTE: 8th digit of VIN # must be (5)

Toyota Celica 89-91 1.6L, ST 212mm

Toyota Corolla 89-91 1.6L, GTS 212mm

Toyota MR-2 85-89 1.6L, GT, 4AGELC 212mm

Toyota Starlet GT Turbo 4E-FTE EP82 1.3L 90-99 212mm

Toyota Starlet Glanza Turbo 4E-FTE EP91 1.3L 90-99 212mm

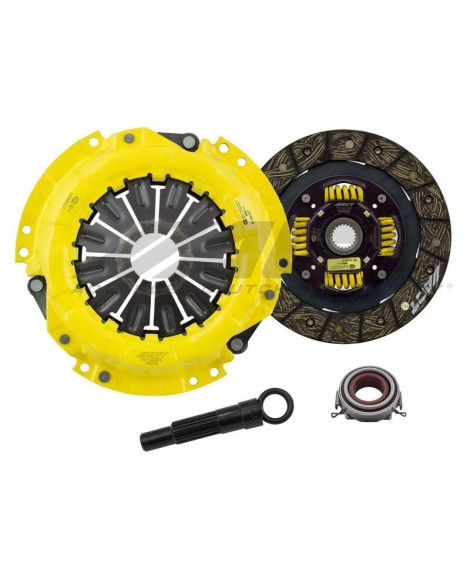

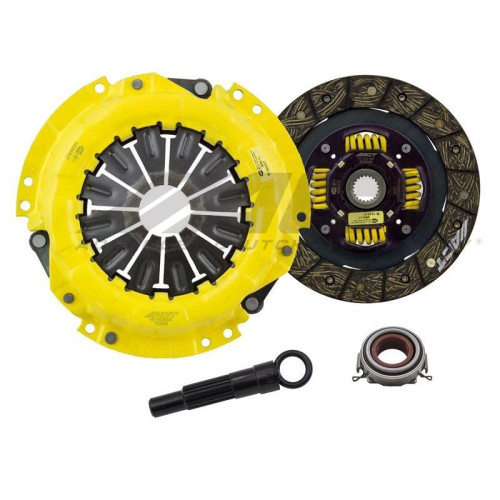

TC1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Feel Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle

Life Longer friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade

Recommended Use Recommended for street and race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

VIP Motorsport is a UK Stockist of ACT. Contact us for a lead time.
