GKTECH 86 / GR86 / BRZ SUPER LOCK REPLACEMENT INNER TIE ROD - SOLD INDIVIDUALLY

SKU: GT86-INTR or GT86-LONG

We have developed two OEM replacement inner tie rods with more adjustment than any other tie rods available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles (or steering kit) that you're running and then the length of your LCA.

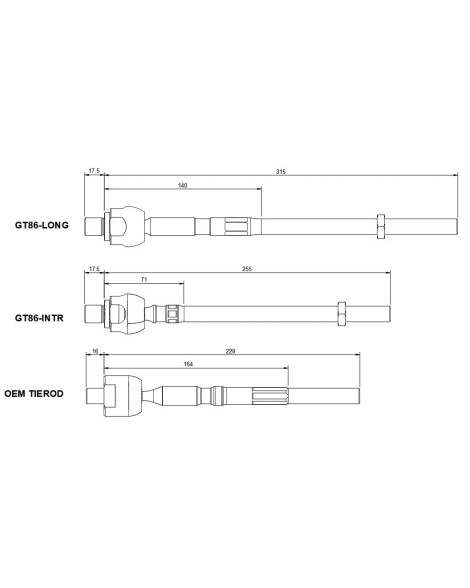

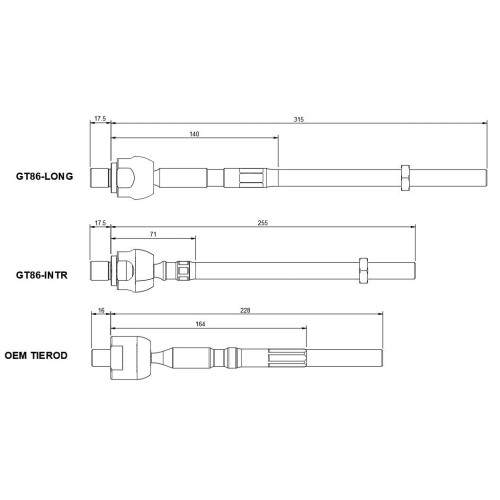

These variables create a near endless amount of variables that we narrowed down to two different length tie rods and we also included adjustment for those needing to reduce the length of the tie rod. The final two options as shown in the photos compared to the OEM unit.

- Adjustable from 71mm through to 255mm or from 140mm to 315mm

- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing

- 50 degrees range of motion (25 degrees misalignment)

- 5mm Lock washer built in to allow for more steering lock

- Sold individually

NOTE: It's not uncommmon for the tie rod needing to be cut down. This is very easy to do and very much a DIY install.

FAQs

How hard are these to install?

Remove your old tie rods, measure where these need to be cut in length and install them. It's a very self explanatory install and shouldn't take longer than 30 minutes.

Will this fit my car?

If your car is listed above then the tie rods will fit however they may also fit other setups not listed but we can't be sure.

Do I need a wheel alignment after installing these?

Unless you get the length spot on perfect, you will need a wheel alignment after installation.

Vehicle Compatibility

NOTE: It's not uncommmon for the tie rod needing to be cut down. This is very easy to do and very much a DIY install.

BRZ ZC6

BRZ ZD8

GR86 ZN8

GT86 ZN6
