ACT Clutches TS2-HDG6 - HD/Race Sprung 6 Pad

SKU TS2-HDG6

Specifications

Item Description HD/Race Sprung 6 Pad

Product Weight (lbs.) 23

Torque Capacity (ft/lbs.) 570

Torque Capacity Over OE 88%

Disc Material Ceramic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1.125

Pressure Plate Type Heavy Duty

Warranty 12 Months (contact us for details)

TS2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life Moderate friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use Recommended for high horsepower street or race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Toyota Soarer (JDM, JZZ30) 91-96 2.5L Turbo, 1JZGTE (Pull type clutch) 236mm

Supra R154 Transmission 4/86-8/92 Turbo, 3.0L, 7MGTE (Pull type clutch) 240mm

Supra R154 Transmission 4/86-92 (JDM, JZA70) 2.5L Turbo, 1JZGTE (Pull type clutch) 240mm

Toyota Chaser 2.5L Turbo 1JZGTE 91-96

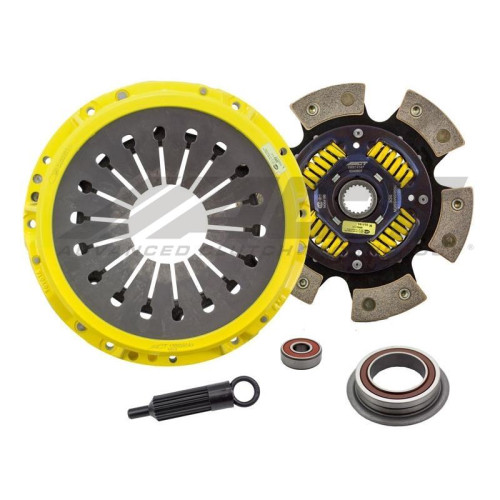

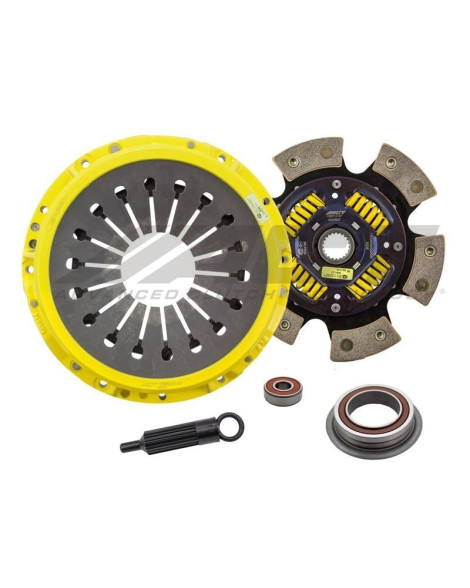

Kit Contents:

6240607 - 6 Pad Sprung Race Disc

AT11 - Alignment Tool

PB1004 - Pilot Bearing

RB419 - Release Bearing

T015 - Heavy Duty Pressure Plate
