ACT TS2-XTSS - XT/Perf Street Sprung for Toyota Chaser, Supra, Soarer

Item Description XT/Perf Street Sprung

Product Weight (lbs.) 22.6

Torque Capacity (ft/lbs.) 495

Torque Capacity Over OE 63%

Disc Material Organic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1.125

Pressure Plate Type Xtreme

TS2-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Feel Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle

Life Longer friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade

Recommended Use Recommended for street and race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Toyota Soarer (JDM, JZZ30) 91-96 2.5L Turbo, 1JZGTE (Pull type clutch) 236mm

Supra R154 Transmission 4/86-8/92 Turbo, 3.0L, 7MGTE (Pull type clutch) 240mm

Supra R154 Transmission 4/86-92 (JDM, JZA70) 2.5L Turbo, 1JZGTE (Pull type clutch) 240mm

Toyota Chaser 2.5L Turbo 1JZGTE 91-96

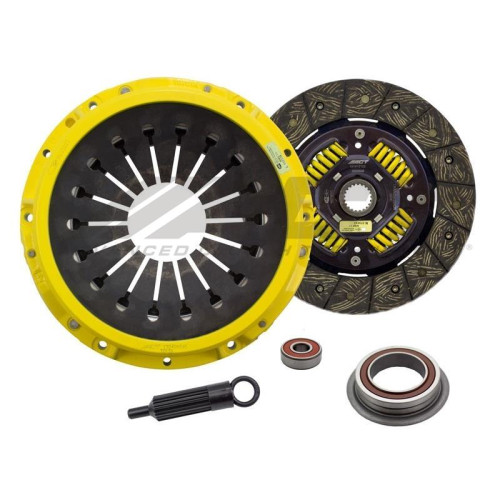

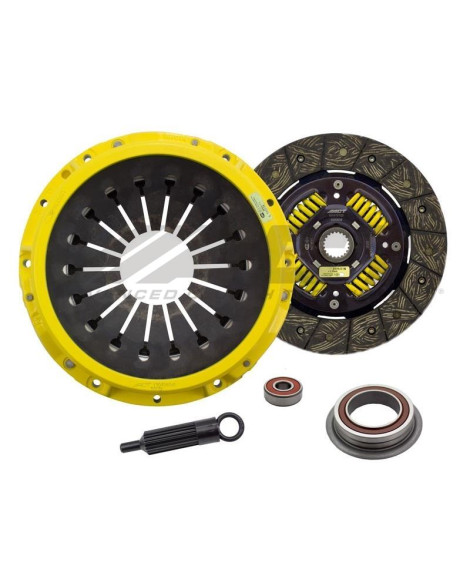

Kit Contents

T015X - Xtreme Pressure Plate

3000608 - Perf Street Sprung Disc

AT11 - Alignment Tool

RB419 - Release Bearing

PB1004 - Pilot Bearing

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
