ACT TS2-XTG6 - XT/Race Sprung 6 Pad for Toyota Chaser, Supra, Soarer

Item Description XT/Perf Street Sprung

Product Weight (lbs.) 23

Torque Capacity (ft/lbs.) 630

Torque Capacity Over OE 109%

Disc Material Ceramic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1.125

Pressure Plate Type Xtreme

TS2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle

Life Moderate friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use Recommended for high horsepower street or race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Toyota Soarer (JDM, JZZ30) 91-96 2.5L Turbo, 1JZGTE (Pull type clutch) 236mm

Supra R154 Transmission 4/86-8/92 Turbo, 3.0L, 7MGTE (Pull type clutch) 240mm

Supra R154 Transmission 4/86-92 (JDM, JZA70) 2.5L Turbo, 1JZGTE (Pull type clutch) 240mm

Toyota Chaser 2.5L Turbo 1JZGTE 91-96

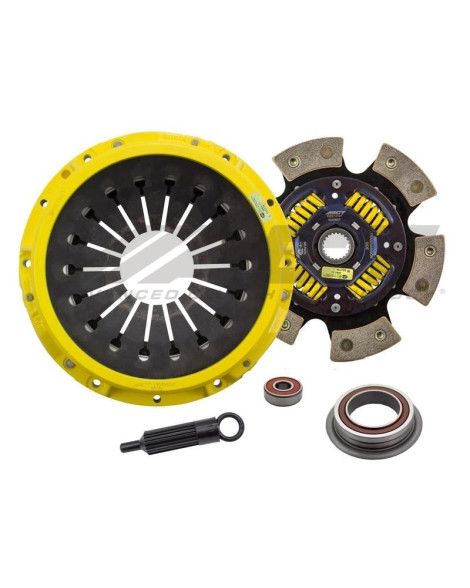

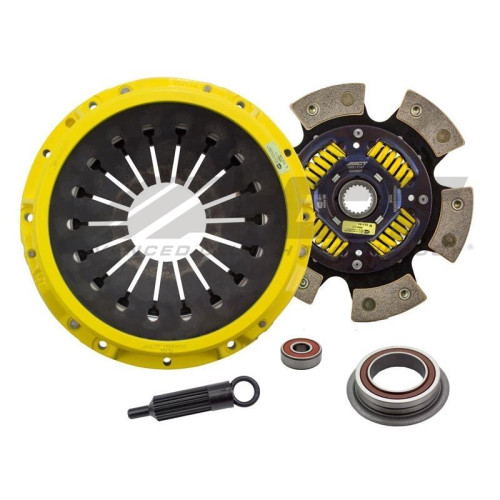

Kit Contents

T015X - Xtreme Pressure Plate

6240607 - 6 Pad Sprung Race Disc

AT11 - Alignment Tool

RB419 - Release Bearing

PB1004 - Pilot Bearing
