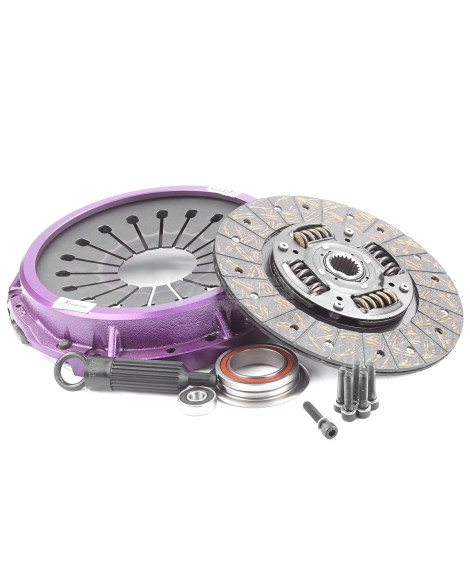

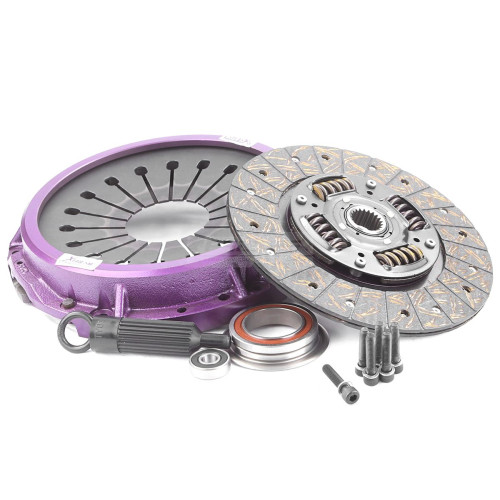

Xtreme Stage 1 Clutch Kit 400ft/lbs for Toyota Chaser / Mark II / Soarer / Supra 1JZ-GTE KTY24050-1A

Confirmed Applications

Toyota Chaser 1992.10-1996.08 2.5 (JZX90. JZX93) 1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08)

Toyota Chaser 1992.10-1996.08 2.5 Turbo (JZX90) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08)

Toyota Chaser 1996.10-2001.05 2.5 (JZX100_) 1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05)

Toyota Chaser 1996.10-2001.05 2.5 (JZX100_) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05)

Toyota Mark II 1992.10-1996.09 Gen. VI |2.5 (JZX110) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09)

Toyota Mark II 1996.10-2001.09 Gen. VII | 2.5 VVTi (JZX100) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09)

Toyota Soarer 1990.09-2000.09 2.5 Turbo (JZZ30) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09)

Toyota Supra 1990.08-1993.05 2.5 i Bi-Turbo (JZA70) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05)

Specifications

Torque (Nm) Inc FOS 550

Torque (Ftlbs) Inc FOS 405

Flywheel Step +.5mm/.020""

Clutch Disc Diameter (mm) 236

Clutch Disc Spline Count 21

Clutch Disc Spline Diameter (mm) 29

Recommended for Street Performance

Stage Stage 1

Weight [KG]: 10.8

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 560Nm

Clamp load 1000kg 25% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
