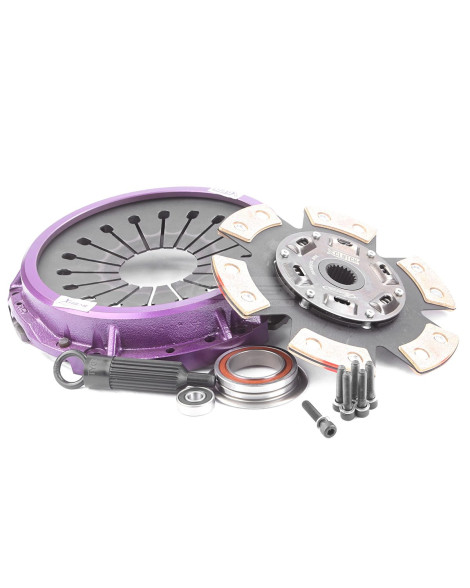

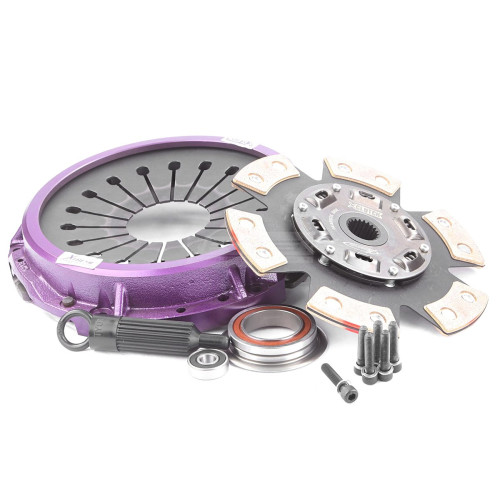

Xtreme Stage 2 Clutch Kit 620ft/lbs for Toyota Chaser / Mark II / Soarer / Supra 1JZ-GTE KTY24050-1B

Confirmed Applications

Toyota Chaser 1992.10-1996.08 2.5 (JZX90. JZX93) 1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08)

Toyota Chaser 1992.10-1996.08 2.5 Turbo (JZX90) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08)

Toyota Chaser 1996.10-2001.05 2.5 (JZX100_) 1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05)

Toyota Chaser 1996.10-2001.05 2.5 (JZX100_) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05)

Toyota Mark II 1992.10-1996.09 Gen. VI |2.5 (JZX110) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09)

Toyota Mark II 1996.10-2001.09 Gen. VII | 2.5 VVTi (JZX100) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09)

Toyota Soarer 1990.09-2000.09 2.5 Turbo (JZZ30) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09)

Toyota Supra 1990.08-1993.05 2.5 i Bi-Turbo (JZA70) 1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05)

Specifications

Torque (Nm) Inc FOS 850

Torque (Ftlbs) Inc FOS 626

Flywheel Step +.5mm/.020""

Clutch Disc Diameter (mm) 236

Clutch Disc Spline Count 21

Clutch Disc Spline Diameter (mm) 29

Recommended for Motorsport Applications

Stage Stage 2

Weight [KG]: 10.8

Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 850Nm

Clamp load 1000kg 25% Increased over standard

Sprung Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
