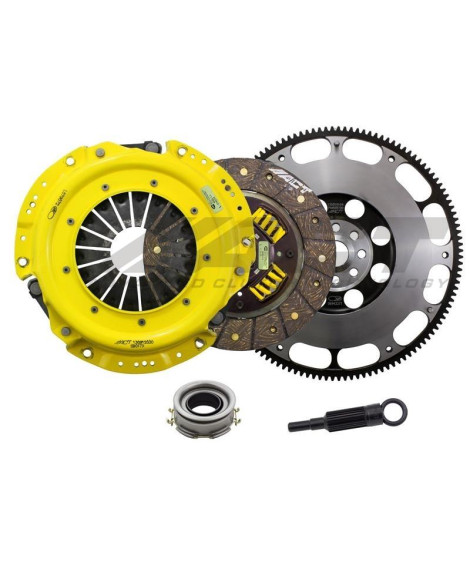

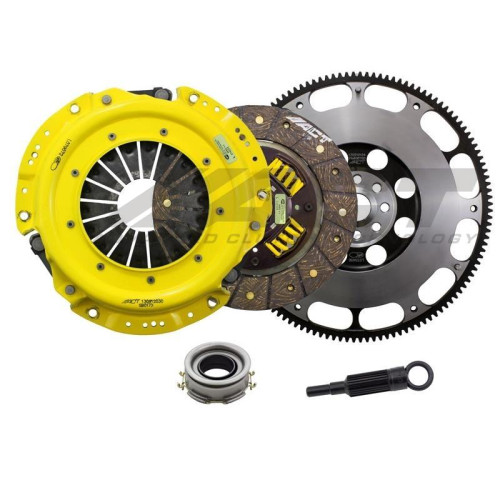

SB8-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Feel: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle;

Life: Longer friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;

Recommended Use: Recommended for street and race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Item Description

XT/Perf Street Sprung

Product Weight (lbs.)

24.9

Torque Capacity (ft/lbs.)

351

Torque Capacity Over OE

108%

Disc Material

Organic

Friction Surface Diameter (Inches)

8.8

Friction Surface Diameter (mm)

224

Input Shaft Diameter (Inches)

1

Spline Count

24

Disc Type

Sprung Street Disc

Pressure Plate Type

Xtreme

Flywheel Included

600700

Flywheel Type

Prolite

Flywheel Tooth Quantity

124

Flywheel Mounting Hole Quantity

8

Warranty

12 Months

Must use ACT Flywheel (Included in kit)

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
