HKS GT2 Supercharger Pro KIt V2 for Subaru BRZ 12-21 / GT86 12-21

Part number 12001-AT012 or the V2 Kit is recommended by HKS for UK vehicles or countries with good quality fuel. For vehicles with worse quality fuel such as the USA HKS recommends using the V3 Kit 12001-KT004.

The V2 kit has a smaller pulley and therefore should be more responsive at lower RPM and has potential to product more power than the V3 kit at higher RPM.

FR sports car "86 & BRZ" was launched in tremendous popularity of ecologically-friendly cars. HKS has been released various tuning parts for "86 & BRZ." Among HKS' 86 & BRZ parts, the supercharger kit has been redesigned.

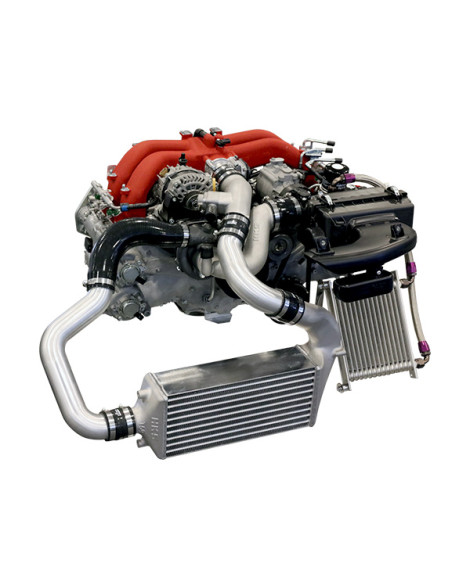

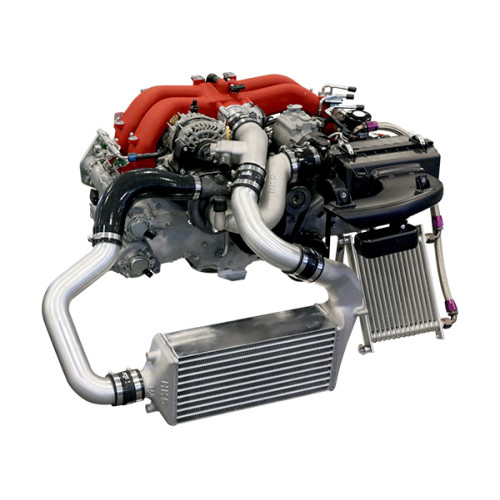

The efficiency improved by layout change of piping around the throttle and utilizing a bigger size intercooler.

Compared to stock, 35% higher output and 45% higher torque are achieved. Fuel Upgrade Kit for higher engine output is available for engine output of over 300PS.

For the owners of the conventional Supercharger kit, Intercooler Upgrade Kit is available to convert the existing kit to new version.

Features

Using the stock air cleaner enables sound isolation of the supercharger; the quietness is dramatically improved.

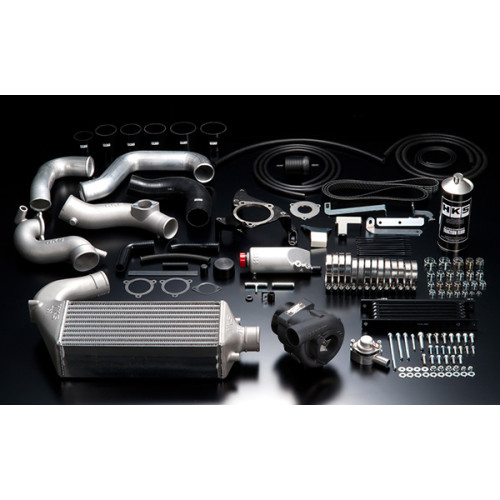

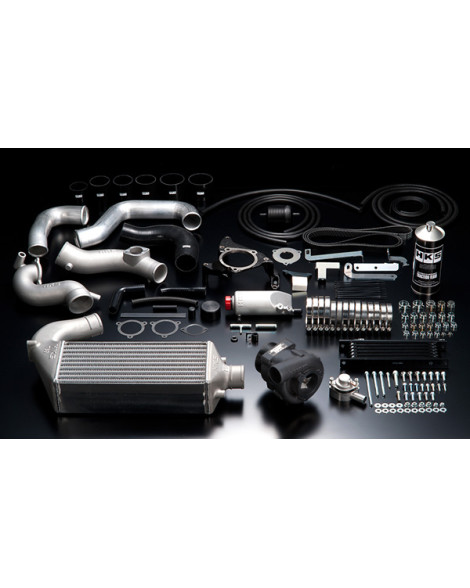

Each HKS GT2 Supercharger System is a vehicle-specific design. All parts necessary for installation are included. (An engine management system is required separately.)

Free to select the engine management tool. (For JDM vehicles, Flash Editor including the data for this Supercharger Kit is available for easy data rewriting.)

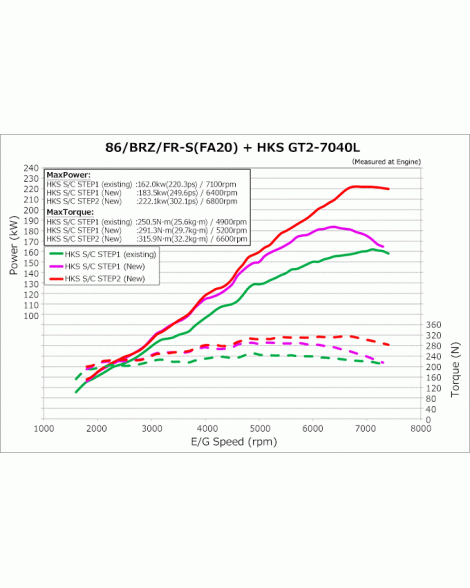

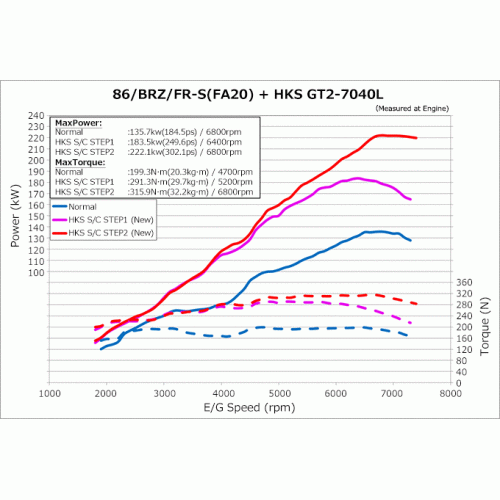

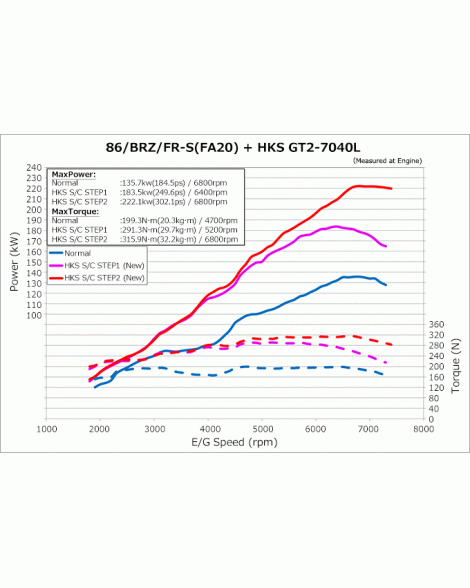

Performance

HKS GT2 S/C STEP2 (S/C Pro + Fuel up + Flash) 302PS 32.2kg-m

HKS GT2 S/C STEP1 (S/C Pro + Flash) 249PS 29.7kg-m

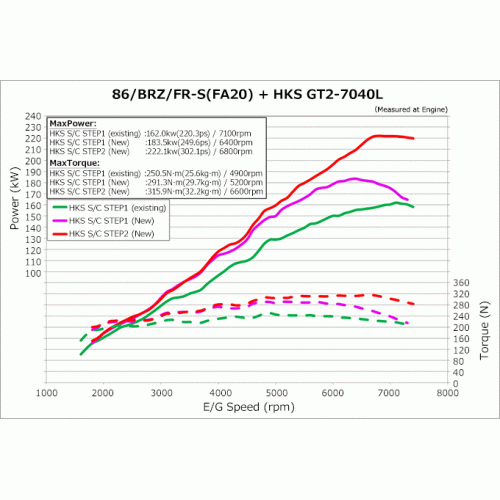

Conventional + Flash 220PS 25.6kg-m

Normal 184PS 20.3kg-m

These data were the results of in-house test. The results may vary depending on the weather, measuring equipment, etc.

Notice for Installation

It is recommended to use with the engine oil cooler and engine oil which high temperature viscosity is more than 40.

Minor modification of the bumper reinforcement and radiator support.

Required installation time is about 8 hours.

Oil Cooler is not included in this kit.

Remarks

Engine management part such as Flash Editor (42015-AT104) is required.

Fuel Upgrade Kit (14007-AT001) is available but not included.

Manual & Parts ListHere.

VIP Motorsport is a UK Stockist of HKS. Items out of stock with us take an average of 3 weeks to be received. We recommend you contact us for a lead time.
