PERRIN PERFORMANCE OIL COOLER KIT FOR BRZ/FR-S/86

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler.

WHY YOU WANT THIS

In racing conditions engine oil temperature skyrockets, especially when aftermarket turbo and supercharger kits are installed. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°F at 7000 RPM.

HEAT EXCHANGER

Using a bar and plate core maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with in-line turbulators to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with low pressure lost.

INTERGRATED THERMOSTAT

The PERRIN Filter Adapter features an integrated 85°C (185°F) thermostat. This means your oil will reach it’s optimum operating temperature of 85°C within the engine before it is released to the oil cooler.

OIL SPACER

In addition to a new OEM oil filter from Subaru, we Include a PERRIN oil spacer which allows for easy installation of the thermostat-filter assembly.

MOUNTING BRACKETS

The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

PREASSEMBLED HOSES

The PERRIN Oil Cooler Kit features lightweight Aeroquip brand -10 hose that are rated for 250psi and 300°F continuous temperature. Each hose comes pre-assembled and wrapped with our Industrial grade Pyrojacket that can withstand continuous exposure to 500° F (260°C) and up to 2000°F (1090°C) for 15-20 minutes.

SPECS

Oil Cooler Core Dimensions

9.5" x 4.75" x 2.2"

Core Delta PSI

3.0/3.5 PSI

Core BTU/hr Range

22,000-29,000

Additional Oil Required

1 quart

Mounting Brackets

6061 T6 aluminum

Filter Spacer

6061 T6 Aluminum

Oil Cooler Thermostat

85°C Activation Temp

Hose Size

-10

Hose Construction

AQP Elastomer Tube, Textile Braid Reinforcement, AQP Elastomer Cover

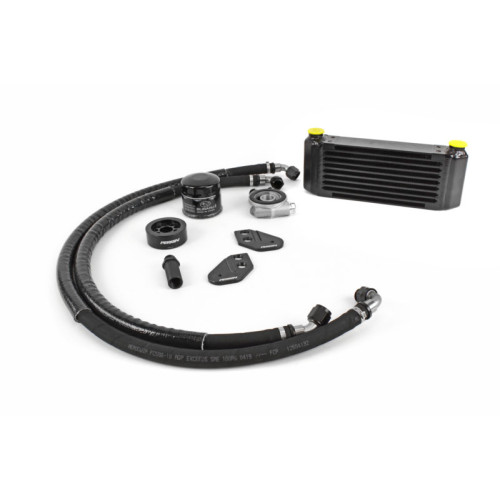

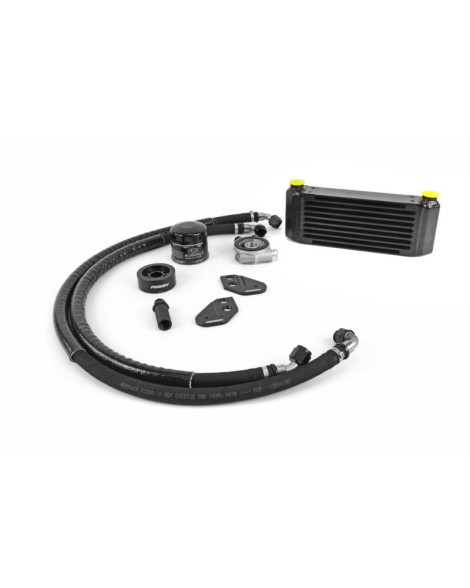

IN THE BOX

(1) PERRIN Oil Cooler Core

(1) PERRIN Oil Filter Spacer

(1) Thermostat Oil Filter/Cooler Adapter

(1) M20 Threader Adapter

(1) Long High Pressure Hose

(1) Short High Pressure Hose

(1) Subaru Factory Oil Filer

(2) PERRIN Oil Cooler Mounting Brackets

(2) 1.25" OD Fender Washers

(2) M6x50 Socket Cap Screws

(4) M6x15 Button Head Bolts

(15) Zip ties

(1) PERRIN License Plate Frame

Warranty & Instructions

COMPATIBILITY

2017-2020 BRZ & 86 Manual with aftermarket intake - Yes

2017-2020 BRZ & 86 Manual with OEM intake - No

2017-2020 BRZ & 86 Automatic - Yes

2013-2016 BRZ & FR-S with Vortech Supercharger Kit - Yes

VIP Motorsport is an official UK & European stockist of Perrin Performance products. Our stock is directly linked with Perrin Performance USA, if the item is out of stock with us it could take roughly 2 working weeks to be received.
