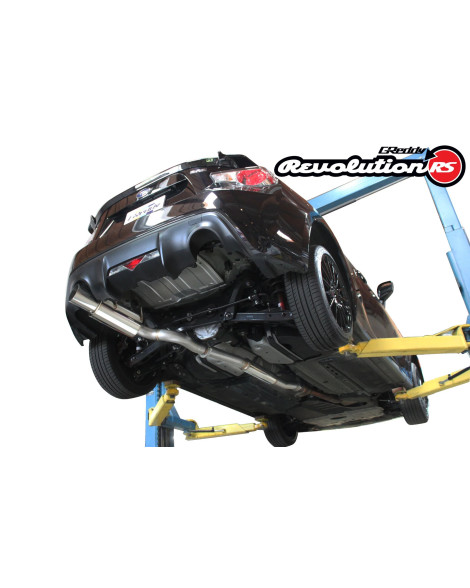

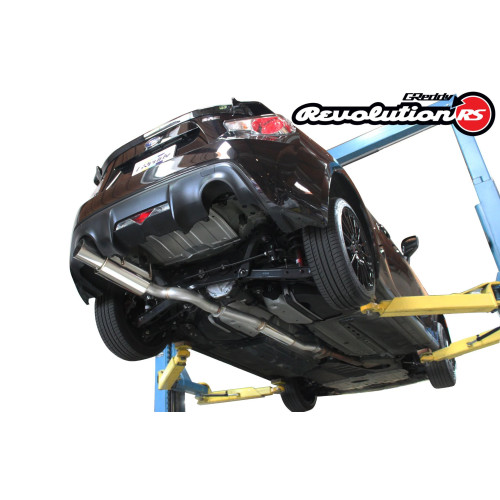

GReddy Revolution RS Exhaust for Toyota GT86 ZN6 / Subaru BRZ ZC6 13-16 10118102

Revolution RS Concept : Racing Sport line focuses on maximum performance with an aggressive look and sound.

GReddy is proud to announce the Revolution RS line of exhaust systems. Named for the revolutionary approach to the design and construction of each application, this racing-sport line focuses on performance with an aggressive look and sound. Careful attention to the flow of exhaust layouts and the internal straight-through construction of each muffler and resonator sets this system apart from similar-looking imitators. Updated ultra high-temperature resistant, sound suppression materials of various densities and high-quality TIG-welded 304 stainless-steel provide premium quality at an affordable price.

Application

Subaru BRZ / Toyota GT86 2013-2016

The Scion FR-S & Subaru BRZ for the Revolution RS offers aggressive looks, yet has controlled deep exhaust tone. It features full 3” diameter piping for superior performance. The purposeful single-sided cat-back layout exits the left side of the vehicle and produces an effective but light-weight system. The extra large GReddy resonator controls unwanted drone.  Like all GReddy Revolution RS systems the exhaust is made from fully hand-welded 304 Stainless-Steel and carries a Limited Lifetime Warranty.

NOTE:  From 2017-on the Toyota 86 and Subaru BRZ came with a slight change in the factory front "over-pipe" this change results in a need for a different position of the mid-pipe on many GReddy exhaust styles for the 2017-on "Kouki" models.  To accommodate this change, GReddy now offers two models of each Evolution GT, Revolution GT, RS-RACE and RS-Ti system, one system for the 2012-2016 FRS/BRZ and another revised system for the 2017-on 86/BRZ.

Chassis: ZN6

Engine: 4U-GSE (FA20)

Type: Cat-back system

( large diameter single muffler system)

Note: * not compatiable with 2017 models

Number of pieces: 2pcs

Piping: 76 mm (3.0")

Tip: 115mm (4.5") x L 150 (5.9")

Gasket(s): 3.0" oval (qty: 1 included) replacement

Resonator: yes

Notes: replace factory doughnut-gasket and spring bolts for mid-pipe, with provided composite gasket and M8 nuts and bolts.

Weight: 21.5 lbs   (Stock weight  39 lbs)

Sound level: 107* dB(a)

Part #: 10118102

VIP Motorsport is a Dealer of GReddy / Trust Performance products in the UK. Our stock is directly linked with GReddy, if the item is out of stock with us it could take up to two working weeks to arrive with you if available at GReddy / Trust.
