Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Toyota Hilux Mk6 and 7 803157

Pedders 1.75 Inch Suspension Lift Kit. Toyota Hilux

Improved looks and ground clearance.

Are you looking to raise your Toyota Hilux?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Entry level Lift kit, and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 35mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 765mm with 16 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

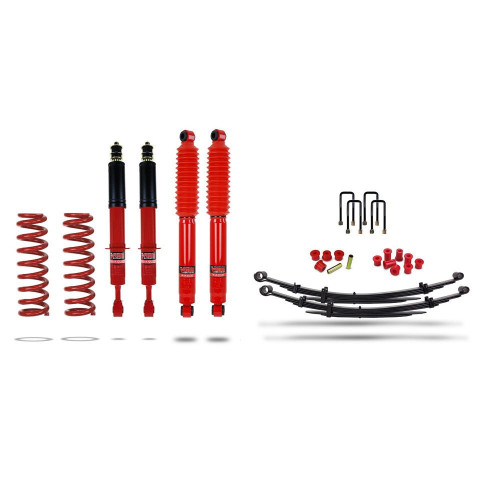

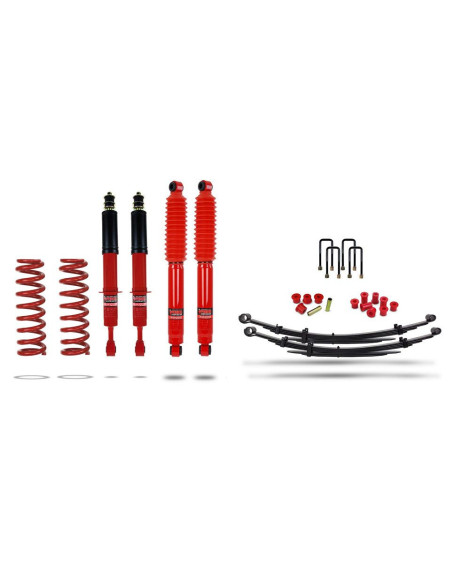

Contents of Kit 803157 (Pedders Part Numbers)

154301 x 2 - Pedders Foam Cell Shock

270071. X 2 - Pedders Heavy Duty Front Spring

6230 x 2 - Pedders Heavy Duty Rear Spring

151226 x 2 - Pedders Foam Cell Rear Shock

EP8338 x 1 – Pedders Urethane Leading Eye Bushes

EP8339 x 1- Pedders Urethane Lower Shackle Bushes

4382 x 4 - Pedders U bolt

Confirmed Applications

Toyota       Hilux 4WD MK6 2005-2010 GGN25, KUN25R, KUN26R GGN25, KUN25R, KUN26R

Toyota       Hilux 4WD MK7 2010-2015 GGN25, KUN25R, KUN26R GGN25, KUN25R KUN26R

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
