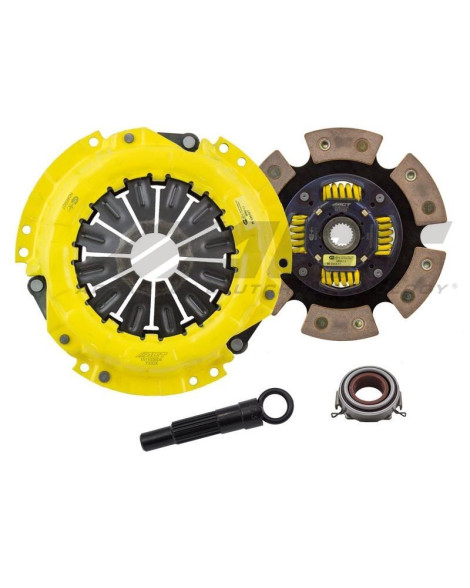

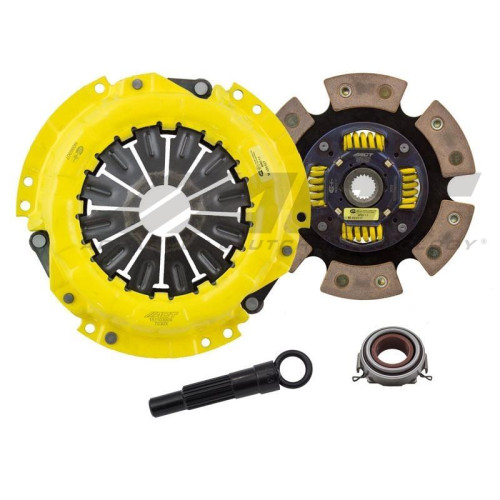

TC1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for high horsepower street or race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

VIP Motorsport is an official dealer of Advanced Clutch Technology (ACT) Clutches in the UK

Item Description

XT/Race Sprung 6 Pad

Product Weight (lbs.)

13.6

Torque Capacity (ft/lbs.)

400

Torque Capacity Over OE

122%

Disc Material

Ceramic

Friction Surface Diameter (Inches)

8.3

Friction Surface Diameter (mm)

212

Input Shaft Diameter (Inches)

0.9375

Spline Count

21

Pad Quantity

6

Disc Type

Sprung Race Disc

Pressure Plate Type

Xtreme

Warranty

12 Months
