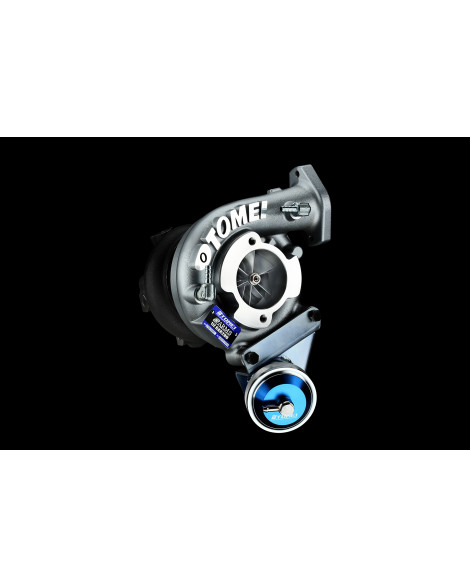

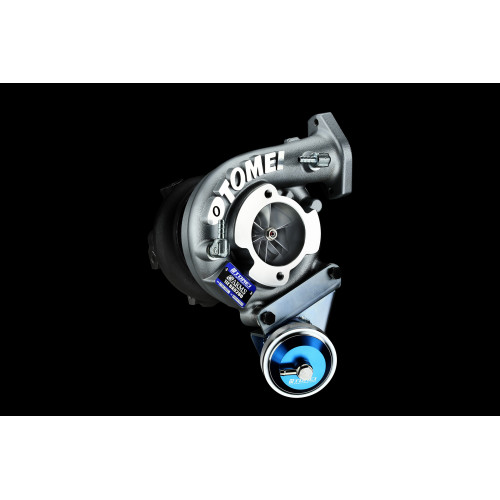

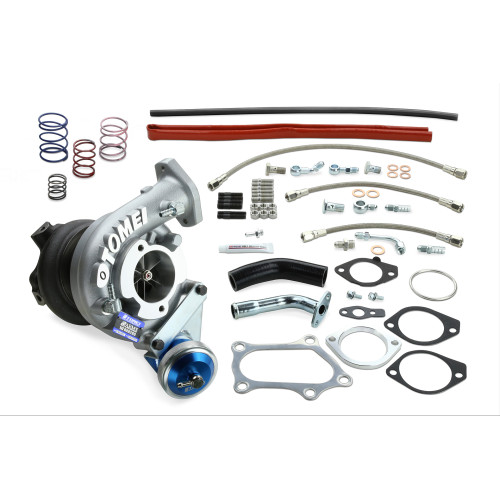

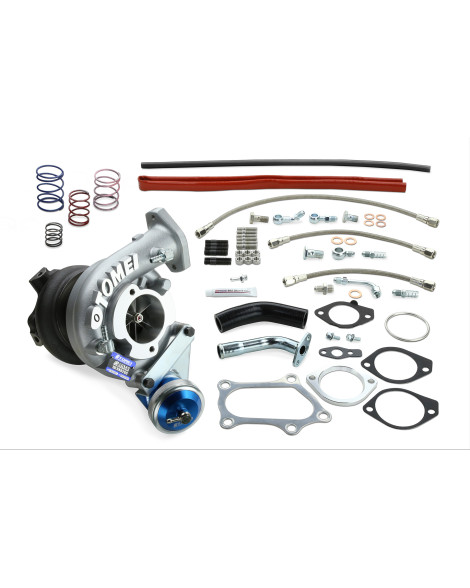

TOMEI B/B TURBOCHARGER KIT ARMS BX8280 1JZ-GTE

PART No. TB403A-TY04A

TARGET HP (HP) 450

BEARING TYPE BALL BEARING

INITIAL BOOST SETTING (kgf/cm2) 1.0

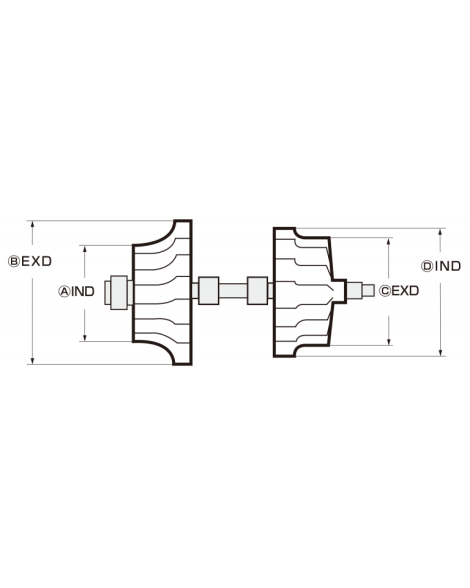

COMPRESSOR WHEEL

ⒶIND(mm) 61.4

ⒷEXD(mm) 82.0

TRIM 56

BLADES 6/6

MATERIAL A2618

PRODUCTION CNC BILLET

TURBINE WHEEL

ⒸEXD(mm) 58.8

ⒹIND(mm) 67.0

TRIM 77

BLADES 9

MATERIAL K418

PRODUCTION CAST

COMPRESSOR HOUSING

IND(mm) 62.4

EXD(mm) 45.46

A/R 0.54

TURBINE HOUSING

IND(mm) 47.89

EXD(mm) 1JZ

A/R 0.67

CNC Billet Compressor Wheel

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator

Large capacity, reinforced foraged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.
