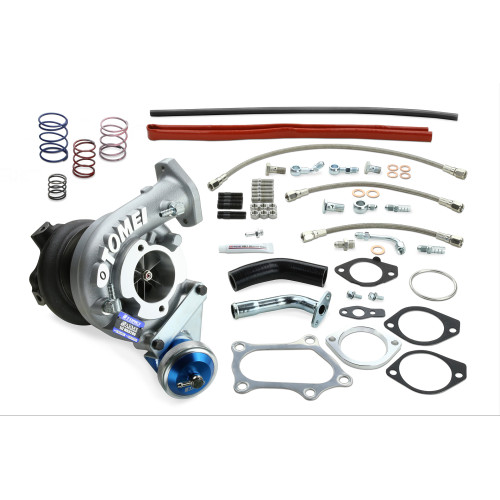

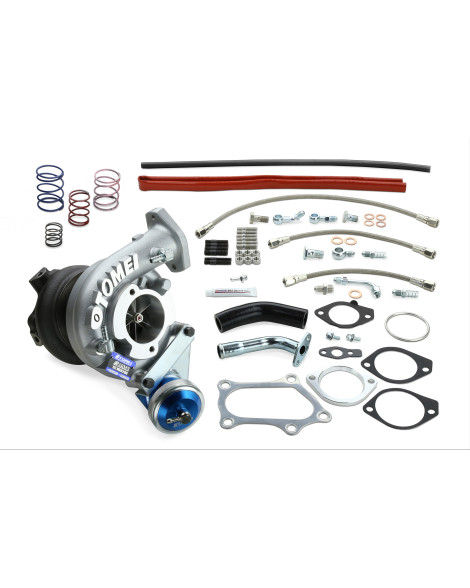

1JZ-GTE MX8280 Tomei Turbine Kit

450HP P/N TB401A-TY04A

CNC BILLET COMPRESSOR WHEEL

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with larger surface area for significantly improved airflow and turbo spool.

MULTI RATE BILLET ACTUATOR

Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

BEARING TYPE  JOURNAL BEARING

INITIAL BOOST SETTING

MX8280     1.0 kgf/cm2

COMPRESSOR WHEEL

MX8280

Ⓐ IND(mm)       61.4

Ⓑ EXD(mm)      82.0

TRIM          56

BLADES     6

MATERIAL          A2618

PRODUCTION   CNC BILLET

TURBINE WHEEL

MX8280

Ⓒ EXD(mm)      58.8

Ⓓ IND(mm)       67.0

TRIM          77

BLADES     11

MATERIAL          K418

PRODUCTION   CAST

COMPRESSOR HOUSING

MX8280

IND(mm)  62.4

EXD(mm)  45.46

A/R   0.54

TURBINE HOUSING

MX8280

IND   47.89

EXD  1JZ

A/R   0.67

Specifically For The 1JZ-GTE Engines. The 450+ HP Bolt On Turbo Kit.

After passing all the extensive extreme testing phases, the long awaited 1JZ turbo is now here! Each component from the turbine, compressor & the center housing has all been designed to deliver the best all round balance of performance. This Turbo comes complete with the special Tomei compressor housing as well as our special Forged Billet Blue Actuator. Both the Torque & Power gains characteristics were made possible from the extensive amount of R&D and testing time that we have invested with the design process. Each component was optimized, without compromise. Completely designed specifically for the 1JZ engine. Designed to deliver great performance for all kinds of conditions, Street, Track and Drift, for an all round "Fun" Performance Turbo Kit.

100% BOLT ON

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
