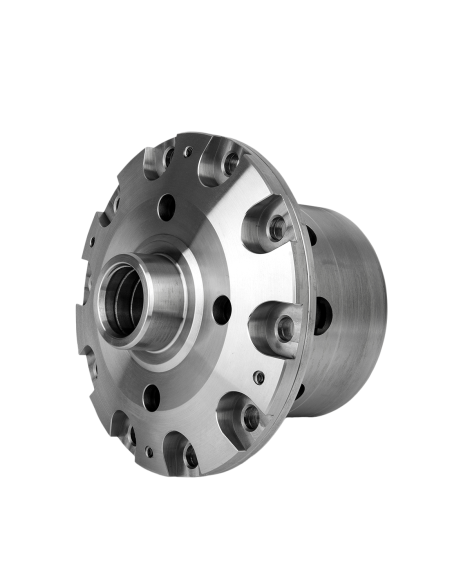

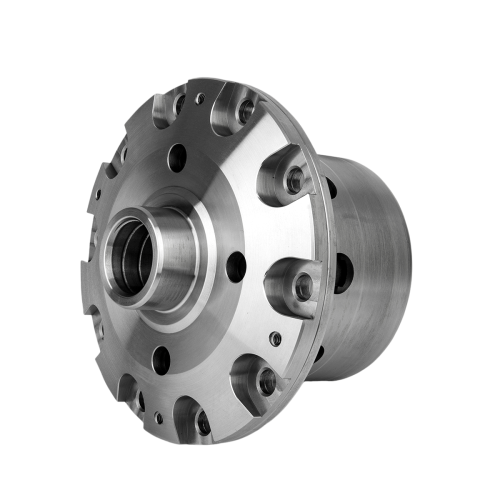

KAAZ LSD Differential 2 Way Rear Super Q for Toyota Supra MK4 JZA80 2JZ 93-96 DAT3010-WPC

Part# DAT3010-WPC

18 Plates for high power levels

2 way

6 speed manual transmission

220mm ring gear size

Rear Differential

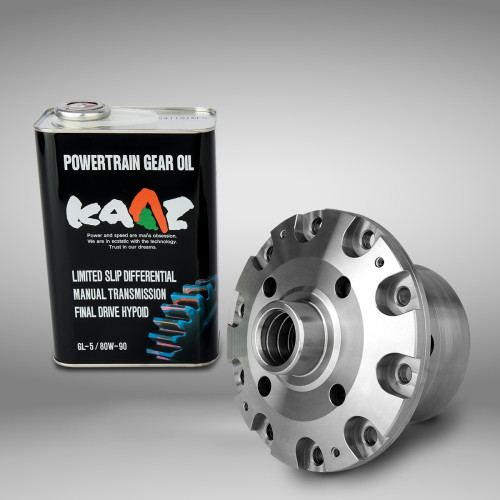

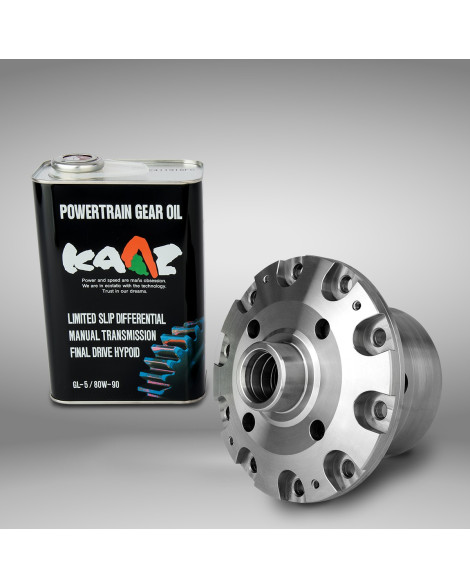

2L Gear oil included

Fits cars equipped with factory LSD option

Confirmed Applications

Toyota Supra MK4 JZA80 2JZ-GTE 93-96 w/220mm ring gear size

*This differential if for a 6 speed manual transmission and a 220mm ring gear size.

2.0-way LSD

Favoured especially in drifting, a 2.0-way LSD delivers the same lockup characteristics under both acceleration and deceleration. Although this setup isn’t forgiving for street driving, it is preferred for drifting as it eases the car’s ability to break traction under braking.

SuperQ (WPC treatment)

Every Kaaz limited-slip differential is offered in a SuperQ variant. SuperQ units feature reduced chattering and smoother engagement for an enhanced driving experience. With the help of WPC metal treatment, SuperQ limited-slip differentials also come with better heat dissipation and longer wear life with no break-in process required. Just like all of Kaaz’s limited-slip differentials, SuperQ units allow for locking rate adjustments.

Technical Information

KAAZ differentials are designed and engineered to be used in competition motorsports. They are supplied from the factory to react quickly and strongly when it reaches the ex-factory preload (100% Locking). This is ideal for smooth, dry tarmac circuit use.

For some drivers/ conditions, a “softer” setting may be required. There are several ways this can be achieved, but the general option is by reducing the amount of friction surfaces. By re-arranging the order of the plates, various options are available depending on the total number of plates in the differential.

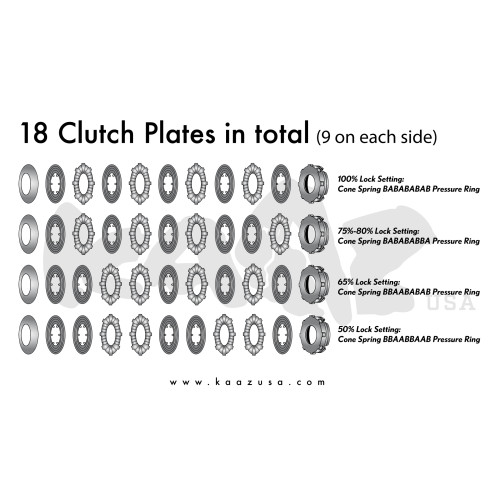

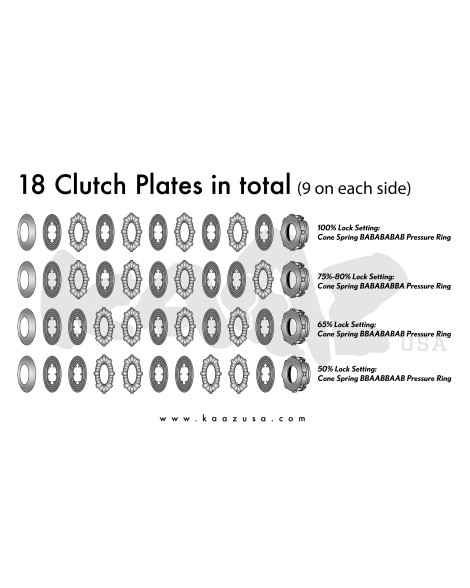

The diagram below shows the stacking option for your application. The differential has the same number of plates on both sides and the plate configuration MUST be the same on both. Below shows just one side.

*The original quantity of plates must be retained, as well as the Belleville (cone) spring washer(s)

VIP Motorsport is a UK & European Dealer of KAAZ LSDs. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
