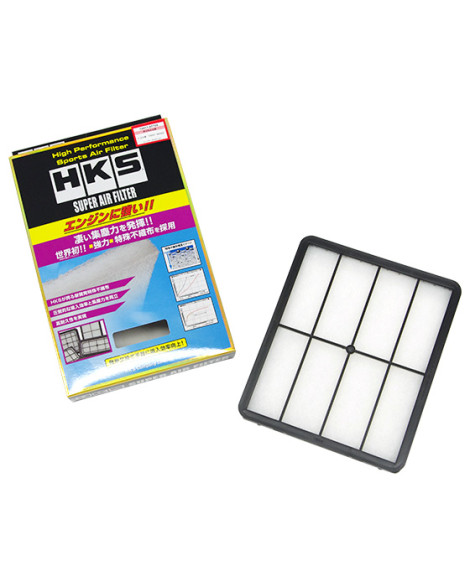

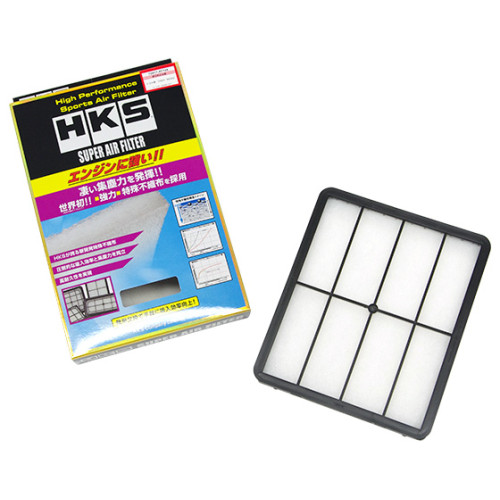

HKS Super Air Filter / Panel Filter for Toyota Chaser / Mark II JZX90/JZX100 / Supra JZA80 / Soarer 70017-AT104

SUPER AIR FILTER

New stock replacement type air filter utilizing newly developed dry non-woven fabric filter.

High dust collection capacity and low resistance are implemented together at a high level.

Newly Developed Dry Non-woven Fabric Filter

The density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught in the most effective way. Optimizing the fiber components reduces the ventilation resistance.

Low Resistance & High Dust Collection Capacity

Even though the intake resistance is reduced, the dust collection capacity is higher than previous model. (Collected more than 95% dust volume during in-house testing) Reliably capturing dust to provide clean air to the engine.

Long-term Low Resistance

Even after long-term use of the filter, the intake resistance stays as low as new.

Filter Structure Comparison

A pleated type sports filter usually collects various sizes of dust on its surface; therefore, air passage becomes narrower which easily causes filter clogging even initial ventilation resistance is low.

HKS Super Air Filter utilizes the density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught gradually which maintains proper air passage resulting in a long product life.

CONFIRMED APPLICATIONS

CROWN     GS151        1G-FE         95/12-99/09

CROWN     JZS153       1JZ-GE        95/12-99/09

CROWN     JZS151       1JZ-GE        95/08-99/09

CROWN     JZS155       2JZ-GE        95/08-99/09

CRESTA      JZX100       1JZ-GTE     96/09-01/07

CRESTA      JZX93         1JZ-GE        92/10-96/08

CRESTA      JZX91         2JZ-GE        92/10-96/08

CRESTA      JZX90         1JZ-GTE     92/10-96/08

CRESTA      JZX90         1JZ-GE        92/10-96/08

SUPRA       JZA80         2JZ-GTE     93/06-02/08

SUPRA       JZA80         2JZ-GE        93/06-02/08

SOARER     JZZ30         1JZ-GTE     91/05-01/03

SOARER     UZZ30        1UZ-FE       91/05-01/03

SOARER     UZZ31        1UZ-FE       91/05-01/03

SOARER     UZZ32        1UZ-FE       91/05-01/03

CHASER     JZX100       1JZ-GTE     96/09-01/07

CHASER     JZX90         1JZ-GTE     92/10-96/08

CHASER     JZX90         1JZ-GE        92/10-96/08

CHASER     JZX91         2JZ-GE        92/10-96/08

CHASER     JZX93         1JZ-GE        92/10-96/08

HILUX SURF        VZN185W 5VZ-FE       95/11-02/10

MARK II     JZX100       1JZ-GTE     96/09-01/07

MARK II     JZX90         1JZ-GTE     92/10-96/08

MARK II     JZX90         1JZ-GE        92/10-96/08

MARK II     JZX93         1JZ-GE        93/10-96/08

MARK II     JZX91         2JZ-GE        92/10-96/08

LAND CRUISER PRADO        VZJ90W      5VZ-FE       96/05-02/10

LAND CRUISER PRADO        VZJ95W      5VZ-FE       96/05-02/10

VIP Motorsport is an official stockist of HKS Exhausts & Products in the UK & Europe. Contact us for a lead time. Generic image may be used – part received may differ!
