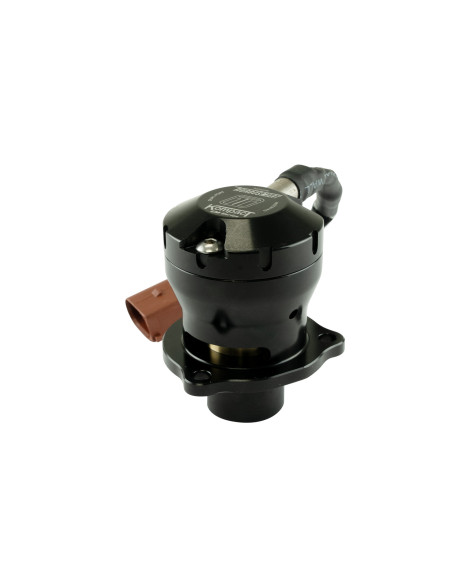

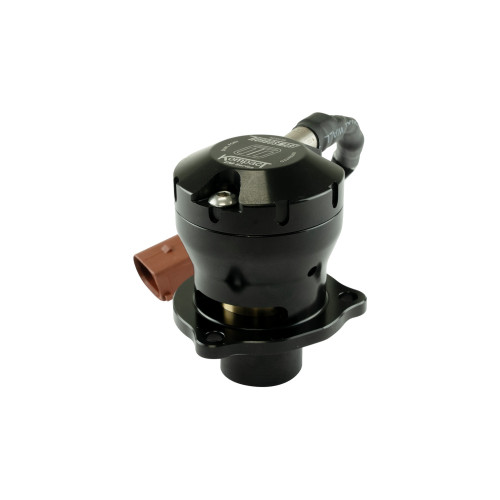

Turbosmart Kompact EM BOV VR1 Dual Port for Most VW / Audi / Seat / Skoda 04+ TS-0223-1063

TS-0223-1063

The Multiple Award-winning Kompact EM Series of Upgraded Blow-Off Valves are the world’s first genuinely plug-and-play Upgrade solution for your factory diverter valve. Unplug and unbolt your OEM Valve, and install a Kompact EM Valve. No adaptors, hoses or extra assembly are required.

The Kompact EM Valve Series from Turbosmart takes the motorsport-proven billet valve technology and adds an onboard proprietary solenoid system and internal pressure control channels for a simple plug & play valve with full OE integration and control. There are no reference hoses, separate solenoids and no fiddly bits – Just bolt-on & plugin!

You can count on unmatched performance & reliability as a direct replacement for your factory diverter valve. The Kompact EM Valves overcome the common faults associated with plastic factory valves through our Boost-Balance Valve Design (The more boost you have, the better it seals), Positive Seal O-Ring on the Piston’s face and Billet Construction. No matter your application, the Kompact EM Series will hold more boost and be more responsive in any environment.

Available in

Plumback / Recirculating: TS-0223-1263

Dual Port / Vent to Atmosphere: TS-0223-1063

Features

Boost-Balance Valve Technology

Patented integrated pressure control

True plug-and-play upgrade

Integrated proprietary high-temperature solenoid valve

Billet construction with high-temperature o-rings

Fitment Available in Plumback or Dual Port options

What’s in the box?

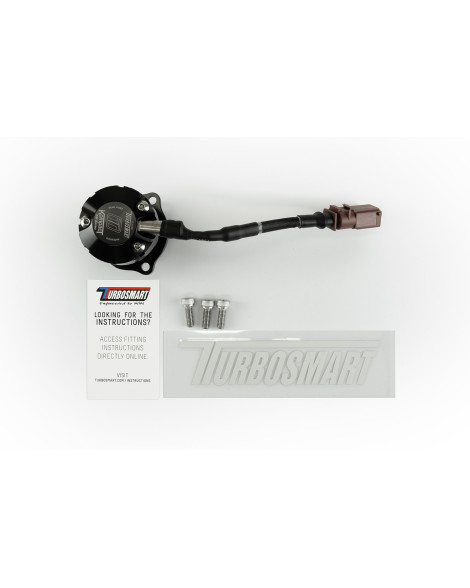

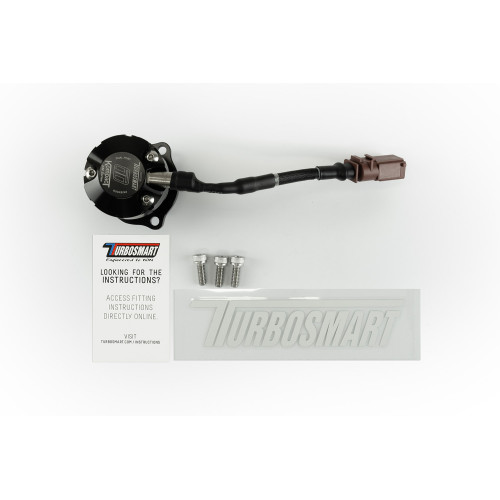

SUPPLIED WITH

Kompact EM Series Diverter Valve

3 x M6 Fasteners

Turbosmart Decal

CONFIRMED FITMENT

Most Petrol Turbo VW / Audi / Seat / Skoda models (2004-Present) with 1.4L/1.6L/1.7L/1.8L/2.0L/2.5L/4.0L TSI & TFSI Engines.

VW: Mk5/Mk6/Mk7 1.4L & 2.0L Golf including GTI & R models, Eos/Amarok/ T-Roc/Beetle/Bora/Passat/Jetta/Polo/Scirocco/Sharan/Tiguan/

Audi: RS3/S3/S4/S5/S6/S7/S8/TTRS/TTs/TT/A1/A3/A4/A5/A6/A8/Q3/Q5

SEAT: Leon/Cupra/Toledo/Exeo/Altea/Alahambra

SKODA: Octavia/Superb/Rapid/Yeti

Unsure if this product is suitable for your car? Please contact us.

FAQs

Why would I upgrade my factory Diverter or Bypass Valve?

Fundamentally, factory Diverter Valves are built to a price point rather than with performance in mind. At Turbosmart, we want you to have the best performance available. Our upgraded valves are designed to overcome factory equipment’s limitations with improved sealing and valve dynamics. A Turbosmart Upgraded Valve will ensure you have all your available boosts with maximum response.

How does the Turbosmart Valve provide performance benefits?

The Turbsmart Range of Direct Replacement Valves use our Unique Boost-Balance Valve Technology, a Positive Seal O-Ring on the Piston Face and are made from Motorsport Proven & Hand Assembled Billet Aluminum. These features ensure the fastest responding valve and incredible boost-holding characteristics in a virtually indestructible valve.

What is the Turbosmart Boost-Balance System?

Our Valves are designed to ‘actuate or open’ via a pressure differential rather than boost alone. This means we can run the lightest possible spring for a super-fast response, but it also means both sides of the piston are subjected to the same boost pressure when accelerating and under load. This means no matter how much boost you run, Turbosmart Valves will not open unless you want them to! You have all your boost pushing it closed at any point in time, PLUS the spring itself!

What is the Turbosmart Positive Seal O-Ring, and why does it matter?

As mentioned above, due to our Boost-Balance technology, the piston of Turbosmart valves is constantly being pushed into the valve seat when accelerating and under load. On Turbosmart valves, unlike others, we use a Viton O-Ring on the face of the valve, which ensures the best possible seal against the body. This seal means maximum boost pressure at all times & improves boost response.

Can I Vacuum or Smoke test my Kompact Valve?

You can vacuum test these valves. However, you will need a hi-flowing mechanical vacuum pump – you cannot use a hand-actuated vacuum pump as these do not replicate the flow your valve would see when fitted to an engine, meaning you will likely achieve nothing except for a ‘False-Positive’ to a leak test. These do not use an O-Ring on the side of the piston and are not based on a diaphragm like the OE equipment; instead, the design focus is on sealing, speed and overall flow. This design and lack of diaphragm or O-Ring also mean you cannot use a smoke test to test or validate a Turbosmart Valve.

How Much Horsepower will these valves handle?

More than you have! Due to the unique Turbosmart Boost-Balance System, you can’t have too much power or boost for the Kompact Range of Vales & at no point will they leak based on ‘Too-Much’ anything. The more boost you run, the better they will seal. With that said, highly modified engines may be able to find the limit of how much these valves can bypass when open & this is the only limit. If you’re at this level, you may consider a remote-mounted valve with more flow potential to avoid audible compressor surge. However, at no point will the valve open or vent due to too much boost or power.
