Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger 803124

Confirmed Applications

Ford Ranger      2WD Hi-Ride 2006-2009 PJ

Ford Ranger      2WD Hi-Ride 2009-2011 PK

Ford Ranger      4WD 2006-2009 PJ

Ford Ranger      4WD 2009-2011 PK

Mazda       B Series, Including Bravo    1987-2006, 4wd B2500 & B2600

Mazda       B Series, Including Bravo    2005-2006, 4wd B4000

Mazda       BT50 2WD Hi-Ride 2006-2011 UN

Mazda       BT50 4WD 2006-2011 UN

Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PK

Improved looks and ground clearance.

Are you looking to raise your Ford Ranger?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder shocks, front torsion bars, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Entry level Lift kit, and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 35mm Bore

Premium Grade Steel Coils

Vehicle Height Information

Front: Adjustable as standard

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

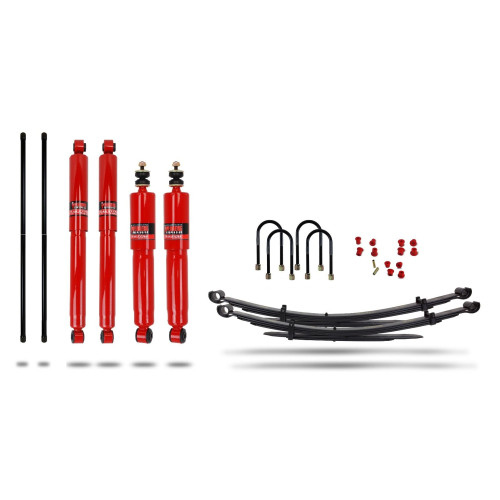

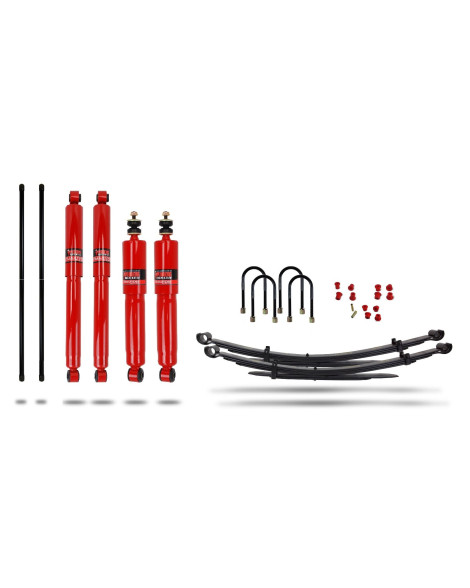

Contents of Kit 803124

4381 - U-Bolt 84 x 14 x 195mm

4390 - U/Bolt 88 x 14 x 220mm

4725 - Pedders TrakRyder Torsion Bar-1025mm

6288 - Pedders Trakryder Leaf Spring

9164 - Pedders Trakryder Gas 4x4 Shock

9188 - Pedders Trakryder Gas 4x4 Shock

EP8407 - Urethane Leaf Spring Bush

EP8408 - Urethane Leaf Spring Bush

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
