Pedders Comfort Improvement Kit. Rear only. Ford Ranger, PX1, 2 & 3 803260

Improved ride comfort.

Are you looking to improve the ride comfort of your Ranger?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Comfort Improvement Kit, and is designed primarily to improve the unladen/lightly laden ride comfort by reducing the harshness transmitted from the rear on the standard vehicle.. This kit is a “rear only” kit. The front suspension remains unchanged.

If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit does NOT reduce the load carrying ability compared to the standard Ford Ranger rear spring. However, our rear spring, combined with our specially valved shock, allows for an improvement in the unladen ride, removing some of the harshness that can be felt in the standard vehicle on poor road surfaces. For more information on how we achieve this, please see our technical pages.

These components replace the original items. No other modifications to the vehicle are necessary.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Improved ride comfort

Sintered Iron Piston Shocks with Large 40mm Bore

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: Standard

Rear: Standard

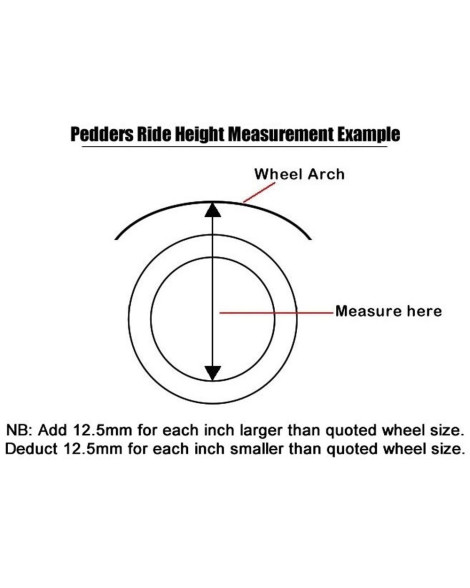

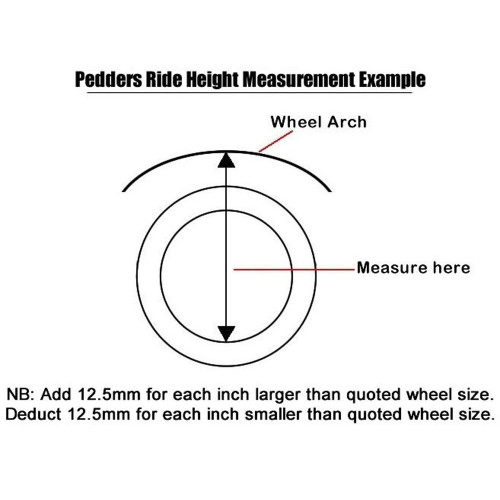

Notes: Heights should be measured as shown in the secondary picture.

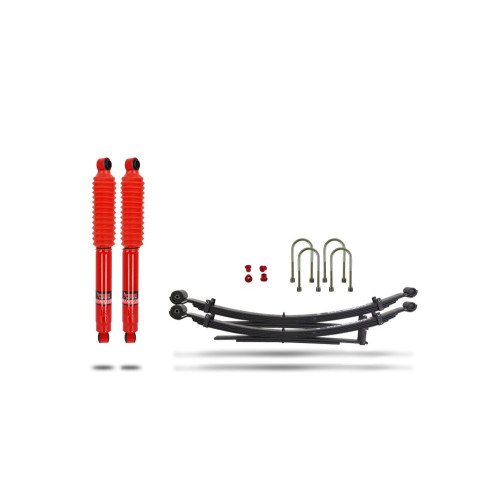

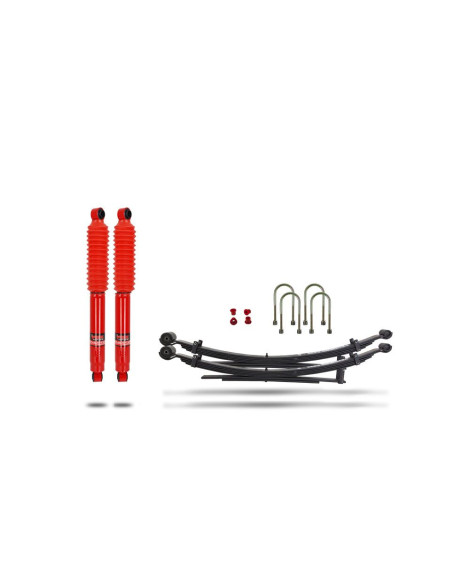

Contents of Kit 803260 (Pedders Part Numbers)

262098 x 2 - Pedders Rear Spring

153564 x 2 - Pedders Foam Cell Rear Shock

EP8412 x 1 - Pedders Urethane Spring Eye Bushes

EP8415 x 1- Pedders Urethane Lower Shackle Bushes

4392 x 4 - Pedders U bolt

Confirmed Applications

Ford Ranger      2WD Hi-Ride 2011-2015 PX

Ford Ranger      4WD 2011-2015 PX

Ford Ranger      4WD 2015-6/2018 PX MkII

Ford Ranger      4WD 07/2018 to 07/2019 PX MkIII 2.2 & 3.2

Ford Ranger      4WD 07/2019 on PX MkIII 2.0 Model ONLY

Ford Ranger      4WD 07/2019 on PX MkIII 3.2 Wildtrack Model ONLY

Ford Ranger      4WD 07/2018 to 07/2019 PX MkIII

Ford Ranger      4WD 07/2019 on PX MkIII

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
