Pedders 1.75 Inch Suspension Lift Kit. With Improved Ride and Assembled Struts. Ford Ranger, PX MkIII 803367

Improved looks, ride comfort and ground clearance.

Are you looking to raise your Ford Ranger? Want a better ride?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Premium Lift kit, and is designed primarily to raise the vehicle and improve the ride on vehicles that do not normally carry a great deal of weight. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit does NOT reduce the load carrying ability compared to the standard Ford Ranger rear spring. However, our rear spring, combined with our specially valved shock, allows for an improvement in the unladen ride, removing some of the harshness that can be felt in the standard vehicle on poor road surfaces. For more information on how we achieve this, please see our technical pages.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Improved ride comfort

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 840mm with 17 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

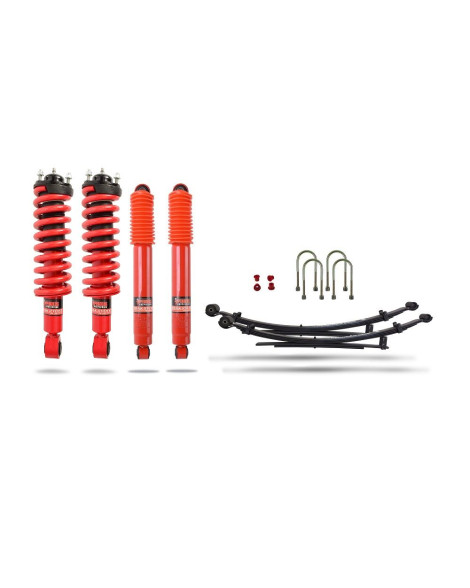

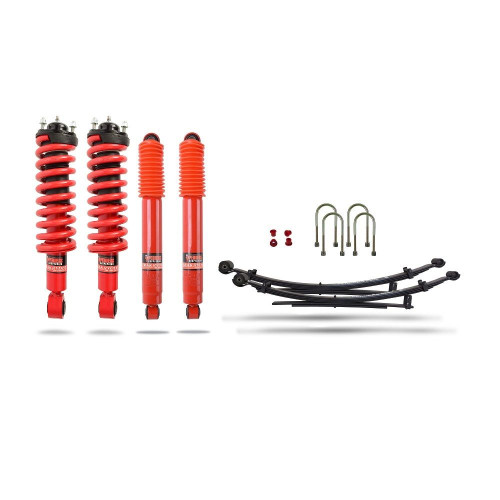

Contents of Kit 803122 (Pedders Part Numbers)

807221L x 1 - Pedders Foam Cell Ezifit Front Strut

807221R x 1- Pedders Foam Cell Ezifit Front Strut

6298 x 2 - Pedders Heavy Duty Rear Spring

153564 x 2 - Pedders Foam Cell Rear Shock

EP8415 x 1- Pedders Urethane Lower Shackle Bushes

4392 x 4 - Pedders U bolt

Confirmed Applications

Ford Ranger      4WD 07/2019 on PX MkIII 2.0 Model ONLY

Ford Ranger      4WD 07/2019 on PX MkIII 3.2 Wildtrack Model ONLY

Ford Ranger      4WD 07/2019 on PX MkIII

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
