DBA Front Brake Kit (XP Pads & Discs) for Ford Mustang 5.0L V8 GT 2015-2023 DBA42166S-9021XP

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

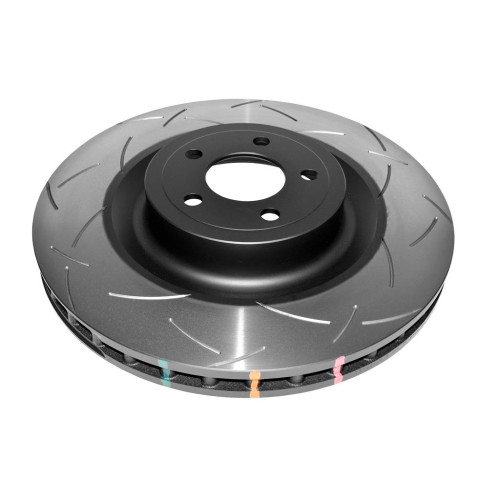

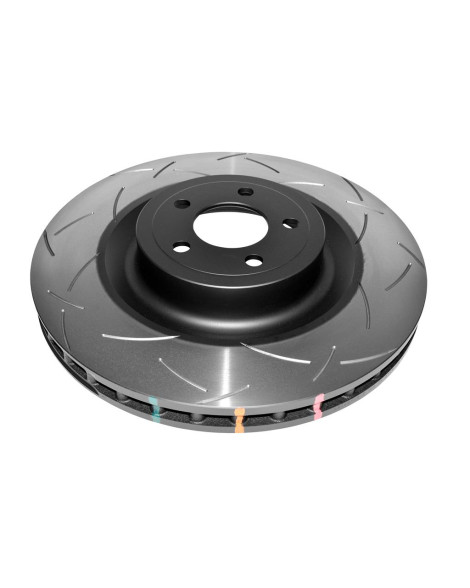

TECHNICAL INFORMATION DISCS:

Diameter [mm]: 380

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 71

Minimum Thickness [mm]: 32

Thickness [mm]: 34

Height [mm]: 64

Stage: Stage 4

Total Weight [kg]: 15.25

PADS

Width [mm]: 189.6

Height [mm]: 58.2

Pad thickness [mm]: 15.5

FMSI: 9021-D1792

OEM: FR3Z2001H

Axle: Front

ECE R90 Number: E11 R90-02A01584/53206

Total Weight [kg]: 3.9

Compatible Cars

FORD Mustang (6th Generation) 2015- 5.0 416BHP (2015-) Front Brake Caliper: Brembo

DBA BRAKE KIT

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA42166S-9021XP

DBA42166S - 4000 series - T3

DB9021XP - Brake Pads Xtreme Performance ECE R90 certified | Front Axle

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
