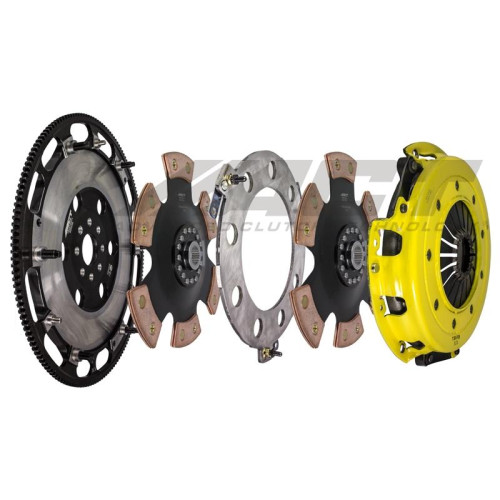

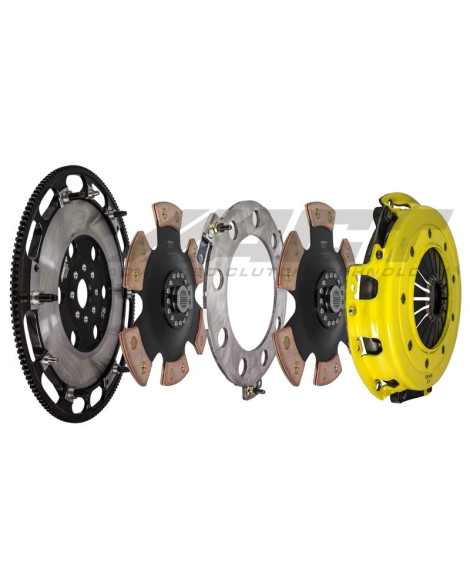

T3R-F05 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Feel: Heavy to very heavy pedal effort, aggressive engagement, mild to moderate gear rattle;

Life: Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for race use only;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Specifications

Warranty  12 Months

Product Weight (lbs.) 43.6

Input Shaft Diameter (Inches)     1

Spline Count      23

Disc Type  Rigid Race Disc

Friction Surface Diameter (Inches)      10.5

Friction Surface Diameter (mm) 267

SFI     1.2

Flywheel Tooth Count        164

Torque Capacity Over OE  213%

Torque Capacity (ft/lbs.)     1496

ItemCodeDesc   Twin Disc MaXX XT Race Kit

Disc Material     Ceramic

Verify that this kit's crank bolt pattern and spline count matches your vehicle.

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
