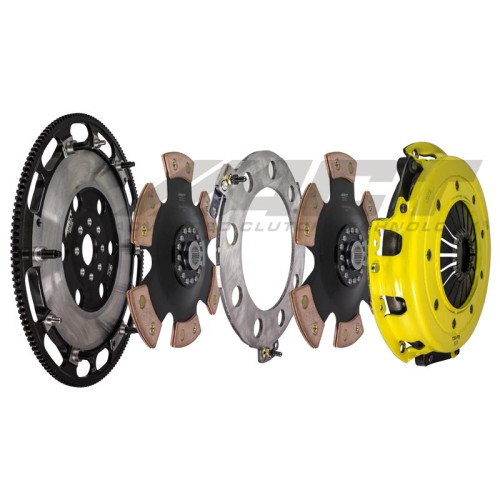

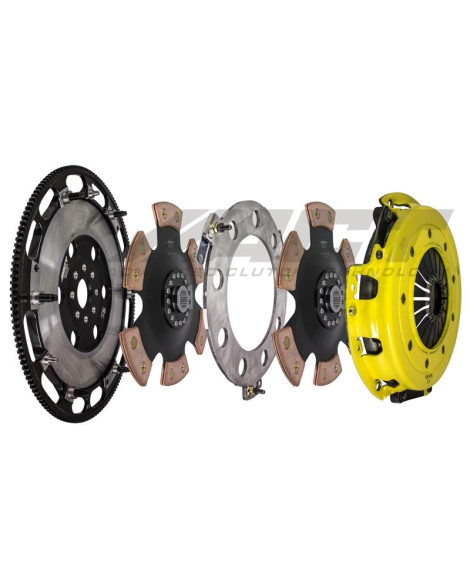

T2R-F05 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Feel: Moderate to heavy pedal effort, quick shifts, aggressive engagement, OE to moderate gear rattle;

Life: Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for race use only;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Specifications

Warranty  12 Months

Product Weight (lbs.) 43.7

Input Shaft Diameter (Inches)     1

Spline Count      23

Disc Type  Rigid Race Disc

Friction Surface Diameter (Inches)      10.5

Friction Surface Diameter (mm) 267

SFI     1.2

Flywheel Tooth Count        164

Torque Capacity Over OE  164%

Torque Capacity (ft/lbs.)     1263

ItemCodeDesc   Twin Disc XT Race Kit

Disc Material     Ceramic

Verify that this kit's crank bolt pattern and spline count matches your vehicle.
