DBA XP Brake Kit Front for Honda Civic Type R FK8 17-21 / FK2 Type R 15-17 - DBA43700S-1678XP

Ideal for spirited driving

High quality, high performance to suit your requirements

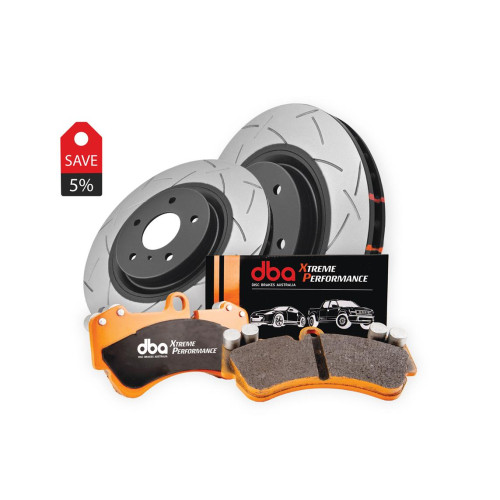

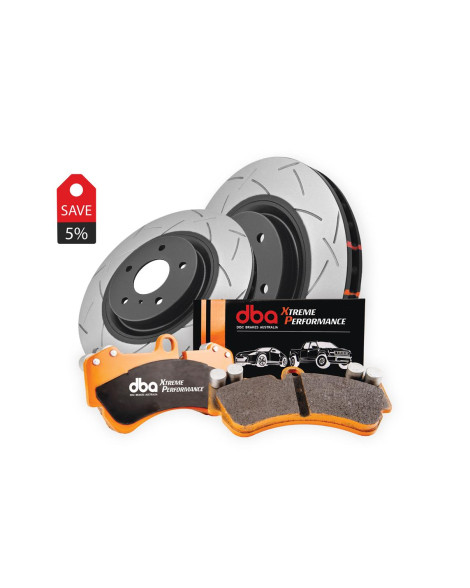

Price includes 2 brake discs & Front Pads

TECHNICAL INFORMATION:

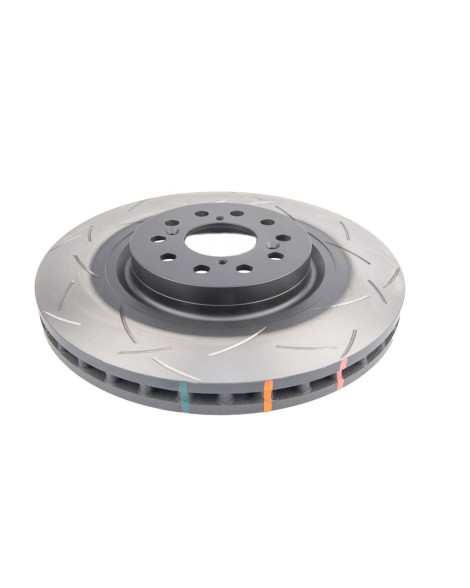

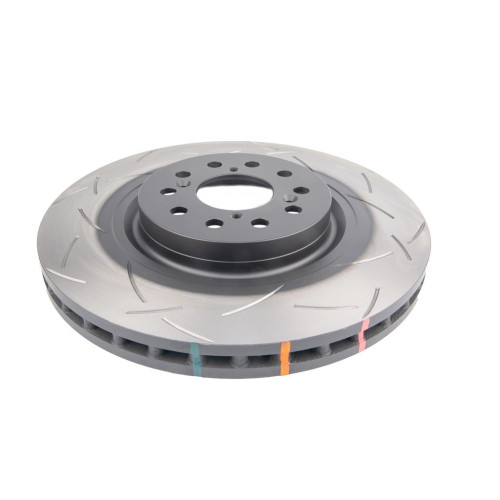

DISCS

Diameter [mm]:350

Disc Vent:Kangaroo Paw

Number of Holes:5

Minimum Thickness [mm]:30

Thickness [mm]:32

Height [mm]:55

Stage:Stage 4

ECE R90 number:E11*90R02/06*60527*00

Axle:Front

Weight [kg]:12.9

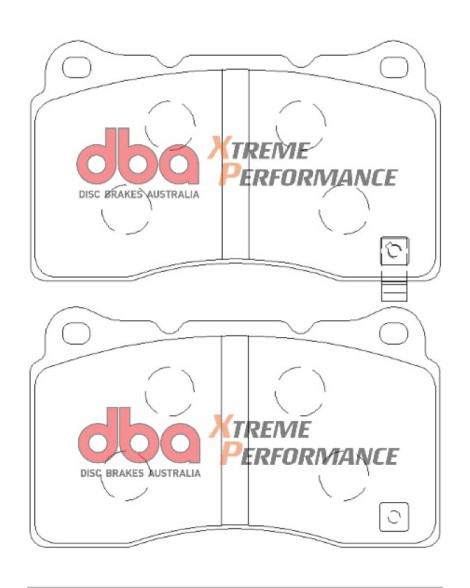

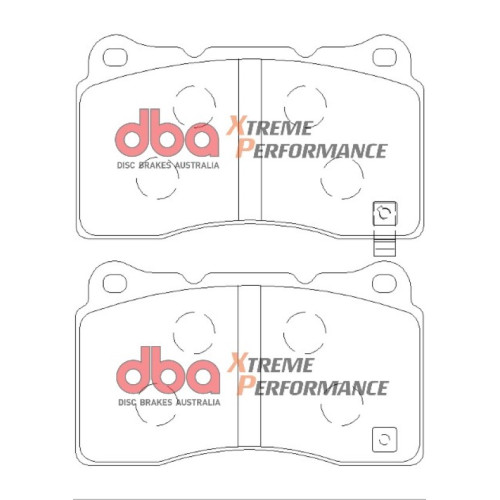

PADS

Width [mm]:131.8

Height [mm]:77.3

Pad thickness [mm]:14

FMSI:7902-D1001

OEM:26296FE100

Axle:Front

ECE R90 Number:E11 R90-02A01584/49928

Axle:Front

Total Weight [kg]:28.08

Compatible Cars

HONDA Civic (10th Gen) FK8 2017- 2.0 Turbo Type-R 320BHP (2017-) Front Brake Caliper: Brembo

HONDA Civic (9th Gen) FK2 2015-2017 2.0 Turbo Type-R 310BHP (2015-2017) Front Brake Caliper: Brembo

DBA T3 Performance Brake Discs

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

DBA BRAKE PADS – XTREME PERFORMACE (XP)

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD’s.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

DBA Street Performance part numbers are denoted by the suffix (XP).

Specifications

Semi-metallic, carbon fibre friction material

G-G Class Friction (0.45 average mu from low to high temperatures)

Excellent high temperature performance

Optimal braking consistency up to 550ºC (1022ºF)

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
