Xtreme Stage 1 Clutch Kit 280ft/lbs KNI24003-1A for Nissan S13 S14 S15 200SX SR20DET

Confirmed Applications

Nissan S13 180SX/200SX 180SX SR20DET

Nissan S14 200SX/Silvia S14 SR20DET

Specifications

Torque (Nm) Inc FOS 380

Torque (Ftlbs) Inc FOS 280

Flywheel Step FLAT

Clutch Disc Diameter (mm) 240

Clutch Disc Spline Count 24

Clutch Disc Spline Diameter (mm) 25.4

Recommended for Street Performance

Disc Type Sprung

Friction Material Organic

Clamping Force % Increase 38%

Spigot Bush / Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Stage Stage 1

Weight [KG]: 8.9

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 380Nm

Clamp load 800kg 35% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

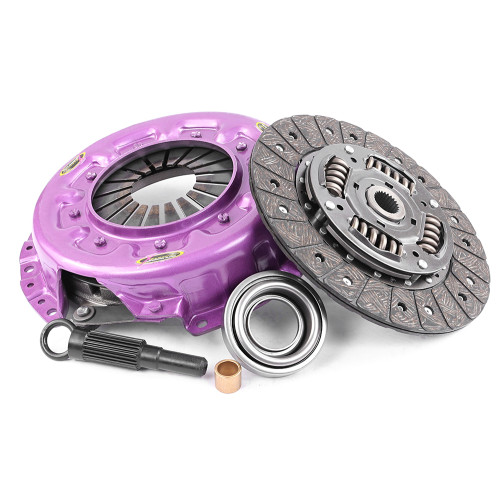

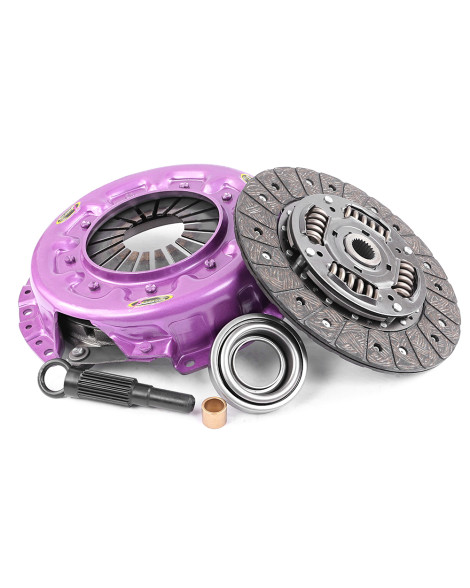

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
