ACT CLUTCH NS1-HDG6 - HD/Race Sprung 6 Pad

SKU NS1-HDG6

Specifications

Item Description HD/Race Sprung 6 Pad

Product Weight (lbs.) 16.8

Torque Capacity (ft/lbs.) 475

Torque Capacity Over OE 90%

Disc Material Ceramic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1

Pressure Plate Type Heavy Duty

NS1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Description

Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life Moderate friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use Recommended for high horsepower street or race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Nissan Bluebird 90-98 AWD (JDM)

Nissan Silvia 89-98 SR20DET RWD 6Spd/5Spd

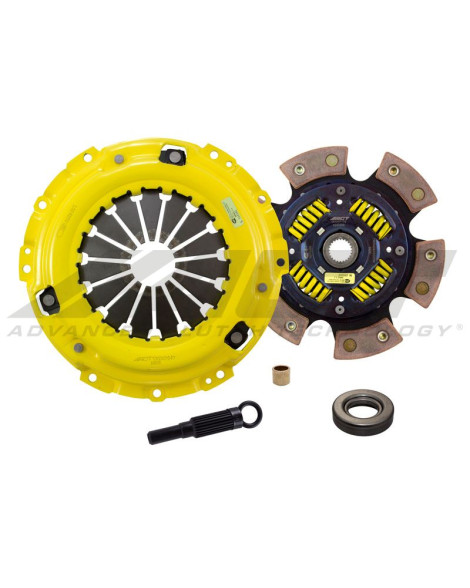

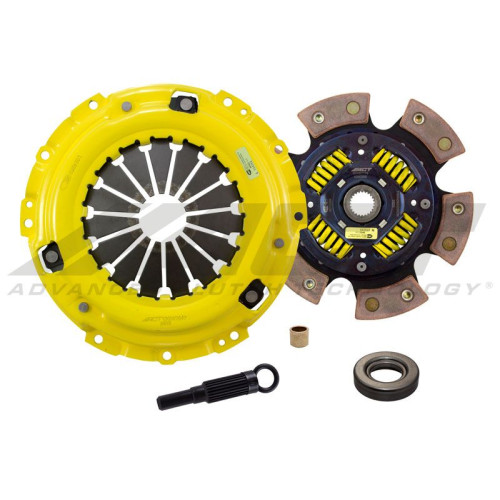

Kit Contents

6240306 - 6 Pad Sprung Race Disc

AT01 - Alignment Tool

N015 - Heavy Duty Pressure Plate

PB1012 - Pilot Bushing

RB810 - Release Bearing

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
