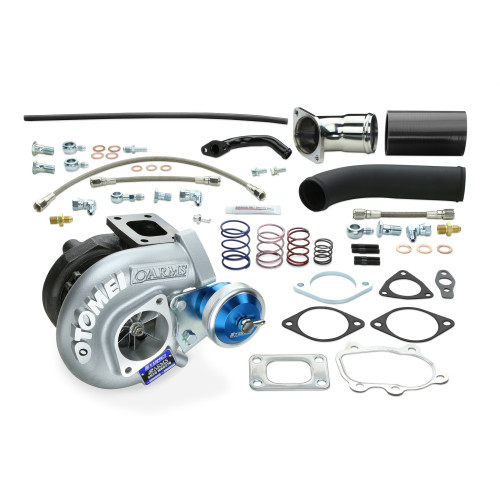

SR20DET MX7960 Tomei Turbine Kit

400HP P/N TB401A-NS08A

CNC BILLET COMPRESSOR WHEEL

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with larger surface area for significantly improved airflow and turbo spool.

MULTI RATE BILLET ACTUATOR

Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

BEARING TYPE  JOURNAL BEARING

INITIAL BOOST SETTING

MX7960     1.0 kgf/cm2

COMPRESSOR WHEEL

MX7960

Ⓐ IND(mm)       52.6

Ⓑ EXD(mm)      68.0

TRIM          60

BLADES     6

MATERIAL          A2618

PRODUCTION   CNC BILLET

TURBINE WHEEL

MX7960

Ⓒ EXD(mm)      54.0

Ⓓ IND(mm)       61.0

TRIM          79

BLADES     11

MATERIAL          K418

PRODUCTION   CAST

COMPRESSOR HOUSING

MX7960

IND(mm)  53.5

EXD(mm)  38.75

A/R   0.62

TURBINE HOUSING

MX7960

IND   T25

EXD  SR20DET

A/R   0.57

M8270 FOR BIG POWER 450PS+ / M7960 FOR RESPONSE 400PS+

Even to this day, TOMEI is listening to what our devoted SR user’s requests. So we have invested additional time and funds into our continued efforts with R&D on the SR20 engine. All to improve torque, response, durable power for drivability to extract outstanding performance at an affordable range that is within everyone’s budgets.

With the latest in our turbo developments, we have made various designs and have changed everything. From housings to actuators to the turbine blades, everything! All this from several master prototypes with added variations.

Finally this has produced the 2 models that we are releasing this month! More room for choices to suit your SR tuning options.

M7960

This model is designed for low to mid range torque characteristics. The response is immediate with the light use of the throttle. Max boost is achieved at 4000 RPM. Best suited for street tuned cars and weekend track machines. Great for drifting, and grip race applications, with the best driving characteristics.

100% BOLT ON

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.
