Pedders 4 Inch Suspension Lift Kit for Nissan Patrol Y61 LWB Non-ABS 3.0 Di 1997-2016 803098

Pedders 4 Inch Suspension Lift Kit. Nissan Patrol, Y61, LWB, NON-ABS 3.0di

When you're after a 4 inch lift kit specifically designed to cater for and improve the articulation of your Patrol, you can count on Pedders to provide the right suspension lift kit.

This kit features our excellent Pedders Foam Cell Shocks at the front and rear. Also included are 4 new coil springs and a set of our Rubber Castor correction bushes. Additionally it comes with the necessary anti-roll bar links, brake hoses, panhard rods and other chassis parts. Everything you need to complete the job.

The dimensions quoted assume a standard vehicle. If you have additional equipment on board such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

NOTE: This kit suits RIGHT hand drive vehicles. We can supply also for LEFT hand drive vehicles. Please contact us for details.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

4 Inch Lift Kit

Increased Off-Road Ground Clearance

Pedders Foam Cell Shocks

Premium Grade Steel Coils

Full Kit with all required parts

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 4 inches higher than standard.

Rear: 4 inches higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

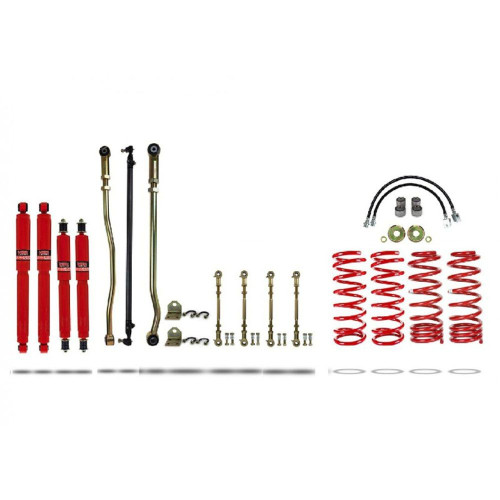

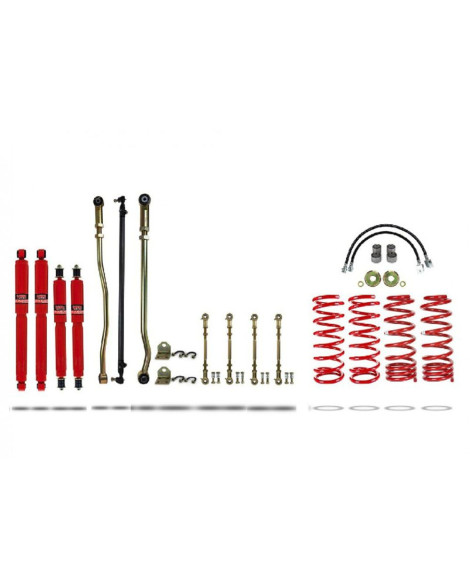

Contents of Kit 803098 (Pedders Part Numbers)

9549LT x 2 - Pedders Long Travel Foam Cell Front Shocks

290078L x 1 - Pedders Front Spring Left

290078R x 1 - Pedders Front Spring Right

435039 x 1 – Leading Arm Spacer Kit

424400x 2 - Anti Roll Bar Link

PDL5002 x 1 - Adjustable Drag Link

464605 x 1 - Panhard Rod

9550LT x 2 - Pedders Long Travel Foam Cell Rear Shocks

290079L x 1 - Pedders Rear Spring Left

290079R x 1 - Pedders Rear Spring Right

424401 x 2 - Anti Roll Bar Link Extension

464606 x 1 – Panhard Rod

5501 x 1 – Extended Brake Hose Kit

5802 x 1 - Pedders Rubber Castor Correction Bush Kit

Confirmed Applications

Nissan       Patrol        1997-2001 GU (Y61) 5 Door Wagon

Nissan       Patrol        2002-2016 GUII (Y61) 5 Door Wagon

FITS NON-ABS 3.0di Models ONLY.

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
