Pedders Extra Heavy Duty Load Carrying & Towing Suspension Kit. Constant load. Mercedes X-Class 803277

Improved load carrying and towing ability.

Do you use your X-Class for load carrying and/or towing and finding it not up to the task as you hoped?

Then Pedders Suspension have the solutions for you.

The standard X-Class, as supplied, sits level when unladen, unlike most pick-ups which sit “nose down”. Combined with relatively soft suspension, carrying a meaningful load results in a very “tail down” stance, which as well as looking as though overloaded, also upsets the balance of the vehicle.

Pedders recognise this and have produced a range of load carrying kits to suit all uses from occasional load carrying to permanently heavily laden. Below is a list of the kits and the purpose they are best suited to. If you are still not which kit to choose, or have further questions, then please do get in touch with one of our team here at Pedders who will be able to assist you

803262. Pedders Heavy Duty Load Carrying & Towing Kit.

This kit uses an uprated rear spring, progressively wound to retain ride comfort, and approx. 30-35mm higher than standard. This kit is ideal for vehicles which are operated both unladen and moderately laden, without a canopy and tow bar. Ride comfort remains good in the unladen condition.

803277. Pedders Extra Heavy Duty Load Carrying & Towing Kit

Very similar to the kit above, but uses a slightly stronger rear spring and is better suited to vehicles which are operated both unladen and moderately laden WITH a canopy and tow bar. Ride comfort remains good in the unladen condition.

803283. Pedders Super Heavy Duty Load Carrying & Towing Kit

This kit is specifically designed for vehicles that are permanently laden. Pedders recommend a minimum of at least 300KG in the vehicle at all times. Operation in the unladen condition will result in a ride firmer than is desirable.

803263. Pedders Heavy Duty Variable Load Suspension Kit.

This kit utilises an airbag kit and a pair of shocks. It retains the standard rear springs so both height and ride comfort are unaffected when operated in the unladen condition. When load is carried, the bags can be inflated using an airline (the same as used to inflate your tyres). This kit is suited to those who only occasionally carry load, but significant weight when doing so, but mostly run unladen.

803265. Pedders Extra Heavy Duty Variable Load Suspension Kit.

This kit utilises an airbag kit & uprated rear springs as well as a pair of shocks. This kit uses an uprated rear spring, progressively wound to retain ride comfort, and approx. 30-35mm higher than standard. Ride comfort remains good in the unladen condition. The addition of an airbag kit means that, when heavy loads are carried, the bags can be inflated using an airline (the same as used to inflate your tyres). This kit is suited to those who operate their vehicle at opposite extremes, i.e., completely unladen, and very heavily loaded.

These components replace the original items. No other modifications to the vehicle are necessary.

Do you have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

30-35mm raise (rear)

Improved load carrying and towing

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: N/A

Rear: Approx. 30-35mm higher than standard dependant on load.

Notes: Heights should be measured as shown in the secondary picture.

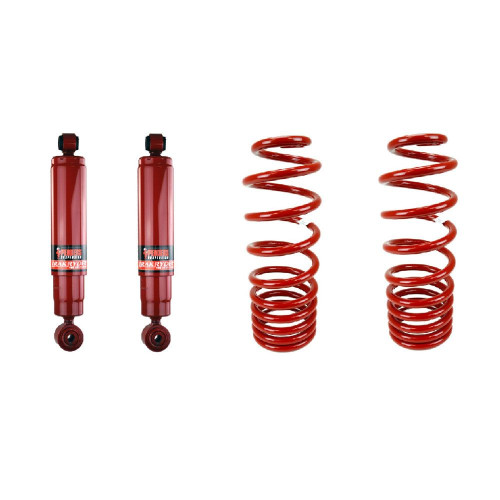

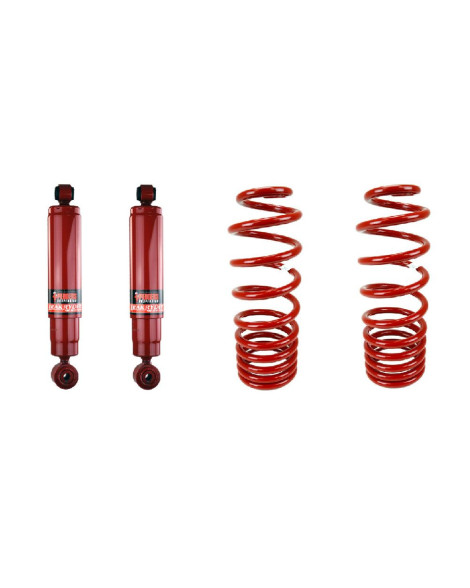

Contents of Kit 803277 (Pedders Part Numbers)

151238 x 2 - Pedders Foam Cell Shock

280165 x 2 Pedders Heavy Duty Rear Spring

Confirmed Applications

Mercedes-Benz X-Class       2017 on X220d - 2.3lt 4cyl TD 4 Door Cab Chassis

Mercedes-Benz X-Class       2017 on X220d - 2.3lt 4cyl TTD 4 Door Cab Chassis

Mercedes-Benz X-Class       2017 on X220d - 2.3lt 4cyl TD 4 Door pick-up

Mercedes-Benz X-Class       2017 on X220d - 2.3lt 4cyl TTD 4 Door pick-up

Mercedes-Benz X-Class       2017 on X250d - 2.3lt 4cyl TD 4 Door Cab Chassis

Mercedes-Benz X-Class       2017 on X250d - 2.3lt 4cyl TTD 4 Door Cab Chassis

Mercedes-Benz X-Class       2017 on X250d - 2.3lt 4cyl TD 4 Door Pick-up

Mercedes-Benz X-Class       2017 on X250d - 2.3lt 4cyl TTD 4 Door Pick-up

Mercedes-Benz X-Class       2018 on X350d - 3.0 V6 TD 4 Door Pick-up

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
