DBA Front SP Brake Kit for Toyota GT86 / GR86 / Subaru BRZ 2012+ DBA650S-1491SP

DBA650S-1491SP - Brake Kit (2 x DBA 650S + DB1491SP)

Upgrade over OE

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

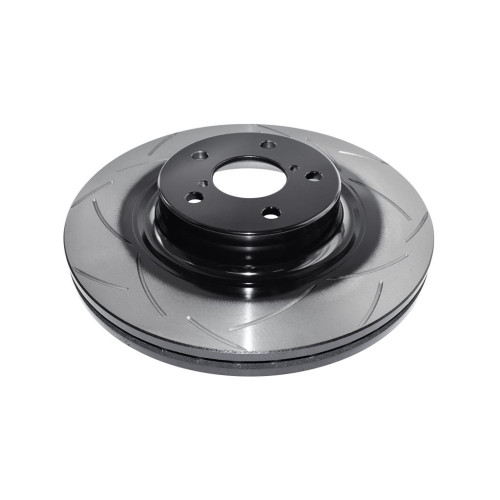

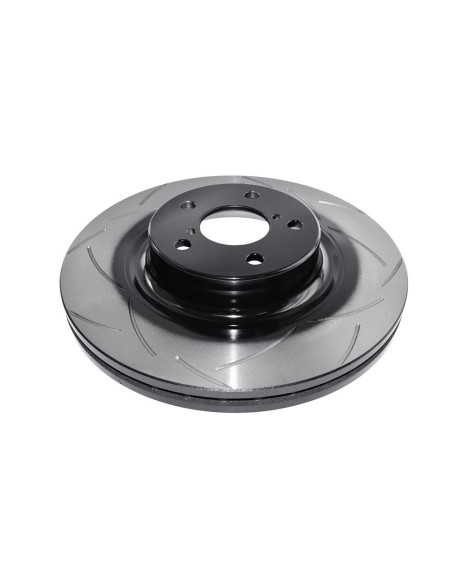

DISCS

Diameter [mm]: 294

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 22

Thickness [mm]: 24

Height [mm]: 57

Pitch Circle [mm]: 100

Stage: Stage 2

Total Weight [kg]: 7.74

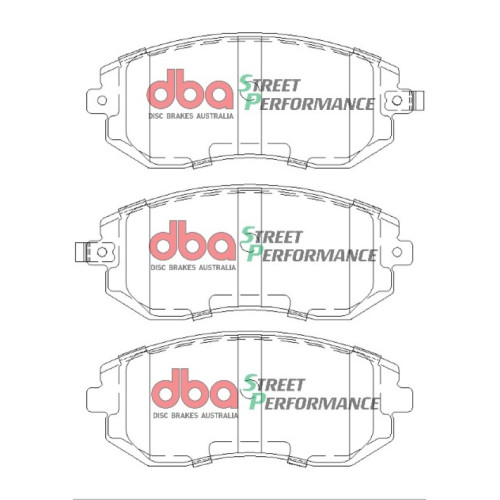

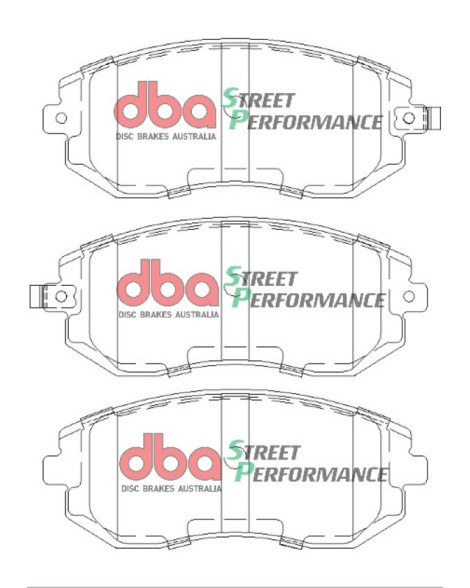

PADS

Width [mm]: 137.1

Height [mm]: 56.8

Pad thickness [mm]: 16.8

FMSI: 7830-D929

OEM: 26296-FE020

Axle: Front

ECE R90 Number: E11 90R-02A01583/53188

Total Weight [kg]: 1.64

CONFIRMED APPLICATIONS

SUBARU    BRZ   2012-2022 2.0 200BHP (2012-2022)      Front

SUBARU    BRZ   2012-2022 2.0 200BHP (2012-2022)      Front

SUBARU    Forester    2003-2004 2.5 (2003-2004) Front

SUBARU    Forester    2004-2008 2.5 (2004-2008) Front

SUBARU    Forester    2004-2008 2.5 Turbo (2004-2008) Front

SUBARU    Forester    2008-2013 2.0 TD (2008-2013)     Front

SUBARU    Forester    2013-2018 2.0 150BHP (2013-2018)      Front

SUBARU    Forester    2013-2018 2.0 TD 147BHP (2013-2018) Front

SUBARU    Forester SG5      2002-2003 2.0 Turbo (2002-2003) Front

SUBARU    Forester SG5      2003-2008 2.0 Turbo (2003-2008) Front

SUBARU    Impreza    2007-2008 2.5 Turbo WRX (2007-2008) Front

SUBARU    Impreza    2008-2012 2.5 Turbo WRX-S (2008-2012)      Front

SUBARU    Impreza    2009-2011 2.0 TD (2009-2011)     Front

SUBARU    Impreza    2011-2012 2.0 TD (2011-2012)     Front

SUBARU    Legacy       2003-2009 2.5 165BHP (2003-2009)      Front

SUBARU    Legacy       2003-2009 2.5 165BHP (2003-2009)      Front

SUBARU    Legacy       2007-2009 2.5 173BHP (2007-2009)      Front

SUBARU    Legacy       2009-2014 2.5 167BHP (2009-2014)      Front

SUBARU    Legacy BLD         2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Legacy BPD        2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Legacy BRD        2009-2014 2.0 TD 150BHP (2009-2014) Front

SUBARU    Outback    2003-2005 2.5 163BHP (2003-2005)      Front

SUBARU    Outback    2003-2010 3.0 245BHP (2003-2010)      Front

SUBARU    Outback    2006-2009 2.5 173BHP (2006-2009)      Front

SUBARU    Outback    2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Outback    2009-2014 2.0 150BHP (2009-2014)      Front

SUBARU    Outback    2009-2014 2.0 TD 150BHP (2009-2014) Front

SUBARU    Outback    2009-2014 2.5 165BHP (2009-2014)      Front

SUBARU    XV     2012-2017 1.6 (2012-2017) Front

SUBARU    XV     2012-2017 2.0 (2012-2017) Front

SUBARU    XV     2012-2017 2.0 TD (2012-2017)     Front

TOYOTA    GT86 2012-2022 2.0 200BHP (2012-2022)      Front

TOYOTA    GT86 2012-2022 2.0 200BHP (2012-2022)      Front

Note: These discs fit all GT86 except the Performance Pack Edition with Brembo Brakes and a few rare 2016 Primo models which had 277mm front and 286mm solid rear discs. If this affects you please check your discs sizes.

DBA’s New Brake kit of T2 Street series slotted rotors and Street Performance (SP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake discs and pads. DBA Street Performance brake pads are the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

DBA recommend Street Performance brake pads and T2 discs for daily driver and performance vehicles, 4WD’s and SUV’s. They are also compatible with light commercial and trade vehicles.

Specifications:

Daily Driver Premium Brake Kit

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T2 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA pads: Semi-metallic friction material

DBA pads: F-F class friction (0.35 average mu from low to high temperatures)

DBA pads: Optimal braking consistency up to 438℃ (820℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

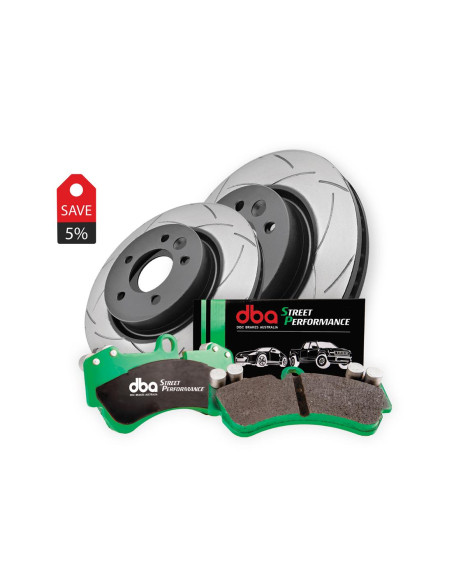

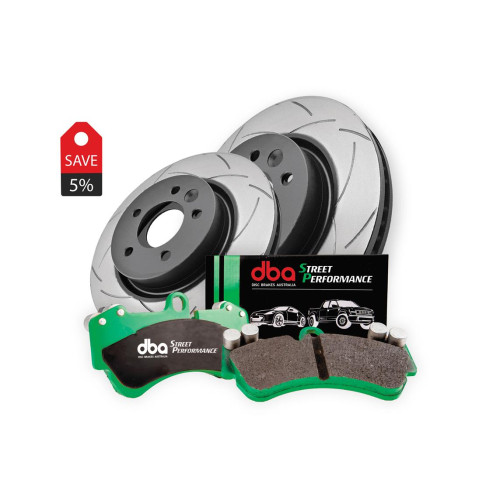

Contents of Kit DBA650S-1491SP

DB1491SP - Brake Pads Street Performance ECE R90 certified | Front Axle

DBA650S - Street Series - T2

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
